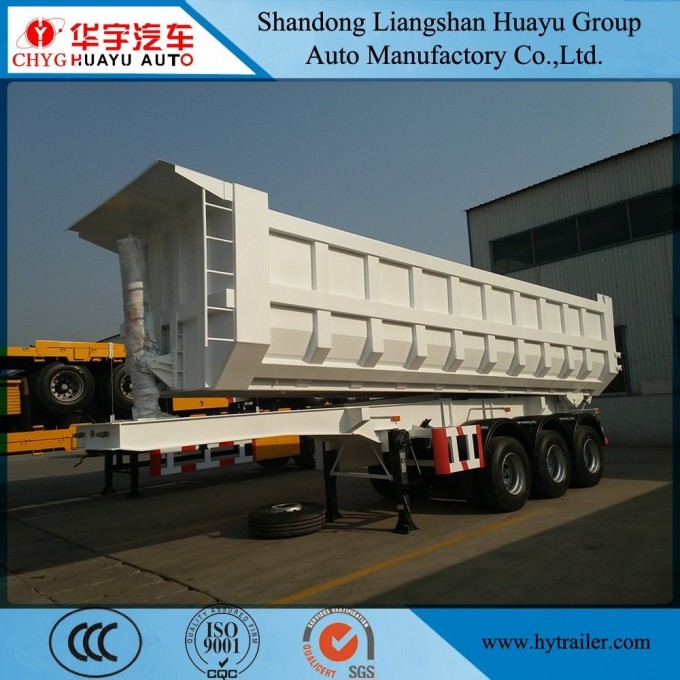

3 Axle Heavy Duty Rear Dump Truck Semi Trailer with Hyva Cylinder for Sand/Stone/Coal Transport

3 Axle Heavy Duty Rear Dump Truck Semi Trailer with Hyva Cylinder for sand/stone/coal transport
Trailer Details show:

Introduction of production process
A.Steel auto cutting
B.Main beam autosubmerged arc welding
C.chassis reversal
D.shot blasting for rust cleaning
E,F.Welding by experienced worker
G.Final cleaningwelding slag
H.Dust-free painting


Specifacition

Tare weight	according to requirements
Size	according to requirements
Payload	40T
Main beam	Heavy duty and extra durability designed Ibeam; opting for high tensile steel T700, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height500mm;bottom flange14mm,width 140mm
Side beam	standard
Cross member	standard
Floor	8mm
Side wall	height 1300mm thickness 6mm
Cylinder	HYVA brand
Axle	3 axle FUWAbrand 13T
Suspension	American type suspension
Leaf spring	10pcs*13mm*90mm
Tire	11.00R20 triangle brand 13pcs
Wheel rim	8.0-20 jingubrand 13pcs
Kingpin	2"bolt-in king pin
Landing gear	two-speed, manual operating ,heavy duty landing gear 28T
Twist lock	no
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	4S/2M
Light	LED 8 side lights and 2 rear lights 2 width lamp
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories	One standard tool box,one spare tire carrier,one crank,one shaft headwrench,four side light,two rear light
Date of delivery	5 workdays after we received 30% of contract value T/T down payment.

Trailer advantages description
·More than20 years professional design and production experience.
·Choose Regular manufacturers purchase materials,like T700 baoshan.
·Use Domestic first-class production equipment.Main beam is useing Submerged arc welding process.
·Famouse brand trailer parts used,likebpw/fuwaaxle,triangle/double star/double coinand so on tires.
·Strict quality control system ensure that each semi trailer is qualified.

Delivery
Wax spray and Nude


Warranty period and after sale service

FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 40% contract value as the deposit by T/T,60% contract value made by irrevocable L/ Cat sight.
Welcomeyour inquiryand visit our factory.
