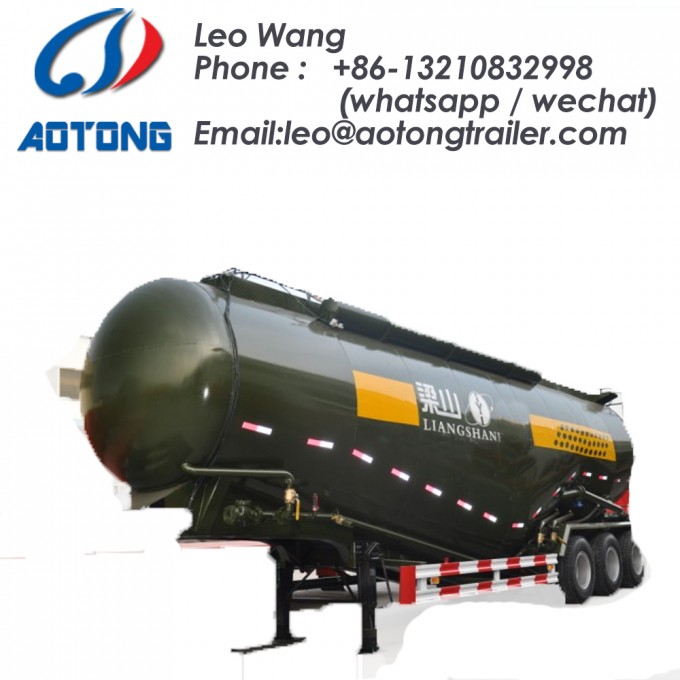

2 Axles Large Volume Tanker Bulk Cement Tanker Truck Semi-Trailer

3-Axle Large Volume Tanker Bulk Cement Cargo Transport Tank Truck Semi Trailer (volume optional)

Discription: 1. Model: LAT9408GFL
2. Well welded tanker body
3. More than 14 years professional manufacturer experience
4. Be designed according to your requirements
5. CCC ISO9001 agreement
6. Small order can be accepted
7.12 month quality guarantee term
8. We accept 100% inspection, welcome to our factory at any time

PRODUCT SPECIFICATIONS:

Product Specifications
Model Number	LAT9408GFL
Total Weight	40000 kg
Rated Load	30000 kg
Tare Weight	10000 kg
Volume	73M 3, diesel engine, air compssor, and the tank shell make the whole a"W"shape.
Wheel base	8580+1310+1310 (mm)
TyreSpecifications	11.00R20-18PR12R22.5-18PR
No. Of the Tyres	12
Axle Brand	FUWA (BPW optional)
No. Of the Axles	3
Axle-load	24000 kg
King Pin	50#/90#
Landing Leg	28ton
Pieces of leaf-spring	10(8)
Suspension	independent stamping steel rigid suspension (or air suspension)
Departure Angle	23
Front/Rear Overhang	1400 mm
Outside Dimensions	13000x2500X4000(LxWxH) (mm)
(Interior)Tank shell Dimensions	13000x2500X3350(LxWxH)(mm)
Material of the Main Beam	Q345B manganese plates, automatic submerged arc welded
Brake System	Dual line braking system/ABS
Brake Air Chamber	Six double chamber
Electrical	24V7 ways(7 wire harness)
Usage	The cargo's carrying part is tank-style designed, is suitable for the transportation of liquid products, bulk materials, and bulk cement.
Characteristics	1. High transport efficiency, ensuring the products will not be deteriorated in the process of transportation, saving the packing materials to reduce the transport costs. 2. Equipped with gasification bed, intake control system, and thrusting control system to ensure the pipelines unimpeded. 3. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed. 4. The diesel engine, providing compssed air.
Other Specifications	The sealing head theshell can be torque and ellipse, and internal anti-wave plates are installed. Heat pservation organization adopts the single-layer insulation by using compssed thick glass fiber, with good psence and light weight. The internal part can be single layer or dual layer

Delivery:
1.By bulk ship or RORO ship

2.Can put into containers(40ft/45ft HQ container)

3. By SKD type

According to customer's loacation and the vehicles size,we provide professional packing can save great sea freight for customers.

Company Information:
Qingdao Juyuan International Trading Co., Ltd. is an industry &trade company, with afactory, Liangshan Juyuan Special Vehicle Manufacturing Co., Ltd.

Having been in the field of trailer manufacture since 2001, we are one of the companies which first gained Compulsory Product Certificate (CCC Certificate) from the Ministry of Technology and Information of P. R. C, and ISO9001 certificate.

With advanced and proven technique in design, exploitation and production, our products with the brand "Aotong" are enjoying high popularity in America, the Middle East, Africa, Southeast Asia and Russia,specially get good feed back from Kenya,Tunisia,Saudi Arabia, the Philippines, Myanmar, Vietnam, Thailand, Bangladesh, Tanzania, mozambique, Congo, Nigeria, Russia,Singapore,South Korea etc..
Now we provide more than 60 types of trailers. Our production can be done according to your requirements.
Welcome to visit our factory,we will pick you up from airport!!

DEALING PROCESS

1. Send us inquiries on your desired product /mdel through our contact information.
2. We shall reply you within 12 hours.
3. Negotiations on your needed configuration.
4. Configuration on the tech data.
5. Sign contract.
6.30% down payment or LC issuing.
7. Production
8. Manufacturig process updated news.
9. Production completement.
10. Shipment
11. Custom Clearance
12. A/S service for 1year.
