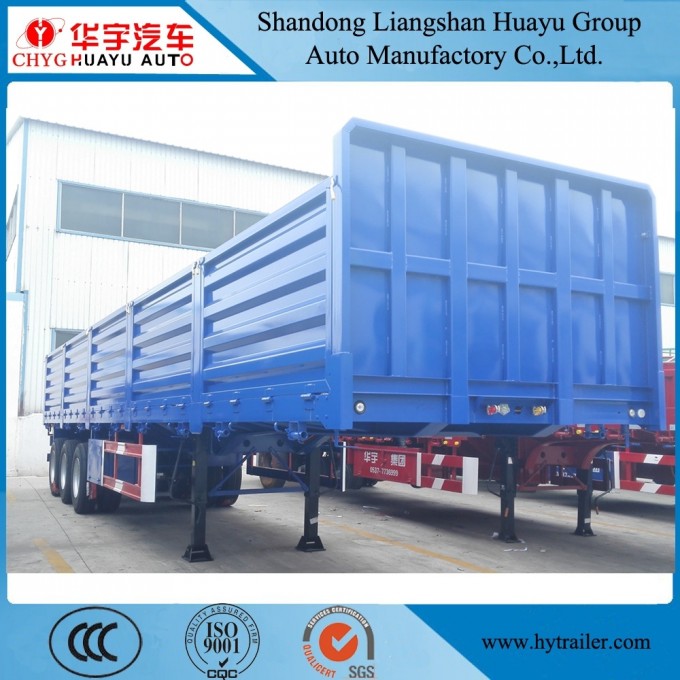

40ft 3 Axle Cargo/Flatbed/side wall/Co
ntainer utility Semi Truck Trailer for Sino Truk
Trailer Details show:

Introduction of production processA.Steel auto cutting
B.Main beam autosubmerged arc welding
C.chassis reversal
D.shot blasting for rust cleaning
E,F.Welding by experienced worker
G.Final cleaningwelding slag
H.Dust-free painting
SpecifacitionTare weight | 8000kg |
Size | 12500mm*2500mm*250mm |
Payload | 50T |
Main beam | Heavy duty and extra durability designed Ibeam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height500mm;bottom flange16mm,width 140mm |
Side beam | 16#/18# channel steel(Q235) |
Cross member | 10#/w shape channel steel(Q235) |
Floor | 3mm checkered plate |
Side wall | height 600mm thickness 1.5-2.5mm |
Front board | 1500mm |
Axle | 3 axle FUWAbrand 13T |
Suspension | American type suspension |
Leaf spring | 10pcs*13mm*90mm |
Tire | 12R22.5 12pcs |
Wheel rim | 9.0-22.5 12pcs |
Kingpin | 2"bolt-in king pin |
Landing gear | two-speed, manual operating ,heavy duty landing gear 28T |
Twist lock | 12pcs |
Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
ABS | Optional |
Light | LED 8 side lights and 2 rear lights 2 width lamp |
Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
Accessories | One standard tool box,one spare tire carrier,one crank,one shaft headwrench,four side light,two rear light |
Date of delivery | 20 workdays after we received 30% of contract value T/T down payment. |
Trailer advantages description·More than
20 years professional design and production experience.
·Choose Regular manufacturers purchase materials,like Q235 baoshan.
·Use Domestic first-class production equipment.Main beam is useing
Submerged arc welding process.·Famouse brand trailer parts used,like
bpw/fuwaaxle,
triangle/double star/double coinand so on tires.
·Strict quality co
ntrol system ensure that each semi trailer is qualified.
DeliveryWax spray and one stack of 3 sets to reduce shipping fee.

Take apart , one 40HQ to load 2 sets
Warranty period and after sale serviceITEM | WARRANTY TERM |
Main frame | frame | 1 year |
king pin | 1 year |
suspension | 6 months |
balance arm | 3 months |
U-shaped bolt | 3 months |
pullrod | 6 months |
leaf spring | 3 months |
landing gear | 3 months |
spare tire carrier | 3 months |
Running Gear | axle | 1 year |
axle bearing | 3 months |
wheel rim | 3 months |
tire | 3 months |
Braking Device | brake drum | 3 months |
Relay valve | 3 months |
brake champer diaphragm | 3 months |
spring brake chamber | 3 months |
brake shoe | 3 months |
air tank | 3 months |
FAQ·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% co
ntract value as the deposit by T/T,70% co
ntract value payoff before delivery after production finish.
2. 40% co
ntract value as the deposit by T/T,60% co
ntract value made by irrevocable L/ Cat sight.
Welcomeyour inquiryand visit our factory.
