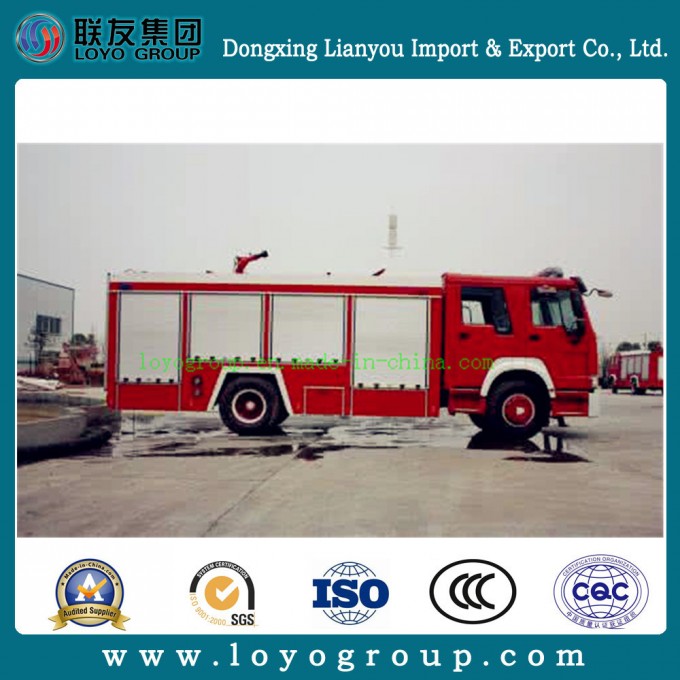

| INOTRUK HOWO fire truck |
| Driving Type 4x2 |
| Model | ZZ1167M4617C5 |
| Engine | Model | WD615.62 |
| Horsepower | 266 HP |
| |
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection |
| Displacement | 9.726L |
| Make SINOTRUCK (CNHTC), Euro 2 emission standard, |
| Cab | Four doors, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts,adjustable steering wheel, air horn,air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber |
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance |
| Transmission | SINOTRUK HW13710transmission ,10 forward and 2 reverse |
| Front Axle | SINOTRUK HF7 Front Axle,HOWO 7-ton front axles of equipped with drum brakes. |
| Steering | German ZF8089 Steering Gear Box ,hydraulic steering with power assistance |
| Rear Axles | SINOTRUK ST16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles,enforced STR axle;can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice forcustomers. |
|
| Brake System | Service brake:dual circuit compssed air brake |
| Parking brake (emergency brake):spring energy,compssed air operating on rear wheels |
| Auxiliary brake:engine exhaust valve brake |
| Tyres | Tyres: 11.00R20radial tyre with 1 Spare tire |
| The layout of vehicle body | five aluminium alloy door on both sides and behind |
| thefront is water pump chamber on each side 4intotal, rear is equipment boxes, middle is water tank |
| Fire GunWater range:≥60m |
| Tank fixed: rigid connection to the chassis frame |
| water tank capacity:8000 litre |
| The vehicle was formed by the Firefighters crew room and vehicle body. equip with fire monitor on the roof of vehicle, Extended cab, ride comfort, centralized operation, easy maintenance. Withpower take off ,can achieve watering while walking.Pump chamber is located on the front of the vehicle, Set aluminum rolling doors on both sides and behind, set internal lighting. Located on both sides of the pedals,non-slip design. The pedal box can be placed some of the commonly used equipment, set ladder at rear of the vehicle, an appropriate location. Equipment boxes is located on the rear of the cab, set aluminum rolling doors on both sides, set internal lighting. Located on both sides of the pedals, non-slip design. Set sliding tray and storage box in the Equipment boxes and the pedal box. The porous steel structure is easy for equipment clamping and position adjustment. Reserved big space, the user can place the equipment according to their demand.Roof: Non-slip for walkingManhole: diameter 450mm. Overflow: diameter 75mm ; water filter:diameter 63mm Release the excess water: set a DN40 outlet which release the excess water, with ball valve.The control panel includes cab control and pump room control two parts: cab control: upload electrical master switch, upload gas path switch, Pump off gear, Lights alert, lighting and Signal device control. pump room control: Mixing ratio setting, Control valve switch, Parameter display, Status display.Battery DC24V(12*2,DUAL Battery) Vehicle lighting: use 24V voltage. Firefighters room, pump house and equipment boxes with lights, set lighting and indicator on the Manipulate dashboard, To facilitate operator operates and observation. |
| Oil Tank | D type-300L Aluminum alloy fuel tank |
| Dimensions | Wheel base:3825+1350 |
| Overall length x width x height7990*2496*2958 |
| Performance | Maximum drving speed (km/h)90 |
|
| Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer |
| be suitable for long distance transportation of inland and ocean. |
| The manufacturer reserves the right of technical alteration /change for better improvement without prior notice |
