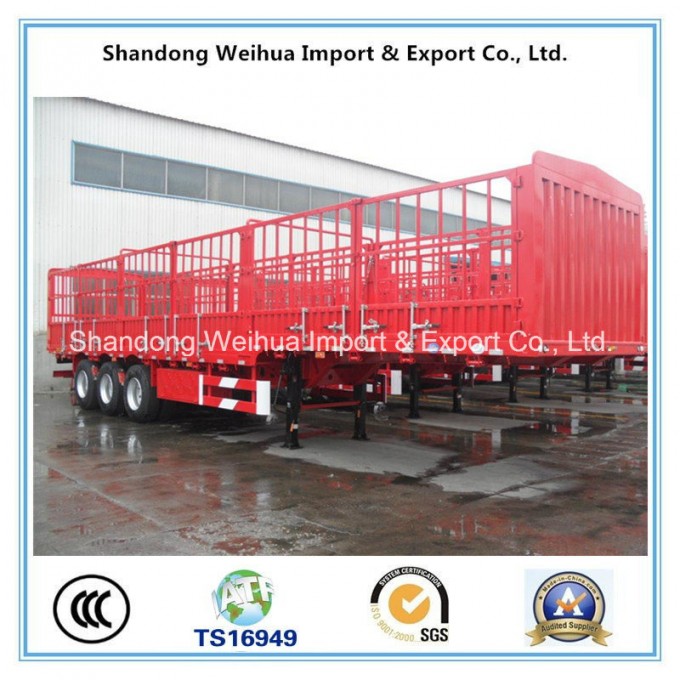

Semi Truck Trailer with 3 Axles Stake Truck From Manufacture

Item:Semi truck Trailer with 3 Axles Stake truck From Manufacture
Load Capacity:40t ~80t
Wheel base: 6180 ~6680mm +1310+1310
Towing Pin Material: Alloy Steel
Towing Pin Type:Mushroom Type
Axle Number: 3Axle
Tire Number: 12PCS
Traction Pin: 50mm/90mm
Spare Wheel Bracket: 2Pcs
Axle: Fuwa Brand 13ton Axle, Optional BPW or Other Brand
Tire Spec: 11.00r20 or 12r22.5 or 315/80r22.5

Trailer Model	2 /3 Axle cargo side wall Semi Trailer
Overall Dimension(Lx Wx H)	12500~13000mm*2500*2900mm/3100mm/3300mm
Side wall height	600mm
Function	carry cargo
Tare Weight(KG)	6T~9T
Loading Weight( KG)	40T ~80T
Total Weight(KG)	46T ~89T
Axle Brand	FUWA Brand 13ton Axle, Optional BPW or other brands
Axle Number	3
Wheelbase(mm)	6180 ~6680mm +1310mm +1310mm
Suspension system	Mechanical Suspension or Air Suspension
Steel Spring	10/10/10 leaf spring suspension
Main beam	Height: 450~550mm. Upper plate is 14mm,Down plate is 16mm, middle plate is 8mm.
Material of Main beam	Q345B
floor plate	3 mm Diamond plate or option
Tire Type and quantity	11.00R20 or 12R22.5 or 315/80R22.58/12Pieces
Traction Pin	50mm /90mm
Material of traction Pin	Alloy steel
Tool Box	1 Standard
Landing Gear /support leg	JOST /FUWA or China brand 28Tons
Brake air chamber	Four or Six big double air chamber
ABS	optional
Electrical system	1.Voltage: 24v 2. Receptacle: 7ways (7 wire harness)
	Tail lamp with turn signal, brake light &reflector, side lamp etc.
Side Guard	According to customer's requirement
Painting	Color by customer's requirement
Packing	Nude /container

This kind ofside wall semi trailer are processed with excellent steel, advanced technolege and strict production process. The stringer adopts automatic submerged arc welding, The whole frame process with shot peening. Beams and stringers is penetration welding as awhole.
Use advanced software to design and optimize products and meet the need of clients.
FAQ

Q1. Are you amanufacturer?
Yes, we have been in special vehicle manufacturing and marketiing for over 20 years.

Q2. What markets do your vehicle export to?
South America, South-East Asia, Africa, Oceanica, Middle East countries etc.

Q3. What information should Ilet you know if Iwant to get aquotation?
Please let us know the your purpose,road condition,cargo type,tons of your cargo,dimensions of trailer,quantity etc. The more info you provide, the more accurate model and price you will get.

Q4. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.

Q5. How can Iget the price of your vehicle?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.

Please feel free contact me for any questions and requirements.
