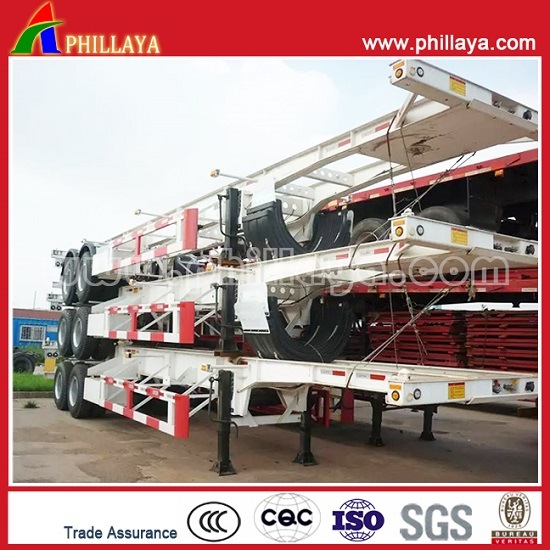

Cimc Wholesale Industrila Auto Truck Skeleton Chassis Semi Trailer

ConTACT INFORMATION:
Miss. Allison Zhang
Mob: +86 185 5320 5201
Just send me an inquiry or contact me via the above phone/whatsapp/viber number for more details if you have any interests or needs,I will reply you asap.
www.phillaya.com
Qingdao Phillaya International Co., Ltd


FUNCTION:

1. Usage: In the port for containers or bulk cargos' transportation.
2. The rated capacity varies widely from 30Tons to 65Tons, and the dimension different from 6100mm to 15820mm, we can manufacture it according to your needs.
3. Axles: Fuwa / BPW with different tonnages by your need with price differences.
4. Suspension: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. The loading deck can be skeleton or flatbed.

20ft-52ft/30-65TConTAINERLOADSEMITRAILER(SKELETON)
Dimension	Model		Axles/Tires		RatedCapacity
20ft	PLY9200GYY		2axles/8tires	3axles/12tires	30T-45T
30ft	PLY9201GYY		2axles/8tires	3axles/12tires	30T-45T
40ft	PLY9202GYY		2axles/8tires	3axles/12tires	45T-60T
45ft	PLY9303GYY		2axles/8tires	3axles/12tires	40T-65T
48ft	PLY9304GYY		2axles/8tires	3axles/12tires	40T-65T
52ft	PLY9305GYY		2axles/8tires	3axles/12tires	40T-65T
PlaceofOrigin		Shangdongprovince,China
Color		Anycolorwillbeavailable
RatedLoad		30000kg-65000kg
TareWeight		5000kg-7000kg
AxleBrand		13Tonnage
No.OftheAxles		2
Piecesofleaf-spring		10
Suspension		HeavyDutyLeafSpring
MaterialoftheMainBeam		Q345B/ST52-3manganeseplates,automaticsubmergedarc,Main-beamHeight500mm,throughcrossbeamsQ235, SideBeam:160mm Upperflange:16mm,Midweb:10mm,Lowerflange:18mm
TwistLocks		12setscancarry2x20ftor1x40'Containers
BrakeSystem		DualLinesBrakingSystemWithAutomaticAirChambers
BrakeAirChamber		Fourdoubleandtwosinglechamber
ElectricalSystem		24V,7coresocket,lightsaccordingtoEuropeanstandards.
Floor		3mmmanagementplate
ToolBox		1boxofstandardtools
Sparetirecarrier		2sets
ColorandLogo		Dependsonthebuyer'srequirement.
Others:OtherSize/dimensionorconfigurationswillbeavailablebycustomeri-zation.

INTRODUCTION TO OUR FACTORY:

Phillaya international trading Co., Ltd, a special vehicle manufacturing corporation with the professional experience more than 15 years, certified by the Chinese government manufacture,Majored in semi trailer, special vehicle manufacture, our products are mainly exported toPhilippine, Bangladesh, Thailand, Myanmar, Vietnam, Nigeria, Russia, Mongolia, Congo, Kenya, Tanzania, etc...More than 20 countries.




OUR SERVICE:

1.3C&ISO Agreement, 1 Year Guarantee Term, Main-beam Lifetime Promise.
2. Small Order Can Be Accepted.
3. Any Color & Logo Available
4. The Product Dimension + Specifications Can Be Designed As Your Needs



DEALING PROCESS:

1. Send us inquiries on your desired product / mdel through our contact information.
2. We shall reply you within 12 hours.
3. Negotiations on your needed configuration.
4. Configuration on the tech data.
5. Sign contract.
6.30% down payment or LC issuing.
7. Production
8. Manufacturig process updated news.
9. Production completement.
10. Shipment
11. Custom Clearance
12. A/S service for 1 year.
