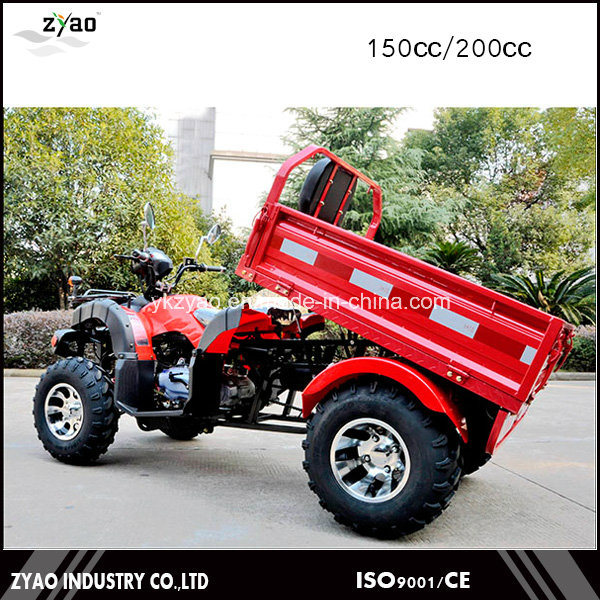

China Imports ATV Farm Trailer

Manufacturer: ATV/Electric Scooter/Go Kart/UTV...ETC.
and all spare parts.
ATV/QUAD: 50CC/70CC/90CC/110CC/125CC/150CC;
200CC/250CC/300CC/350CC/400CC/500CC/600CC
1), Packaging & Delivery:

Packaging Details:

Film steel frame inside and strong carton outside. We can also do themark and stickeras buyersrequire. 20FT:18PCS, 40HQ:36PCS

2),Specification:

IDENTIFICATION
1.Model No.	ZYA-13T-10-10C-150	ZYA-13A-10-10-200	ZYA-13A-10-10-200
2.Warranty	one year for engine, 6months for other parts
3.CEcertifcate	CE	CE	CE
ENGINE
4.Cylinder	Single	Single	Single
5.Cooled System	Air	air	air
6.Engine Stroke	4 Stroke	4 Stroke	4 Stroke
7.Bore*Stroke(mm)	57.4×57.8mm	61x64.7mm	61x64.7mm
8.Displacement(ml)	149.6(150cc)	200CC	200CC
9.Max.power(kw/rpm)	7.0kw/7500rpm	7.5kw/6500rpm	7.5kw/6500rpm
10.Max.torque(n.m/rpm)	8.3N.m/5000rpm	10.5N.m/5000rpm	10.5N.m/5000rpm
11.Ignition Type	CDI	CDI	CDI
TRANSMISSION
12.Transmission Type	CVT F-N-R,Reverse gear
13.Primary Drive(Rear Wheel)	Chain 4x2	Chain 4x2	Chain 4x2
14.Reverse	Yes	Yes	Yes
15.Max Speed(km/h)	>50	>60	>60
WHEEL
16.Front wheel	21x7-10	21x7-10	21x7-10
17.Rear wheel	20x10-10	20x10-10	20x10-10
SUSPENSION
18.Front Suspension	Double A-Swing Arm	Double A-Swing Arm	Double A-Swing Arm
19.Rear Suspension	Swing Arm	Swing Arm	Swing Arm
BRAKE SYSTEM
20.Front brake	Drum	Drum	Drum
21.Rear brake	Disc	Disc	Disc
22.Braking distance	8m(30km/h)	8m(30km/h)	8m(30km/h)
TECHINCAL SPECIFICATIONS
23.Product Dimensions(mm)	2530x1075x1120	2530x1075x1120	2530x1075x1120
24.Ground Clearance(mm)	220	220	220
25.Wheelbase(mm)	1580	1580	1580
26.Mini Turning Radius(mm)	2800mm	2800mm	2800mm
27..gross weight(kg)	245	245	245
28. net weight(kgs)	215	215	215
29.Fuel Capacity(L)	8 L	8 L	8 L
30.Fuel consumption	4.0L/100KM	4.5L/100KM	4.5L/100KM
SEAT
31.Seat Height(mm)	70	70	70
32.Number of Seats	1	1	1
COLOR
33.Standard Color	Red/Yellow/Blue/Green/Black/White
34.Optional Color	Green camo,Yellow camo,Snow Camo,metallic,Carbon
LOADING
35.Packing Size(mm)	1960x900x710 (Steel frame inside,carton outside)
36.Quantity	20FT:18PCS, 40HQ:36PCS

3),More Pictures:



4), Packing Way:


5), Delivery Time/Delivery Way:
A),Within 15-20days after receiving deposit;
B),By Sea;

6),FAQ:

1.	ask:	What is the minimum order quantity?
	answer:	MOQ for ATV: 1x20FT, MOQ for spare parts: 5pcs
2.	ask:	What is the production and delivery time?
	answer:	Delivery for ATV: 20-30 days. Delivery for spare parts: 5-15days
3.	ask:	Can I order a sample ?
	answer:	Yes for spare parts,and need 200 USD as sample fee for ATV.
4.	ask:	Can we use our own shipping agent ?
	answer:	Sure.
5.	ask:	Can we mix the 20ft container ?
	answer:	Yes, you can mix no more than 4 models in a 20ft container and no more than 6 model in a 40HQ container.
6.	ask:	Can we use our own logo or design for sticker ?
	answer:	Welcome!
7.	ask:	How often do you develop new models?
	answer:	We regularly develop 1 new model per 3 months.
8.	ask:	Do your factory have Certificate?
	answer:	We have CE for all of our ATV products and EEC for mostly of ATV products.

7), Contact Way:



We welcome new and old customers from all walks of life to contact us
for future business relationships and achieving mutual success!
