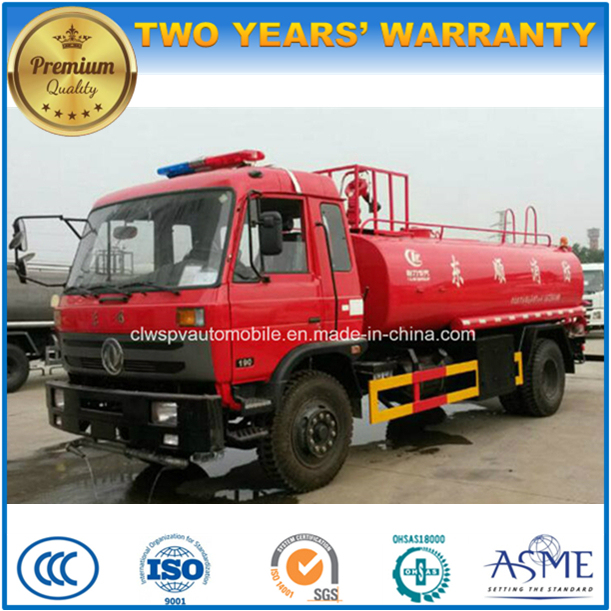

4X2 Dongfeng 15000L Fire Fighting Truck 15cbm Water Fire Tanker Truck

Water tanker fire truck
Also known as "water tanker", in addition to fire pumps and equipment, also equipped with a large capacity of the storage tank and water guns, water cannons, etc., can work without external water sources of fire fighting , but also can work rely on water source directly for the fighting, and can supply water to other fire engines and fire extinguishing device. In the water shortage area, water tank fire truck can also be used for water supply, water transport vehicles. Fire engines is suitable for fighting the general fire, is standing for the public security fire brigade and professional fire brigade.

Specification

Left hand drive
Vehicle model	CLW5161GSSD4
Chassis model	EQ1161GKJ1
Overall dimensions	8420 x 2400 x 3005 mm
Tanker volume	14000L
Pay load	14000 kg
Curb weight	7295kg
Wheel base	4500 mm
F/R track base	1480/1495 mm
Approach/departure angle	22/15
Max speed	92 km/h
Tire specification	10.00-20
Engine type	ISDE210-30
Engine power	139 Kw/190 Hp
Engine manufacturer	Dongfeng Cummins Engine Power Co. Ltd
Transmission	6+1
Emission standard	Euro 3
Tank material	4mm High quality carbon steel
Tank shape	Ellipse
Max Grade Ability	31%
Configuration	High quality vacuum pump, power take off, ball valves, filter screen, water hoses, sprinkler device, separated compartment of tanker. Fire Extinguisher (4kg)
Pump	Vertical suction>8m, horizontal suction>50m, water spray width>14m,spray range>28m. Rating Speed,1450 r/Min Flux,60 m3 / h
Warranty	24 months, from the date of supply

Water fire truck and factory show








Fire tank truck working show




Q&A

1.Q:Are you amanufacturer or trading company? A:We are manufacturer. You are welcomed to visit our factory. Factory Address: Chengli Automobile Industrial Park, South Suburb, Suizhou, Hubei, China

2.Q:What kind of payment do you accept? A:We accept T/T and L/C usually. If you want to use others payment, contact us for /confirm/iation.

3.Q:Can you customize trucks according to customers' need? A:Yes, product customization service is our speciality.

4.Q:What's your after-sale service? A:We provide technical support for our products. Besides, we also provide spare parts as long as customers need.

5.Q:What's your delivery time? A:It depends on the quantity, usually takes 10-15 working days.
