HOWO Fire Fighting Emergency Truck for Sale

HOWO urban battle fire truck is mainly used in the enterprise and urban area, etc, as the forerunner and backbone of the fire-fighting force in an accident; it has the dual function of working and guide, with the characteristic of high mobility, high-power, multi-occupant, information.

Matching advanced assmble such as MC 11 engine with high power, HW transmission (AMT is optional), and MAN rear axle, etc not only ensure its reliability but also its strong power.

New developed four-door cabin special used for fire truck has the characteristic of profession, large space, multi-occupant, humanization, matching the seat special used for fire truck, its interior height can be up to 1720mm

E lectronic system for fire truck adopts CAN line technology, with the function of diagnosing, fault information record, which can meet the requirements of high power consumption for body and refitting at the same time.

The layout of chassis is considering the requirement of body, which is compact and reserving the chance for refitting in maximum.

The design of vehicle fully considers the characteristic man-machine communication, which can provide a safe, comfortable, convient environment for driving.


HOWO Light Duty Truck

HOWO series light truck is a new product platform developed by Sinotruk, which is equipped with L-Series cab, which design conception is integrated with the most popular design trend of light truck cab home and aboard nowadays and the latest A7 series cab, elegant and graceful appearance, luxurious and comfortable interior. In 2015, the light truck with MC05 engine will be fully launched into market.

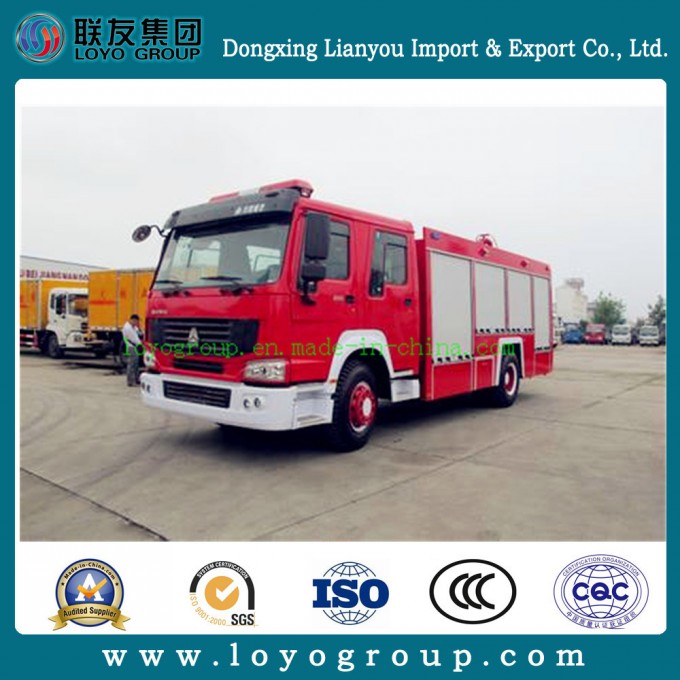

INOTRUK HOWO fire truck
				Driving Type 4x2
Model				ZZ1167M4617C5
Engine	Model			WD615.62
	Horsepower			266 HP
	Type			6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
	Displacement			9.726L
	Make SINOTRUCK (CNHTC), Euro 2 emission standard,
Cab	Four doors, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts,adjustable steering wheel, air horn,air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber
Clutch	SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
Transmission	SINOTRUK HW13710transmission ,10 forward and 2 reverse
Front Axle	SINOTRUK HF7 Front Axle,HOWO 7-ton front axles of equipped with drum brakes.
Steering	German ZF8089 Steering Gear Box ,hydraulic steering with power assistance
Rear Axles	SINOTRUK ST16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles,enforced STR axle;can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice forcustomers.
Brake System	Service brake:dual circuit compssed air brake
	Parking brake (emergency brake):spring energy,compssed air operating on rear wheels
	Auxiliary brake:engine exhaust valve brake
Tyres	Tyres: 11.00R20radial tyre with 1 Spare tire
The layout of vehicle body	five aluminium alloy door on both sides and behind
	thefront is water pump chamber on each side 4intotal, rear is equipment boxes, middle is water tank
	Fire GunWater range:≥60m
	Tank fixed: rigid connection to the chassis frame
	water tank capacity:8000 litre
	The vehicle was formed by the Firefighters crew room and vehicle body. equip with fire monitor on the roof of vehicle, Extended cab, ride comfort, centralized operation, easy maintenance. Withpower take off ,can achieve watering while walking.Pump chamber is located on the front of the vehicle, Set aluminum rolling doors on both sides and behind, set internal lighting. Located on both sides of the pedals,non-slip design. The pedal box can be placed some of the commonly used equipment, set ladder at rear of the vehicle, an appropriate location. Equipment boxes is located on the rear of the cab, set aluminum rolling doors on both sides, set internal lighting. Located on both sides of the pedals, non-slip design. Set sliding tray and storage box in the Equipment boxes and the pedal box. The porous steel structure is easy for equipment clamping and position adjustment. Reserved big space, the user can place the equipment according to their demand.Roof: Non-slip for walkingManhole: diameter 450mm. Overflow: diameter 75mm ; water filter:diameter 63mm Release the excess water: set a DN40 outlet which release the excess water, with ball valve.The control panel includes cab control and pump room control two parts: cab control: upload electrical master switch, upload gas path switch, Pump off gear, Lights alert, lighting and Signal device control. pump room control: Mixing ratio setting, Control valve switch, Parameter display, Status display.Battery DC24V(12*2,DUAL Battery) Vehicle lighting: use 24V voltage. Firefighters room, pump house and equipment boxes with lights, set lighting and indicator on the Manipulate dashboard, To facilitate operator operates and observation.
Oil Tank	D type-300L Aluminum alloy fuel tank
Dimensions	Wheel base:3825+1350
	Overall length x width x height7990*2496*2958
Performance	Maximum drving speed (km/h)90
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer
	be suitable for long distance transportation of inland and ocean.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice
