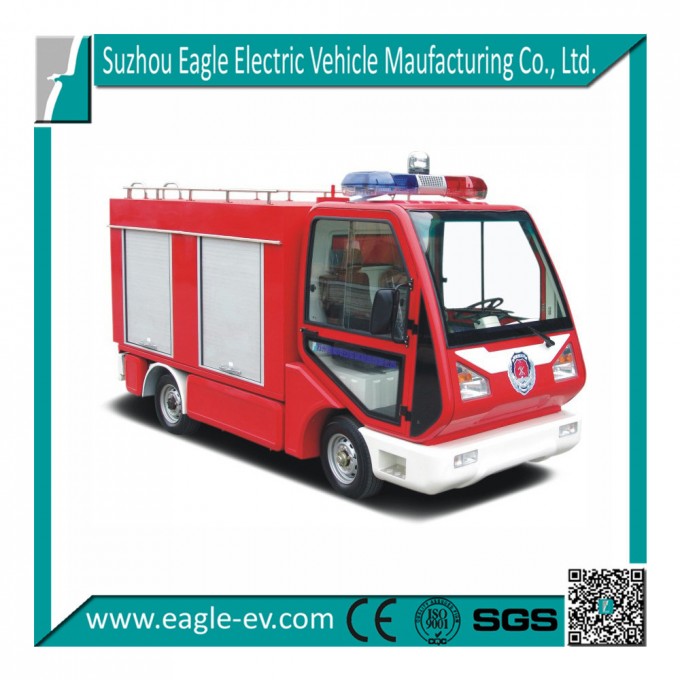

Fire Fighting Truck, CE, Electric, 1.3 M3 Water Tank, for Emergency Fire Fighting in Closed Area

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.

Item	Description fire fighting truck
Controller	Curtis controller, 400A, imported from USA directly
Motor	Rated power 6.3KW(8.6HP)DC motor,7.5KW (10.2HP)AC motor Chinese brand
Battery	Trojan battery, 12pcs T105+, imported from USA directly
Charger	72V transfered smart charger, output 110V-240V,50-60HZ,out72V/25A

Performance

Item	Description
Passenger Capacity	2
Range (loaded) (km)*	up to 42
Max.speed (km/h)	up to 55
Min.turning radius (m)	5.3
Max.climbing ability(loaded)	up to 20%
Max. movement after brake at speed of 20km/h	N/A
Max.loading weight (kgs)	1500
Charging time (hour)	8-10
Battery lifespan (cycles)	750

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.

Dimensions

Item	Description
Overall dimensions (mm)	4350x1500x2300 (LxWxH)
Rear cargo bed dimensions (mm)	3000x1500x1400 (LxWxH)
Min.ground clearance (mm)	150
Wheelbase (mm)	2600
Front wheel tread (mm)	1280
Rear wheel tread (mm)	1220

Body and frame

Item	Description
frame & Chassis	Welded steel framework with sand blasting and painting
Cabin	Aluminum frame with FRP cover sheet and glass window
Front windshield	Laminated glass with wiper
Seat	Reborn sponge with artificial leather, highback
Floor	Skidproof leather
Rear box	Aluminum material, with side rolling door, with PVC water tank (1.3T)
Battery sliding system	Steel frame with sliding wheel
Beverage holders	1 cups holders
Side rear view mirror	2pcs, manual adjustable

Electric System

Item	Description
Lights	12V, headlight (H/L beam), front turning light, Rear taillight (brake light and rear turing light)
Horn	Electric horn, 12V
Reverse buzzer	Electric, 12V
Combination switch	Switch for headlight, turning light, wiper and horn
DC/DC converter	72V/12V
Warning light on the top	with siren
Audio system	Radio with MP3 receiver, with two waterproof speaker
Digital Meter	with Current meter, voltometer, speedometer and various indicators
