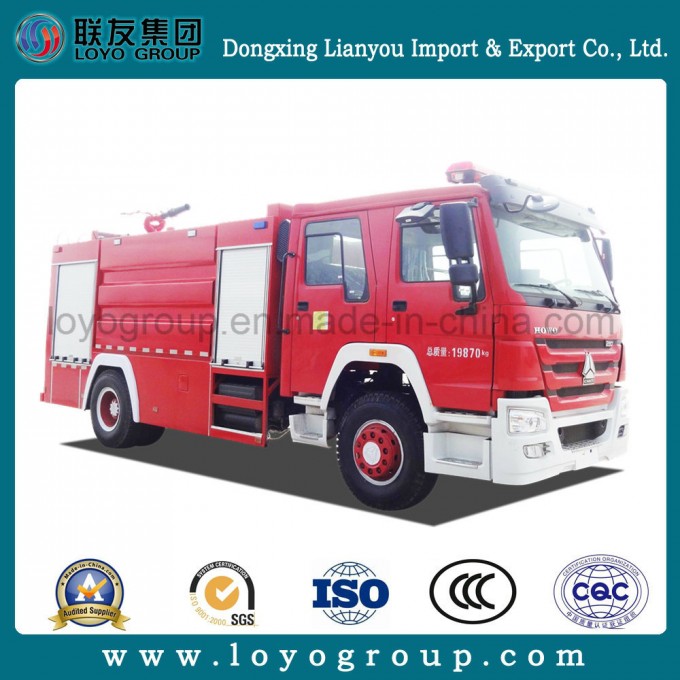

HOWO 4X2 Fire Fighting Truck with 8000L Water Tank

HOWO urban battle fire truck is mainly used in the enterprise and urban area, etc, as the forerunner and backbone of the fire-fighting force in an accident; it has the dual function of working and guide, with the characteristic of high mobility, high-power, multi-occupant, information.
Matching advanced assmble such as MC 11 engine with high power, HW transmission (AMT is optional), and MAN rear axle, etc not only ensure its reliability but also its strong power.
New developed four-door cabin special used for fire truck has the characteristic of profession, large space, multi-occupant, humanization, matching the seat special used for fire truck, its interior height can be up to 1720mm
Electronic system for fire truck adopts CAN line technology, with the function of diagnosing, fault information record, which can meet the requirements of high power consumption for body and refitting at the same time.
The layout of chassis is considering the requirement of body, which is compact and reserving the chance for refitting in maximum.
The design of vehicle fully considers the characteristic man-machine communication, which can provide asafe, comfortable, convient environment for driving.
HOWO Light Duty TruckHOWO series light truck is anew product platform developed by Sinotruk, which is equipped with L-Series cab, which design conception is integrated with the most popular design trend of light truck cab home and aboard nowadays and the latest A7 series cab, elegant and graceful appearance, luxurious and comfortable interior. In 2015, the light truck with MC05 engine will be fully launched into market.

SINOTRUK HOWO fire truck
				Driving Type 4x2
Model				ZZ1167M4617C5
Engine	Model			WD615.62
	Horsepower			266 HP
	Type			6-cylinder in line, 4-stroke, water-cooled, turbo-charged &inter-cooled, direct injection
	Displacement			9.726L
	Make SINOTRUCK (CNHTC), Euro 2emission standard,
Cab	Four doors ,2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner ,with transverse stabilizer,with 4-point support fully floating suspension +shock absorber
Clutch	SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
Transmission	SINOTRUK HW13710 transmission ,10 forward and 2reverse
Front Axle	SINOTRUK HF7 Front Axle,HOWO 7-ton front axles of equipped with drum brakes.
Steering	German ZF8089 Steering Gear Box ,hydraulic steering with power assistance
Rear Axles	SINOTRUK ST16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle; can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for customers.
Brake System	Service brake:dual circuit compssed air brake
	Parking brake (emergency brake):spring energy,compssed air operating on rear wheels
	Auxiliary brake:engine exhaust valve brake
Tyres	Tyres: 11.00R20 radial tyre with 1Spare tire
Oil Tank	D-type 300L aluminum alloy oil tank
Dimensions	Wheel base: 3825+1350(mm)
	Overall length xwidth xheight 7990*2496*2958(mm)
Performance	Maximum drving speed (km/h) 90
Five aliminum alloy door on both side and behind Water pump is the front side; in total, 4 chamber on each side; equipment box in rear side. Fire gun's water range: ≥60M Water Tank Capacity: 8000Liter

Company Profile







1. OUR ADVANTAGE:
(1)Competitive Factory Price and Excellent Quality
(2)More than 10 years' experience as amanufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 50 countries and regions

2.AFTER SERVICE:
LOYOGROUP PROMISE: We are always at your service to help purchase any spare parts and ship to our clients as per client's requirement.
For axles, the guarantee period is one year or 150,000 kilometers. Free maintenance is only for main parts of axle: axle beam, hub, and camshaft; excluding easy worn-out parts.
For chassis, the guarantee period is one year and the trailer must carry the Tons according to the standard capacity; If the problem caused by overload, we will not be responsible.
For Suspension, the guarantee period is 6month.
For Kingpin, the guarantee period is one year.
For landing gear, the guarantee period is one year.

3. FAQ

Q1: Iwant the front two tires are bias tires and the rear 9tires are radial tires, is it OK ?

A: We can make the tires as your requirement to suit your country's need.

Q2: What about your products quality ?

A: Quality is our culture! "Our factory has advanced production technology and management team! We always attach great importance to quality controlling from the very beginning!

Q3: Can ihave samples of this type of flatbed semi trailer to test the quality ?

A: Yes, you can buy any samples to test the quality,our MOQ is 1unit.

Q4: What others you can do ?

A: According to your order, we will provide the best price and quality trucks and trailers. And we are well capable in offering overseas after-sales service. Besides, we also provide rational packing and shipping program,let shipment save money and security.

Q5: How to guarantee customers get the goods smoothly after they pay ?

A: Don't worry, dear. We have been in this field for 10 years, we will send you production photos once in awhile, and we will help you to book the latest ship.

Q6: What's the delivery time ?

A: The delivery time is within 15

Q7: Can you supply some quick-wear truck or semi trailer parts ?

A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balancebeam and semi-trailer plate spring, hanging accessories, turntable
