DNV2.7-1 / EN12079-1 Tank Offshore Container:
| Model No | ISO-T75-20ft |
| Water Capacity | 20000L |
| Mawp | 0.78-2.4 MPa |
| Loading Medium | Lar, Lo 2, Ln 2, Lco 2, LNG |
| Maximum Gross Mass | 34, 000kg |
| Design Temperature | -196 Centigrade |
| External Dimensions | 6058mm(20' 0") X 2438mm(8' 0"T) X 2591mm( 8' 6") |
| Valves | Main Cryogenic Disconnecting Valve, Emergency Shut |
| Design Standard | ISO CCS/Lr/Dnv |
(1) Capacity: 19.8m3/20.8M3
(2) WP: 0.8/1.6/1.7/1.8/2.4MPA;
(3) Standard: GB150/
(4) Certificate; CCS/LR/DNV
Introduction:
A tank container is built to theISO Standard, making it suitable for different modes of transportation. Both hazardous and non-hazardous products can be transported in tank containers.
Technical Details:
(1) Model: ISO-T75 20M3-1.6MPA
(2) Standard:
(3) Capacity: 20m3;
(4) WP: 1.6MPA;
(5) Design Pressure: 2.11MPA;
(6) Medium: Liquid Oxygen; Liquid Argon; Liquid Nitrogen; Liquid Natural Gas;
(7) Insulation: Multi-Layer super vacuum insulation;
(8) Dimension: 6058mm X 2438mm X 2591mm
(9) Max Loading Weight: 34000KGS;
(10) Testing: RT / Ultra / Impact / Penetration / Cleaning / Heat Treatment / Pressure / Mechanical / Helium / Painting
(11) Certificate: LR
(12) Delivery Time: 60DAYS.

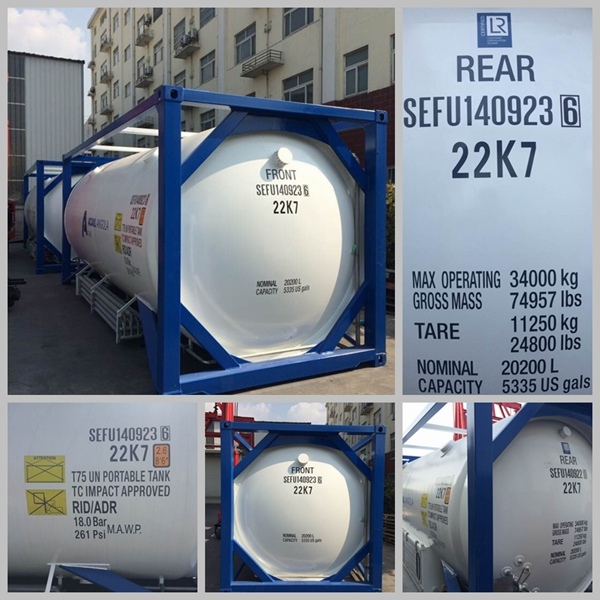

Tank Container Picture Show
