ISO Standard Certification T75 Tank Container

Product: ISO IMO7/ T75 Tank Container:

(1) Capacity: 19.8m3/20.8M3

(2) WP: 0.8/1.6/1.7/1.8/2.4MPA;

(3) Standard: GB150/

(4) Certificate; CCS/LR/DNV

Introduction:

A tank container is built to theISO Standard, making it suitable for different modes of transportation. Both hazardous and non-hazardous products can be transported in tank containers.

Technical Details:

(1) Model: ISO-T75 20M3-1.6MPA

(2) Standard:

(3) Capacity: 20m3;

(4) WP: 1.6MPA;

(5) Design Pressure: 2.11MPA;

(6) Medium: Liquid Oxygen; Liquid Argon; Liquid Nitrogen; Liquid Natural Gas;

(7) Insulation: Multi-Layer super vacuum insulation;

(8) Dimension: 6058mm X 2438mm X 2591mm

(9) Max Loading Weight: 34000KGS;

(10) Testing: RT / Ultra / Impact / Penetration / Cleaning / Heat Treatment / Pressure / Mechanical / Helium / Painting

(11) Certificate: LR

(12) Delivery Time: 60DAYS.

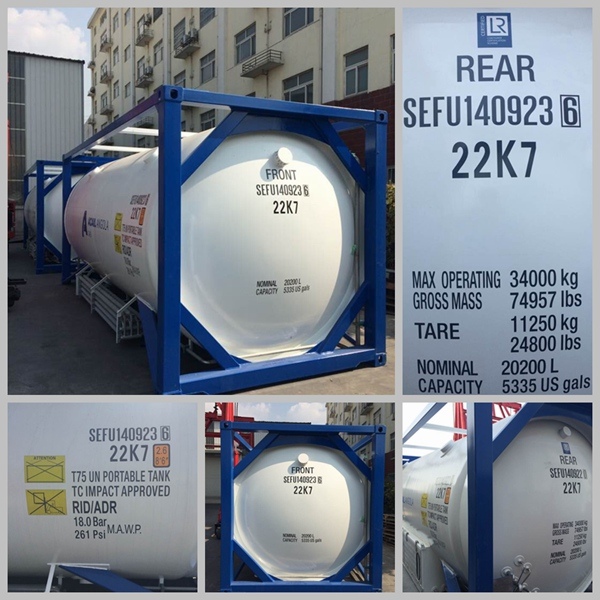

Tank Container Picture Show

FAQ:
1. What is the capacity of this Tank Container?
20m3

2. What is the delivery time?
60 Days once deposit paid and workshop drawings /confirm/ied.



Any questions and inquires, pls do not hesitate contact us.

Name: Peter
Detailed Address: No. 222, Meidan Road, BaoShan District, Shanghai, China 201908
TEL: 0086-21-66019678 Fax: 0086-21-66019679
Cell:0086-18817554385

20ft-IMDG T75 ISO TANK CONTAINER
Norminal Capacity	: 20, 000 Liter	(5, 283 Gallons)
MAWP	: 0.78-2.4 Mpa
Loading Medium	: LAr, LO 2 , LN 2 , LCO 2 , LNG
Maximum Gross Mass	: 34, 000 Kg	(74, 800 Lbs)
Design Temperature	: -196 Centigrade
External Dimensions	: Length: 6058mm	Width: 2438mm	Height: 2591mm
	: Length: 20' 0"	Width: 8' 0"	Height: 8' 6"
Heat Insulation	: High vacuum multi-layer
Valves	: Main cryogenic disconnecting valve, emergency shut valve and safety valve
Design Standard	VIIIDiv. 1, RID/ADR, IMDG, TPED
	< Supervision Regulation of Pressure Vessel>
