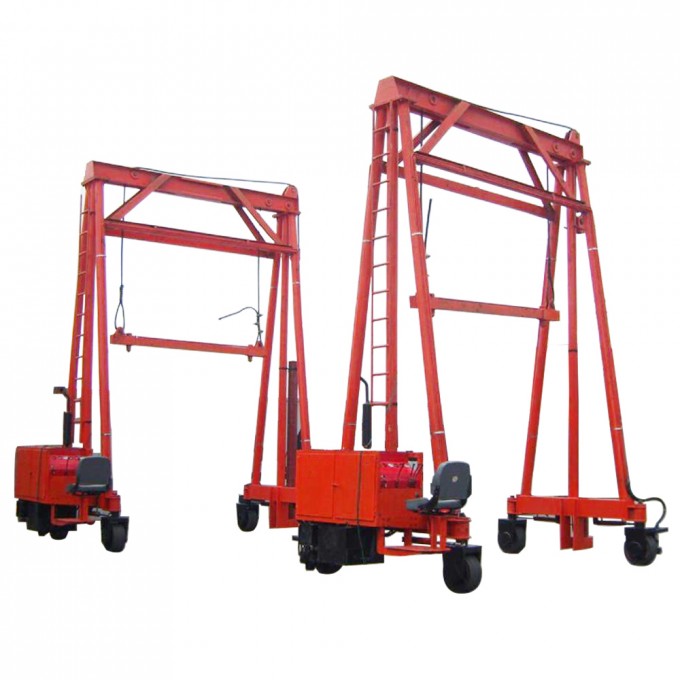

36ton Factory Price Container Crane (JD36T)

36ton factory price Container Crane (JD36T)

Characteristics:

1. The crane is suitable to load and unload standard container, tank container, large size steel structure and special type material.
2. The crane adopts GM hydraulic motor, whose advantages are large torque, low noise, high-efficiency transmission, excellent starting stability with high and low rotating speed.
3. B490 diesel engine in the crane produces large output power with low fuel consumption.
4. All components are designed for the durability and reliability of the crane, such as the high pssure oil pipe, dual-function counterbalance valve, high-strength aluminum alloy gear pump and heavy load solid tire.


2 Function:
This container crane is used for lifting and moving container in middle and small port, which is simple and operated easily. Specially, be suitable for container lifting and moving in small place, such as factory, dock, truck station and so on. After finishing work, it can be moved to side of square or street. So it is a good and economic machine for lifting and moving container.


3. Feature
A) With multi-cylinder diesel engine, there are character of a low noise and small vibration.
B) With power steering, big diameter 200 mm cylinder, it has large lifting capacity and a good perching ability speed, safely and high efficiently.
C) It consists of two separate unit, each of unit has four wheels and two diving wheel, Max. Turning radius 90° , so it may turn and move many kind of container in any direction easily.
D) Lifting Capacity: Standard model: 36 ton;
Strengthen model: Max. 60 ton
E) Unique hook make the operation accurately and quickly, no more than a few minutes.
While lifting container, the truck may be put in or put off.

Model				JD30T	JD36T	Model		JD40T
RatedCapacity			ton	30	36	RatedCapacity	ton	40
Max.LiftingSpeed		NoLoad	mm/s	35		Max.LiftingHeight	mm	1980
		FullLoad	mm/s	30		Max.LiftingSpeed	m/s	0.03
Max.FallingSpeed		NoLoad	mm/s	25		Deadweight	ton	9.3
		FullLoad	mm/s	25		EngineModel	B	490
Deadweight			ton	7	7.5	EngineRatedOutput	kw/rpm	37/2650
EngineRatedOutput			Kw	22		Max.Torque	Nm/rpm	148/1800-1900
Max.TravellingSpeed(unladen)			Km/h	3.5		Max.TravellingSpeed	Km/h	2
PressureofSteeringSystem			MPa	13	15	DiameterofLiftingCylinder	mm	203
RotationAngleofturningwheel			deg	110.		PressureofLiftingSystem	Mpa	16
Min.RightAngleAisleWidth			mm	3200		DiameterofSteeringCylinder	mm	75
RatedTorqueofHydraulicMotor			Nm	101		PressureofSteeringSystem	Mpa	15
Min.GroundClearance			mm	110		Min.TurningRadius	mm	4500
Max.HeightofLiftingBeam			mm	4460		HydraulicMotorTorque	Nm	949
Min.HeightofLiftingBeam			mm	2270		RotateSpeedofHydraulicMotor	rpm	6-400
LongitudinalTread			mm	2205		DiameterofDriveWheel	mm	450
CrosswiseTread			mm	3725		Min.GroundClearance	mm	80
CrosswiseInsideWidth			mm	3275/3380
OverallDimensions	OverallLength		mm	5055		OverallLength	mm	4900
	OverallWidth		mm	2655		OverallWidth	mm	2500
	OverallHeight		mm	6320		OverallHeight	mm	6600
