ISO GB150 Standard Certification T75/T4 Tank Container

DNV2.7-1 / EN12079-1 Tank Offshore Container:

(1) Capacity: 19.8m3/20.8M3

(2) WP: 0.8/1.6/1.7/1.8/2.4MPA;

(3) Standard: GB150/

(4) Certificate; CCS/LR/DNV

Introduction:

A tank container is built to the ISO Standard, making it suitable for different modes of transportation. Both hazardous and non-hazardous products can be transported in tank containers.

Technical Details:

Model	ISO-T75 20M3-1.6MPA
Standard
Capacity	20m3
WP	1.6MPA
Design Pressure	2.11MPA
Medium	Liquid Oxygen; Liquid Argon; Liquid Nitrogen; Liquid Natural Gas
Insulation	Multi-Layer super vacuum insulation
Dimension	6058mm X 2438mm X 2591mm
Max Loading Weight	34000KGS
Certificate	LR
Delivery Time	60DAYS

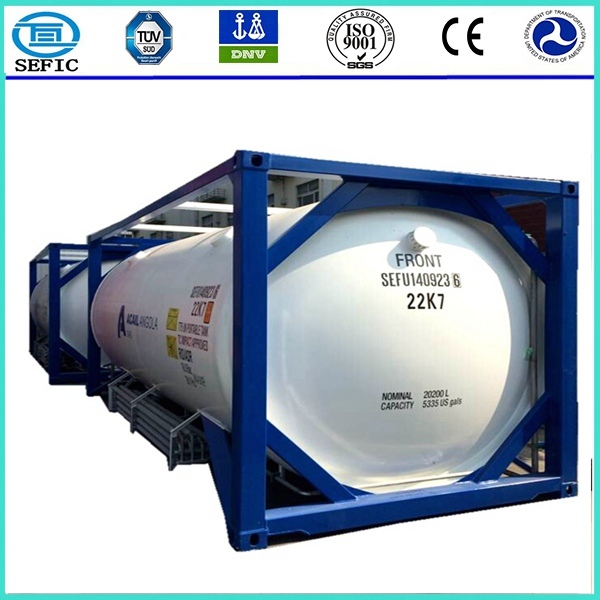

Tank Container Picture Show








FAQ:
1. What is the capacity of this Tank Container?
20m3

2. What is the delivery time?
60 Days once deposit paid and workshop drawings /confirm/ied.



Any questions and inquires, pls do not hesitate contact us.
