Detailed Description
Product: ISO IMO7/ T75 Tank Container:
(1) Capacity: 19.8m3/20.8M3
(2) WP: 0.8/1.6/1.7/1.8/2.4MPA;
(3) Standard: GB150/
(4) Certificate; CCS/LR/DNV
Tank Co

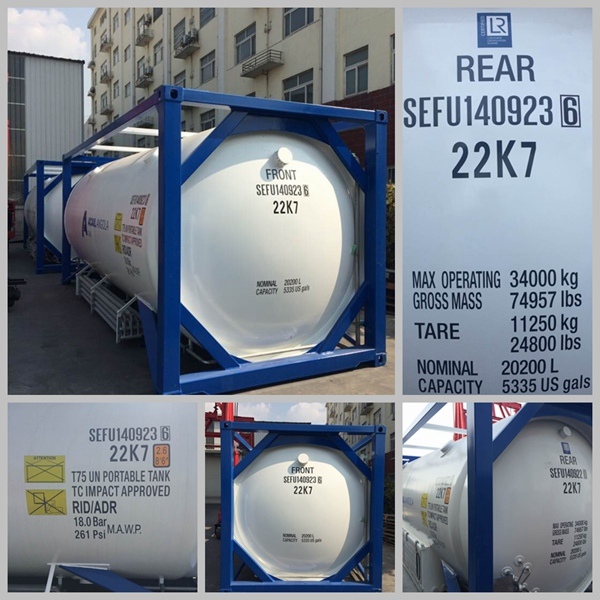

ntainer Picture Show:
Tank Co
ntainer Production Process
Tank Container Work Shop
Introduction:
A tank container is built to the ISO Standard, making it suitable for different modes of transportation. Both hazardous and non-hazardous products can be transported in tank containers.
Technical Details:
(1) Model: ISO-T75 20M3-1.6MPA
(2) Standard:
(3) Capacity: 20m3;
(4) WP: 1.6MPA;
(5) Design Pressure: 2.11MPA;
(6) Medium: Liquid Oxygen; Liquid Argon; Liquid Nitrogen; Liquid Natural Gas;
(7) Insulation: Multi-Layer super vacuum insulation;
(8) Dimension: 6058mm X 2438mm X 2591mm
(9) Max Loading Weight: 34000KGS;
(10) Testing: RT / Ultra / Impact / Penetration / Cleaning / Heat Treatment / Pressure / Mechanical / Helium / Painting
(11) Certificate: LR
(12) Delivery Time: 60DAYS.
FAQ:
1. What is the capacity of this Tank Container?
20m3
2. What is the delivery time?
60 Days once deposit paid and workshop drawings /confirm/ied.
Any questions and inquires, pls do not hesitate contact us.
Name: Peter
Cell:0086-18817554385
TEL: 0086-21-66019678 Fax: 0086-21-66019679
Cell:0086-18817554385
Detailed Address: No. 222, Meidan Road, BaoShan District, Shanghai, China 201908 Product Image
