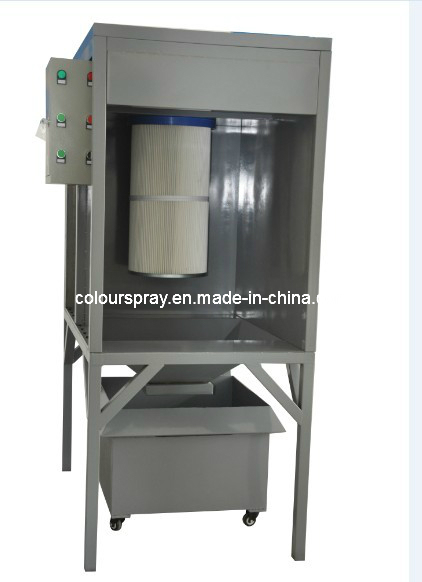

Small Powder Painting Booth for Car Bike Metal Parts

Small painting booth for car bike metal parts

Keywords: Powder Coating Booth, Paint Booth, Paint Spray Booth, Powder Booth, Coating Chamber

Booth size is 700width x 1000 height x 800 depth

Model	COLO-S-0711
Booth Type	Closed
Operator dimensions	700width x 1000 height x 800 depth
Overall dimensions	1000width x 1900 height x 1600 depth
Weight	150kg
Power supply	Electric
Nominal power	1.5kW
Voltage	380V
Frequency	50-60Hz
Filters	Polyester

Filters count	1
Filters hang type	easy for change
Filter cleaning system	Pneumatic
Air consumption	5100m3/h
Warranty	12 months

As well as a standard range of open faced dry backed spray booths, we also offer industrial open spray booths and spray shops to individual customer requirements. Integration of drying systems into spray shops is a viable project. Both hot and cold filtered air replacement units can easily be integrated into existing factory zones.
Our open spray booths are custom built to the customer's requirements. We offer a range of booths from 1.0m wide upwards and from 2.0m high upwards. Within reason, there is no maximum length to our open spray booths.
