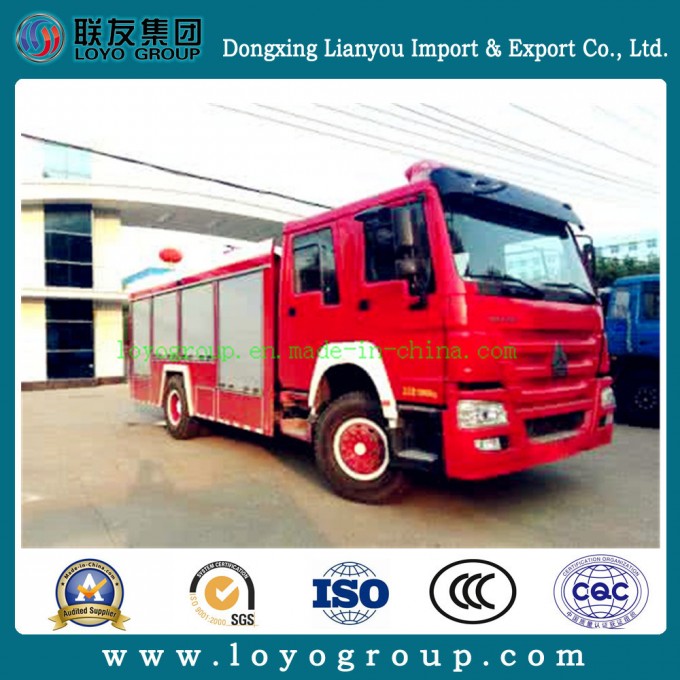

Sinotruk HOWO Mini Emergency Fire Fighting Truck for Sale

HOWO urban battle fire truck is mainly used in the enterprise and urban area, etc, as the forerunner and backbone of the fire-fighting force in an accident; it has the dual function of working and guide, with the characteristic of high mobility, high-power, multi-occupant, information.

Matching advanced assmble such as MC 11 engine with high power, HW transmission (AMT is optional), and MAN rear axle, etc not only ensure its reliability but also its strong power.

New developed four-door cabin special used for fire truck has the characteristic of profession, large space, multi-occupant, humanization, matching the seat special used for fire truck, its interior height can be up to 1720mm

Electronic system for fire truck adopts CAN line technology, with the function of diagnosing, fault information record, which can meet the requirements of high power consumption for body and refitting at the same time.

The layout of chassis is considering the requirement of body, which is compact and reserving the chance for refitting in maximum.

The design of vehicle fully considers the characteristic man-machine communication, which can provide asafe, comfortable, convient environment for driving.

INOTRUK HOWO fire truck
				Driving Type 4x2
Model				ZZ1167M4617C5
Engine	Model			WD615.62
	Horsepower			266 HP
	Type			6-cylinder in line, 4-stroke, water-cooled, turbo-charged &inter-cooled, direct injection
	Displacement			9.726L
	Make SINOTRUCK (CNHTC), Euro 2emission standard,
Cab	Four doors ,2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,air conditioner ,with transverse stabilizer,with 4-point support fully floating suspension +shock absorber
Clutch	SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
Transmission	SINOTRUK HW13710 transmission ,10 forward and 2reverse
Front Axle	SINOTRUK HF7 Front Axle,HOWO 7-ton front axles of equipped with drum brakes.
Steering	German ZF8089 Steering Gear Box ,hydraulic steering with power assistance
Rear Axles	SINOTRUK ST16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles,enforced STR axle; can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for customers.
Brake System	Service brake:dual circuit compssed air brake
	Parking brake (emergency brake):spring energy,compssed air operating on rear wheels
	Auxiliary brake:engine exhaust valve brake
Tyres	Tyres: 11.00R20 radial tyre with 1Spare tire
The layout of vehicle body	five aluminium alloy door on both sides and behind
	thefront is water pump chamber on each side 4in total ,rear is equipment boxes, middle is water tank
	Fire GunWater range:≥60m
	Tank fixed: rigid connection to the chassis frame
	water tank capacity:8000 litre
	The vehicle was formed by the Firefighters crew room and vehicle body. equip with fire monitor on the roof of vehicle, Extended cab, ride comfort, centralized operation, easy maintenance. With power take off ,can achieve watering while walking.Pump chamber is located on the front of the vehicle, Set aluminum rolling doors on both sides and behind, set internal lighting. Located on both sides of the pedals, non-slip design. The pedal box can be placed some of the commonly used equipment, set ladder at rear of the vehicle, an appropriate location. Equipment boxes is located on the rear of the cab, set aluminum rolling doors on both sides, set internal lighting. Located on both sides of the pedals, non-slip design. Set sliding tray and storage box in the Equipment boxes and the pedal box. The porous steel structure is easy for equipment clamping and position adjustment. Reserved big space, the user can place the equipment according to their demand.Roof: Non-slip for walkingManhole: diameter 450mm. Overflow: diameter 75mm ;water filter:diameter 63mm Release the excess water: set aDN40 outlet which release the excess water, with ball valve.The control panel includes cab control and pump room control two parts: cab control: upload electrical master switch, upload gas path switch, Pump off gear, Lights alert, lighting and Signal device control. pump room control: Mixing ratio setting, Control valve switch, Parameter display, Status display.Battery DC24V(12*2,DUAL Battery) Vehicle lighting: use 24V voltage. Firefighters room, pump house and equipment boxes with lights, set lighting and indicator on the Manipulate dashboard, To facilitate operator operates and observation.
Oil Tank	D type-300L Aluminum alloy fuel tank
Dimensions	Wheel base:3825+1350
	Overall length xwidth xheight7990*2496*2958
Performance	Maximum drving speed (km/h)90
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer
	be suitable for long distance transportation of inland and ocean.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

Our Company
The LOYO Group originated from Dongxing Lianyou import &Export Co,.Ltd. which was founded in 2008. Its headquarter locates in Dongxing City ,Guangxi China, which is the leading-edge of China-ASEAN border and the only city connecting with ASEAN area both by land and water. Our company is an authorized dealer and exporter of China National Heavy Duty Truck Group Co., Ltd (SINOTRUK) ,having the autonomy right of import and export businesses .Currently we have established an excellent and professional sales team and after-sales service team.

The LOYO Group's main business includes dump truck manufacturing &modification ,sales and service of all series SINOTRUK(CNHTC) product including dump truck ,off-road mining truck, tractor, cargo truck, concrete mixer truck, water tanker ,oil tanker and other special truck and parts. Concerning the mechanical power aspect, we have covered horsepower level from 90Hp to 540Hp, which can meet customers' different needs. Our target is to become aworld renowned supplier and providing customers with cleaner, more energy-saving, safe, more reliable and comforter transportation vehicles.

1. OUR ADVANTAGE:
(1)Competitive Factory Price and Excellent Quality
(2)More than 10 years' experience as amanufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 50 countries and regions

2.AFTER SERVICE:
LOYOGROUP PROMISE: We are always at your service to help purchase any spare parts and ship to our clients as per client's requirement.
For axles, the guarantee period is one year or 150,000 kilometers. Free maintenance is only for main parts of axle: axle beam, hub, and camshaft; excluding easy worn-out parts.
For chassis, the guarantee period is one year and the trailer must carry the Tons according to the standard capacity; If the problem caused by overload, we will not be responsible.
For Suspension, the guarantee period is 6month.
For Kingpin, the guarantee period is one year.
For landing gear, the guarantee period is one year.
