Motorcycle Parts Horns H&L Lound Speaker Bike Horn

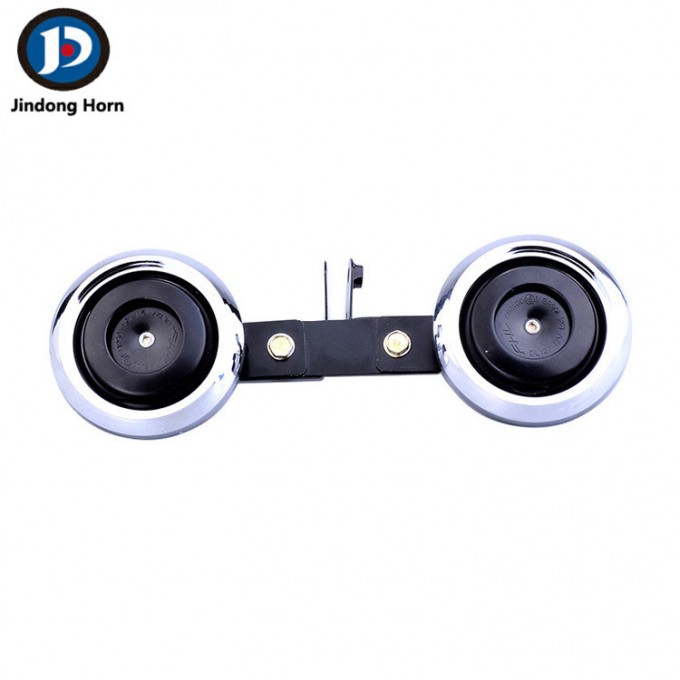

Product show:



Techinical Parameter

Model	DL-127HL
Diameter	90mm
Current	<3A
Frequency	H:470+-30HZ L:420+-30HZ
Sound Level	110DB
Suitable for	All kinds of 12v motorcycles
Voltage	12V
Implementation STD	GB/7258-2004

Features:
1.The real test in our laboraroy that show to us the horn can get 110db at least.
2.Super long surround sound,it make the sound powerful and comfortable so that decrease the trafficaccident.
3.We used the imported high quality manganese steel to make the soundboad so that can make the fullest possible "BABA~~" sound.
4.We use the most advanced Teflon coat technology.I can be dust-proof and water-proof effectively(We must inform you that there are not have any horn factory can make auniversal horn that all waterproof).It prolong the lifetime of the horn effectively.
5.We used the 100%ABS material to make the horn bulb.It has very good Heat resistance,impact resistance,anti-corrosion so that can pvent the dinas and the heat of the engine damage for the horn.Anyway,it also has high hardness characteristic.It can drop from 1meter that is not easy to break.

What should Inote when Iam Installing and using?

a. Snail down or 45 degree Angle installation, Prevent waterinto coiled directly
b. If you are not special peason ,dont change the angle degree of Steel Support,or it will change the Original air gap
c. mounting torque of Steel support is between 6Nm to 11Nm.
d. The horn support should be mounted to Solid surface to avoid resonance.
e. In order to avoid contact with other parts of the car,The horn should be connected with horn support and installed to wide and Ventilated place.
f. Nonpolarity requirements for this product, the connected place of the wire should solid enough, Double horn should installed on solid part of car body in parallel way.
g. Keep away from car motor and much Radiation place. Not be too low mounting.
h. Don't keep the horn on for 60 seconds, or it will lead to the coil burned down.
i. Using copper wire, more than 1.5mm for wire Diameter, the wire length should less than 4m.
j. Standard mounting Voltage, input working current more than 30A,12V horn voltage: 9-14.5V


Our company is aprofessional manufacturer and exporter that is concerned with the design ,development and production of auto parts ,we are
fully committed to producing technologically advanced auto parts.
