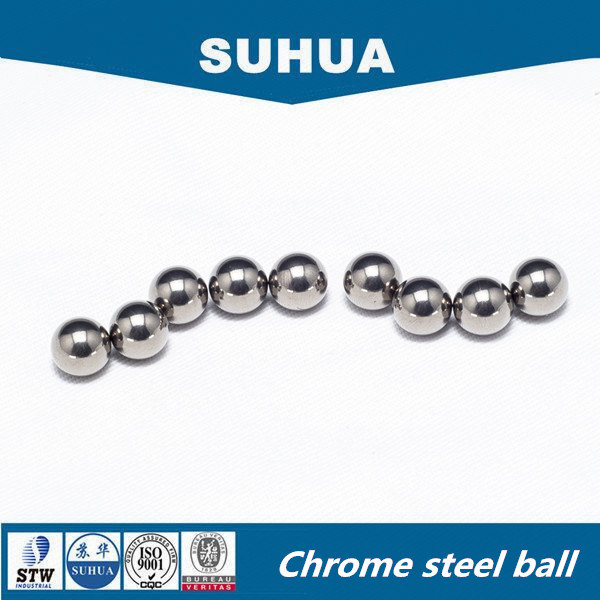

Chrome Steel Ball for Bicycle Parts

Chromesteel ball

Chrome steel ball/bearing steel ball
1. Material		AISI 52100/ 100Cr6/ 100C6/ SUJ2/ Wks 1.3505
2. Size Range		0.6mm-180mm
3. Grade		G10-1000
4. Hardness		58-65 HRC
5. Characteristic		(a)Mainly used in bearings (b)Good hardness (c)Good resistance to deformation with excellent wear resistance (d)Low corrosion
6. Magnetic		Yes
7. Application		Ball bearings, bicycles, automobile industry
8. Chemical composition
	C%	Si%	Mn%	S%	P%	Cr%	Mo%	Cu%	Al%	O%
min.	0.93	0.15	0.25	---	---	1.35	---	---	---	---
max.	1.05	0.35	0.45	0.015	0.025	1.65	0.1	0.3	0.05	0.0015
9.Packing		Standard: 10kg or 20kg per carton,1 ton per pallet or as customer required
10.Conditioning		dry or oiled
11.Delivery time		Stock within ashort time or 35 days.

Product information:
This is an oil hardened steel, which is universally used by the ball and roller bearing industry. This
steel has very good hardness, very good physical characteristics and excellent wear resistance.
1. Offer maximum material strength and fair corrosion resistance.
2. Characteristic: resist alcohol, food environments, fresh water, many petroleum products, organic
materialsand steam.
3. Applications: bearings, valves, locking mechanisms, fasteners and quick-disconnect couplings.

Main Products

Item	Name	Material
1	Stainless Steel Ball	AISI304/304L/316/316L/420/420C/440C
2	Chrome Steel Ball	AISI 52100/ 100Cr6/ Gcr15/ SUJ2
3	Carbon Steel Ball	AISI1010/1015/1086
4	Brass/Copper Ball	H62/H65
5	Aluminum Ball	5050/7A03
6	Torlon Ball	4203/4301
7	Coated Ball	gold nickel zinc copper

Equipment&process

Manufacture process of steel balls
Step 1heading		Balls blanks are cold headed from rolls of wire.
Step 2flashing		Rolling balls between two hard alloy plates to removes the slight band And small protrusions.
Step 3heat treat		Heating balls to ahigh temperature in furnace and quenching balls in aliquid bath.
Step 4rough grind		Rolling balls between the face of afixed iron plate and avery hard fire-grit grinding wheel.Then rolled the hardened ground balls between two cast iron plates.
Step 5cleaning		The final production operation cleans the finished balls and adds ashiny luster.
Step 6final Inspection		Balls are gauged, visually inspected and subjected to other quality tests to insure Every customer's specifications are achieved.
Step 7packaging		The balls are packaged in accordance with customer specifications for shipping.

Packaging and Shipping
Packaging
Type 1:Plastic bag +box +carton +wooden pallet
Type 2:Plastic bag +carton +wooden pallet
Type 3:Our package :Export cartons, steel drums, wooden pallets


Shipping:
1.EXPRESS
2.AIR
3.SEA


Certification:
1.ISO3290
2. BV
3. SGS
4. TS16949

Company show
1.Established since year 1986, more than 27 years experience and specialized in steel balls manufacturer
And ball related products.
2.High pcision instruments and technical staffs.
3.Offer the good quality service and product with short delivery times.


Our services
1.All the inquiries will be reply within 24 hours
2.For the steel ball, please kindly let us know the size, material, grade and quantity.
3.For the bearing, please kindly let us know bearing type, material, accuracy grade/class, and
Quantity

FAQ
1.What kind of steel balls can supply by huari steel ball Co., Ltd.?

Material	Carbon, chrome, stainless, aluminium, copper, brass and so on.
Size range	0.8mm-150mm
Grade	G10-1000
Packing	Standard or as customer required
Delivery	Stock within ashort time or 35 days

2.Some other question?

Q1.-- if 'I' want small quantity and fast delivery.Which way of shipping is advised ?
A1.-- by expss.
Q2.-- how many quantity will be packed in one carton or one pallet ?
A2.-- 20 to 25kg per carton,1 ton per wooden pallet.
Q3.-- what's the lead time ?
A3.-- if in stocks,2-5days;Or ,it will take 20-35days,depend on the quantity.
Q4.--which kind of payment will be accepted ?
A4.-- T/T, west union, L/C, ...

Why choose us

1.100% guarantee for our quality.
2.Our products have BV and ISO certificate.
3.Professional manufacturer with 30years experience.
4.Our steel balls and bearings are sold all over the world.
5.Have advanced production equipment,to ensure that each step excelsior.
6.Tseting equipment to ensure that every steel ball is inspected under serious quality standard.
7.Strong packing ensure the goods delivered to customers in good condition.
8.Professional export sales and service team.To make sure that your purchase under comfortable way.
