Golden Motor Magic Pie Series Ebike Conversion Part 1000W

Golden Motor Magic Pie Series Ebike Conversion Part 1000W

For short trips, the efficiency and convenience of electric bikes is hard to beat. Here are some statistics: 40% of all trips are made within two miles of the home, and 50% of workers commute five miles or less to work.

Golden Motor is the pioneer and leader in this industry. Now with Golden Motor bike conversion kits, you can easily convert your ordinary bicycle or trike into electric version.

24V/36V/48V 400W/700W/1000W (16''/18''/20''/24''/26''/27.5"/28"/700c Full size available)

Contents:

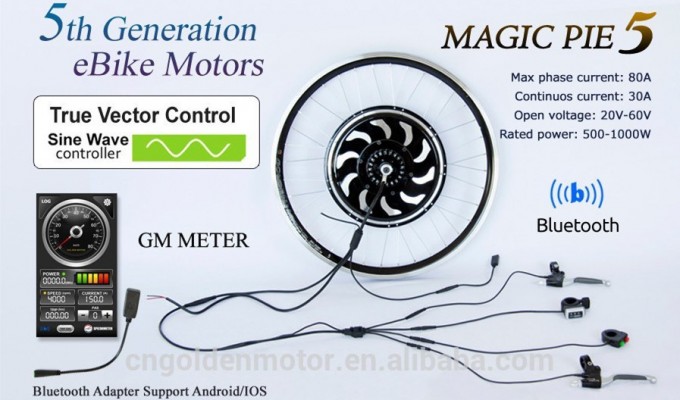

1.MagicPie5 motorized wheel(hub motor mounted in the rim)
2.Sine wave controller(built-in-motor)
3.Throttle with LED battery gauge(thumb or twist)
4.Brake levers(to cut off power and engage regenerative braking)
5.Control switch(cruise, horn, etc)
6.Wires and plugs(all necessary to install kit on your bike)
7.Optional USB programming cable(program controller on windows based PC)
8.Optional Bluetooth adapter(program controller and display real-time data on Android/IOS smartphone)
9.Optional phone holder(fix phone on handlebar)

We can also provide following items if you need:

1. LiFePO4 battery
2. Rear rack
3. Tire and tube
4. Disc brake and activator
5. 6/7-speed cassette (SHIMANO)
6. Front / rear LED light
7. LCD display
8. PAS


What make SmartPie and MagicPie No.1 E-bike conversion kits?

1.Brushless gearless motor: no gear means reliable, quiet, high efficiency, long working life, maintenance free.

2.Built in controller: no messy exposed wirings, less connection problems, easy to install, neat looking products.

3.Sine wave controller with true vector control: smooth control, more responsive, higher reliability, higher efficiency, higher torque, lower noise, no vibration at low speed.

4.Bluetooth programmable controller: control parameters programming via Bluetooth wireless connection, customizable for different EV applications.

5.Strong climbing torque: achieved by using strong rare earth magnets, innovative motor design, and top quality MOSFETS used.

6.Open voltages 24/36/48V: user adjustable power and speed, self upgradable from 24V to 48V to meet local regulations.

7.Built-in cooling fan: removing 60% heat, better performance for motor and controller, higher climbing capability.

8.Regenerative braking function: when braking, the motor becomes generator to charge battery.
