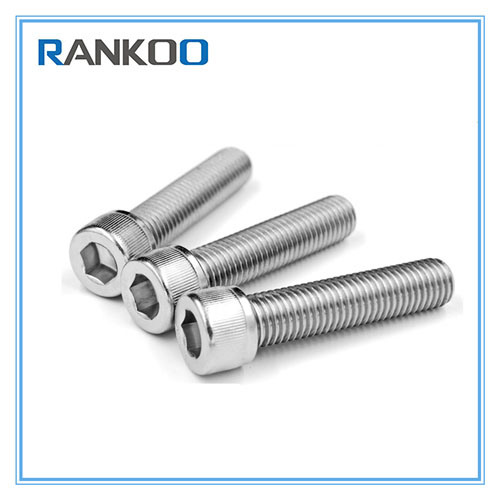

Standard | DIN912 |
Material | SS304, SS316 |
Diameter | M3~M36 |
Head shapes | Hex head |
Screw thread | Coarse thread |
Screw tip | Flat point |
Finish | A2-70/A2-80/A4-70/A4-80 |
Features | Good anti-corrosion ability |
Grade | A2, A4 |
Certification | ISO9001:2008, SGS, RoHS, Bureau Veritas |
OEM service is also available |
Specification | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 |
Thread Distance | 0.5 | 0.70 | 0.80 | 1.00 | 1.25 | 1.50 | 1.75 | 2.00 | 2.00 | 2.50 |
Hex across flats | 2.50 | 3.0 | 4.0 | 5.0 | 6.0 | 8.0 | 10.0 | 12.0 | 14.0 | 17.0 |
Hex hole deep,min | 1.3 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 10.0 |
Head diameter,min | 5.32 | 6.78 | 8.28 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 29.67 |
Thickness,max | 3.0 | 4.0 | 5.0 | 6.0 | 8.0 | 10.0 | 12.0 | 14.0 | 16.0 | 20.0 |
