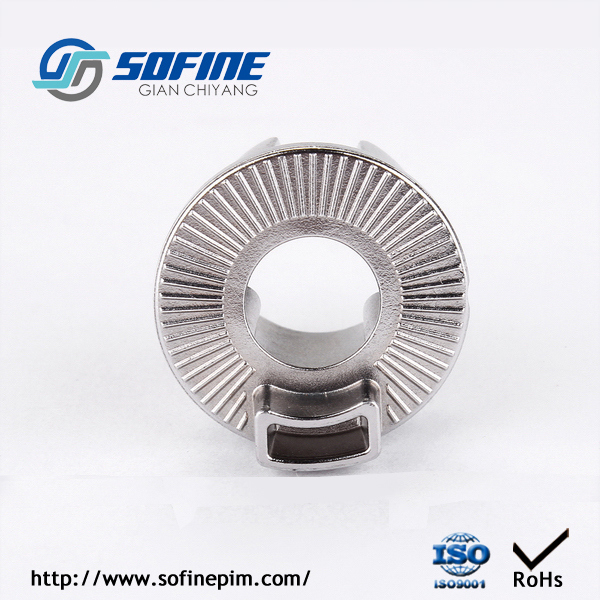

Metal Injection Molding MIM Components for Bicycle Parts

One Stop MIM Solution Provider

metal Injection Molding MIM Components For Bicycle Parts



Products Range:

MIM Processing	Molding, Injection, Debinding,Sintering ,Second Operation
Applied Software	PRO/E, Auto CAD, Solid Works, UG, CAD/CAM/CAE
Material	Iron-based Alloy,Stainless Steel,Tungsten Alloy,Carbide Alloy,Tool Steel , Fine Ceramic , Titanium Alloy
Surface Finish	Electroplate,PVD,Sandblasting,Painting,Polishing,Laser Engraving etc.
Tolerance Precision	+/-0.05~0.02mm, can also be customized.
Dimension	As per customers' request
Part Color	Silver, Red, Blue, Gold, Oliver, Black, White & etc.
Samples	Acceptable
Quality System	100% inspection before shipment
Lead Time	based on the quantity of order (Usually 45days)
Packing	Plastic tray, plastic bag and Carton, full consider of practical situation
Shipping	By sea, By air, By DHL, UPS, TNT & etc.
Certification	All products SGS,CTI and RoHs approved, All material REACH approved.

TheMain MaterialFor MIM
MIM is applicable to wide range of materials which includes low alloy steel, stainless steel, tool steel, nickel-based alloys, tungsten alloy, carbide, titanium, magnetic materials, Kovar alloy and fine ceramics, etc.



Table 1 Typical MIM materials and applications:

Material System	Material Composition	Typical Applications
Low Alloy Steel	Fe-2Ni , Fe-8Ni	Automobile,machinery and other industries,particularly in structural parts
Stainless Steel	316L,17-4PH,420,440C	Medical equipments, clocks,watches
Carbide	WC-Co	Various tools,clocks,watches
Ceramic	Al2O3 ,ZrO2 ,SiO2	IT electronics, daily necessities,watches
Heavy Alloys	W-Ni-Fe,W-Ni-Cu,W-Cu	The arms industry, communications,daily necessities
Titanium	Ti,Ti-6Al-4V	Medical and military structural parts
Magnetic Materials	Fe,NdFeB,SmCo5,Fe-Si	Magnetic properties of the various components
Tool Steel	CrMo4,M2	Tools

Table 2 Typical properties of several MIM materials:

Materials		Density	Hardness	Tensile Strength	Elongation
		g/cm³	Rockwell	Mpa	%
Fe-based alloys	MIM-2200(Sintered)	7.65	45HRB	290	40
	MIM-2700(Sintered)	7.65	69HRB	440	26
	MIM-4605(Sintered)	7.62	62HRB	415	15
	MIM-4605(Quenching and tempering)	7.62	48HRC	1655	2
Stainless steel	MIM-316L(Sintered)	7.92	67HB	520	50
	MIM-17-4PH(Sintered)	7.5	27HRC	900	6
	MIM-17-4PH(Sintered)	7.5	40HRC	1185	6
	MIM-430L(Sintered)	7.5	65HRB	415	25
Tungsten alloys	95%W-Ni-Fe	18.1	30	960	25
	97%W-Ni-Fe	18.5	33	940	15
Carbide	YG8X	14.9	HRA90	Bending Strength 2300
Fine Ceramics	Al2O3	3.98	HRA92	Bending Strength 2300

Manufacturing Equipment







FAQ
1.WhatisMIMtechnology?
MIM(metalInjectionMolding)isamanufacturingtechnologythatcombinestheshapemakingcomplexityofPlasticInjectionMoldingwiththematerialflexibilityofPowdermetallurgy.

2.Howtogetaquotation?
Pleasesendusdrawingsindigs,dwg,stepetc.togetherwithdetailedPDF.
Ifyouhaveanyrequirements,pleasenote,andwecouldprovideprofessionaladviceforyourreference.
CustomerInquiry→EngineeringCommunication→CostAnalysis→SalesAnalysis→QuotetoCustomer
»1-3WorkDaysOnly
»SubmitRFQwithcompletecommercialterms

3.Whatifwedonothavedrawing?
Sampleswouldbeavailable,andwewouldsendyoudrawingto/confirm/i.
Ofcourse,wewouldensurethesafetyofthedrawing.

4.Howtopay?
Forsmallquantity,wecouldprovidePaypal,Paypalcommissionwillbeaddedtotheorder.
Forthebigone,T/Tispferred.

5.Howtoship?
Forsmallquantity,wehavecooperationwithTNT,FEDEX,UPSetc
Forbigquantity,airorseawouldbeavailableforyoutochoose.

5.Whataboutthepackingdetails?
Weattachedournormalpackingdetails.
Ifyouhaveanyspecialrequirements,wewouldbewillingtohelp.
