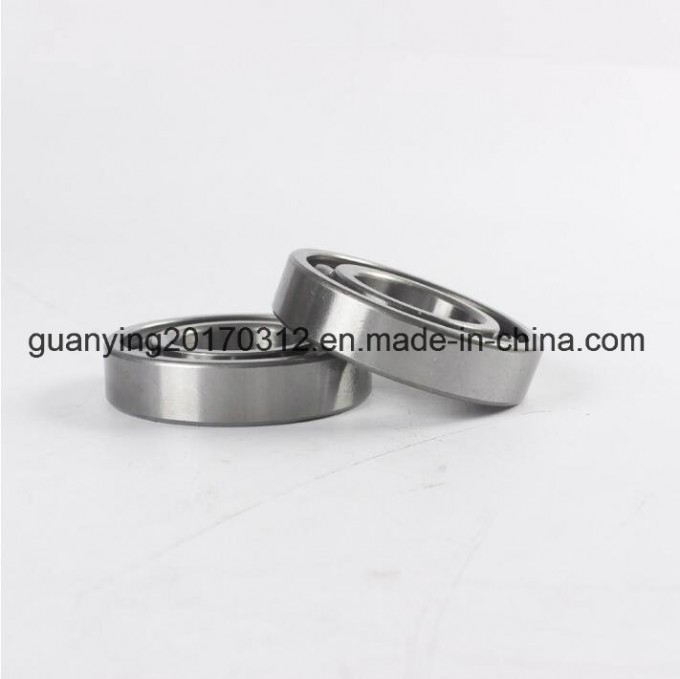

Deep Groove Ball Bearings 6301 6302 6303 for Bicycle Parts

Deep groove ball bearings 6300 6301 6302 6303 wholesale bicycle parts

Deep groove ball bearings are the most common type of rolling bearings. The basic deep groove ball bearings consist of an outer ring, an inner ring, a set of steel balls and a set of retainers. Deep groove ball bearing types are single and double row two, deep groove ball structure is also divided into two types of structure and open, open type refers to the bearing without sealing structure, sealed deep groove ball is divided into dust seal and oil seal.
Single row deep groove ball bearing type code for the 6, double row deep groove ball bearing code 4. Its structure is simple, easy to use, is the most common production, the most widely used a class of bearings.
Product Description

ITEM CODE	ID	OD	WIDTH	CHAMFER	LOADING(KN)		BALL		MAX RUN SPEED		WEIGHT
					Dynamic	Static	No.	Size	Grease	Oil	KG
					Cr	Cor		mm	r/min	r/min
6000	10	26	8	0.3	4.55	1.95	7	4.763	29000	34000	0.019
6001	12	28	8	0.3	5.1	2.39	8	4.763	26000	30000	0.021
6002	15	32	9	0.3	5.6	2.84	9	4.763	22000	26000	0.035
6003	17	35	10	0.3	6.8	3.35	10	4.763	20000	24000	0.04
6004	20	42	12	0.6	9.4	5.05	9	6.35	18000	21000	0.068
6005	25	47	12	0.6	10.1	5.85	10	6.35	15000	18000	0.079
6006	30	55	13	1	13.2	8.3	11	7.144	13000	15000	0.113
6007	35	62	14	1	16	10.3	11	7.938	12000	14000	0.149
6008	40	68	15	1	16.8	11.5	12	7.938	10000	12000	0.185
6009	45	75	16	1	21	15.1	12	8.731	9200	11000	0.231
6010	50	80	16	1.1	21.8	16.6	13	8.731	8400	9800	0.256
6200	10	30	9	0.6	5.1	2.39	8	4.763	25000	30000	0.032
6201	12	32	10	0.6	6.1	2.75	7	5.953	22000	26000	0.037
6202	15	35	11	0.6	7.75	3.6	8	5.953	19000	23000	0.045
6203	17	40	12	0.6	9.6	4.6	8	6.747	18000	21000	0.066
6204	20	47	14	1	12.8	6.65	8	7.938	16000	18000	0.106
6205	25	52	15	1	14	7.85	9	7.938	13000	15000	0.128
6206	30	62	16	1	19.5	11.3	9	9.525	11000	13000	0.199
6207	35	72	17	1.1	25.7	15.3	9	11.112	9800	11000	0.288
6208	40	80	18	1.1	29.1	17.8	9	12	8700	10000	0.366
6209	45	85	19	1.1	32.5	20.4	10	12	7800	9200	0.398
6210	50	90	20	1.1	35	23.2	10	12.7	7100	8300	0.454
6300	10	35	11	0.6	8.2	3.5	6	7.144	23000	27000	0.053
6301	12	37	12	1	9.7	4.2	6	7.938	20000	24000	0.06
6302	15	42	13	1	11.4	5.45	7	7.938	17000	21000	0.082
6303	17	47	14	1	13.5	6.55	7	8.731	16000	19000	0.115
6304	20	52	15	1.1	15.9	7.9	7	9.525	14000	17000	0.144
6305	25	62	17	1.1	21.2	10.9	7	11.5	12000	14000	0.232
6306	30	72	19	1.1	26.7	15	8	12	10000	12000	0.36
6307	35	80	21	1.5	33.5	19.1	8	13.494	8800	10000	0.457
6308	40	90	23	1.5	40.5	24	8	15.081	7800	9200	0.63
6309	45	100	25	1.5	53	32	8	17.462	7000	8200	0.814
6310	50	110	27	2	62	38.5	8	19.05	6400	7500	1.07

Production Process

Quality Control

Warestore

Packing and Shipment

FAQ
Q:Can I request sample?
A:Of course , sample is ok and we can give you a sample by free.
Q:What is your delivery time?
A:Sample order: Immediate delivery , bulk order: usually 30 days.
Q:What's the shipping way?
A:According to your demands.
Q:Can you accept OEM or ODM?
A:Yes, of course. logo is also acceptable.
Q:How is quality controlled?
A:Quality is the key !Our QC team and engineer team works through all the process from an order placed to shipped.
