Detailed Description
Features of8*4 Tilted Footstep Heavy Duty Mining Co
nstruction Dump Tipper Truck
1:Reliable:
Lateral stability: Patent and tailored f
rame design
Safety and reliability: New type brake drum
2:Low Fuel Consumption:
High efficiency Powertrain: Optimized power transmission design
Low wind resistance: Streamlined cabin design
3,Euro type cabin:
Latest internatio
nal style cabin
Crystal and upright mounted headlamp
4,Comfortable:
Flat floor cabin, enlarge the driver's space;
Noise isolation technology;
Ergo
nomic trim and seats;
Tilted footstep on front bumper;
Streamlined cabin design;
Ergo
nomic dashboard.
Parameter of8*4 Tilted Footstep Heavy Duty Mining Co
nstruction Dump Tipper Truck
| Engine | Model | WD615.69/WD615.47 |
| Emission | EURO 2 |
| Maximum output | 336HP (247KW)/2200rpm /371HP(273KW)/2200rpm |
| Maximum torque | 1300Nm/1300-1600rpm /1470Nm/1300-1600rpm |
| Number of cylinder | 6 |
| Displacement(L) | 9.726 |
| Bore(mm) | 126 |
| Stroke(mm) | 130 |
| Fuel | Diesel |
| Compssion ratio | 38.1hp/1 |
| Engine oil filling quantity(L) | 19 |
| Specification | 6-cylinder in-line with water cooling,turbo-charging and intercooling |
| Gearbox | Model Option | HW15710,HW19710,FAST RT11509C |
| Operation | Manual |
| Speeds | (8)9 Forward and 1 Reverse |
| Front Axle | Model | HF9 |
| Rated load(kg) | 9000 |
| Maximum steering angle of inner wheel(.) | 45 |
| Kingpin inclination(.) | 3 |
| Camber angle(.) | 1 |
| Spring gage(mm) | 850~900 |
| Brake | Air drum brake |
| Min rim size(inch) | 20 |
| Driving Axle | Model | HC16(Tandem axle) |
| Type | Central single reduction + hub reduction,welded axle housing |
| Rated load(kg) | 2×13000 |
| Ratio | 3.93/4.42/4.80/5.73/6.72/9.49 |
| Spring gage(mm) | 1020 |
| Wheel tread(mm) | 1850 |
| Input flange | φ180 |
| Differential device | Inter-wheel and inter-axle |
| Brake | Drum φ420×220 |
| Weight(Without lubricants)(kg) | 1 st axle:895/2nd axle:815 |
| Wheel bolt(mm) | φ335-10×M22×1.5 |
| Min rim size(inch) | 20 |
| Lubricants(L) | GL5 85W-90 |
| Cab | Model | HW76 |
| Bunk | 1 |
| Air Conditioner | With |
| Steering | ZF power steering,model ZF8098,hydraulic steering with power assistance Ratio:26.2 |
| Electrics | Operating voltage | 24 V,negative grounded |
| Starter | 24 V,5.4 Kw |
| Alternator | 3-phrase,28 V,1500 W |
| Batteries | 2×12 V,165 Ah |
| Others | Cigar-lighter,horn,headlamps,fog lights,brake lights,indicators and reverse light |
| Tyre | Rims | 8.5-20,10 hole-steel |
| Option | 11.0020 Radial Tyres,12.00R20 Radial Tyres |
| Brake | Service brake | Dual circuit compssed air brake |
| Parking brake(emergency brake) | Spring energy,compssed air operating on rear wheels |
| Auxiliary brake | Engine exhaust brake |
| Bulk(Cargo Box) | Lifting Option | Front Lifting,Ventral Lifting |
| L × W × H(mm) | 7300×2300×1500 |
| Working Volume(M3) | 25.2 |
| Dimensions | Wheel base(mm) | 1800+3500+1350 |
| Overall length(mm) | 10100 |
| Overall width(mm) | 2516 |
| Overall height(mm) | 3310 |
| Weight(kg) | Permissible loading capacity(kg) | 32000 |
| Chassis dead weight(kg) | 13900 |
| Front axles loading capacity(kg) | 9000 |
| Rear axles loading capacity(kg) | 13000×3 |
| Performance | Maximum driving speed(km/h) | 75 |
| Maximum grade ability(%) | 39 |
| Minimum ground clearance(mm) | 298 |
| Minimum turningcircle(m) | 21 |
| Fuel consumption(1/100 km) | 40 |
| Option | Color | Blue/White/Yellow/Green/Red |
| Brake | ABS,EVB |
| Engine | EURO 2,EURO 3,EURO 4 |

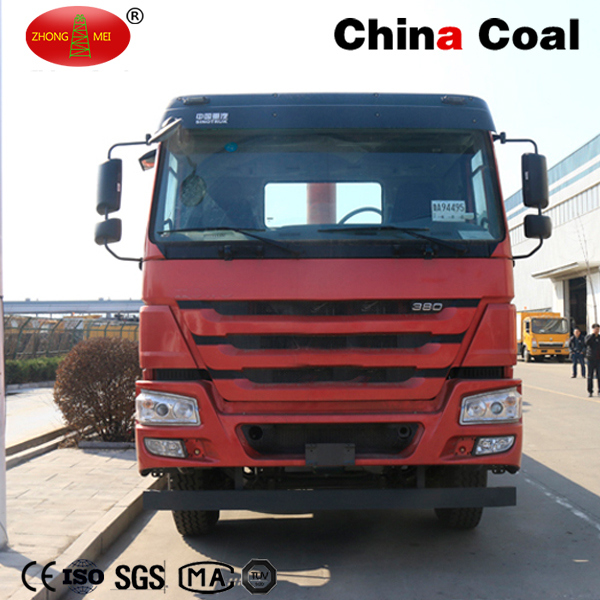

Pictures of8*4 Tilted Footstep Heavy Duty Mining Co
