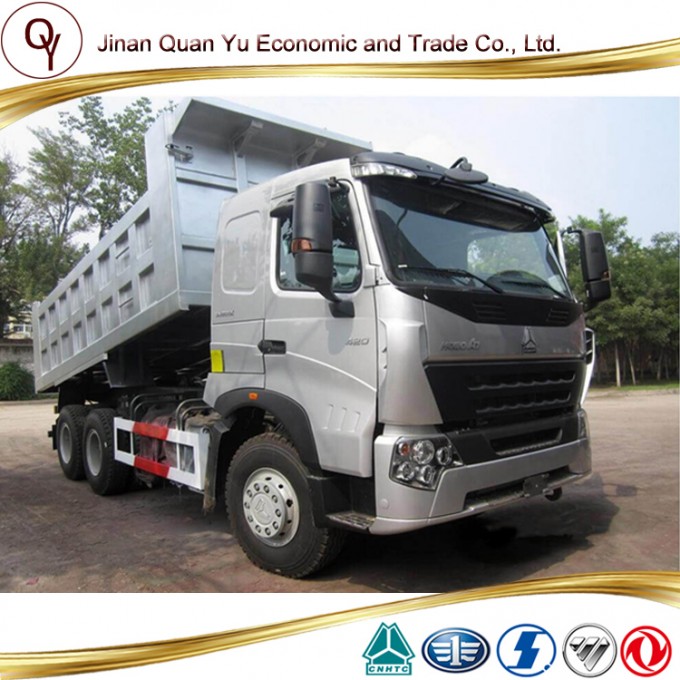

Sinotruk 6X4 HOWO 371HP A7 Heavy Dump Truck and Tipper Truck Used for Sale

The products we can make are: truck, trailer, heavy truck, light truck, truck parts, agricultural machinery, agricultural machinery parts and so on.

Table 6 x4 sinotruk HOWO dump truck parameters SINOTRUK HOWO 6X4 Dump Truck RHD/LHD Model ZZ3257N3647 Driving type: 6x4 Cabin HW76lengthened cab, basic equipment: one sleeper, new-style seat, adjustablesafety steering wheel,EURonew type heating & ventilating system; with largesize LCD screen, Germany VDO instrument and electric control block, four pointsfloating air suspension(front coil spring, rear air spring) and shock absorbers forhighway vehicle, four points floating air spring suspension and shock absorbersfor off-highway vehicle; transverse stability installation, double locking safety beltand external sun shade for various mode. Engine Horse power: 336HP Displacement: 9.726 (L) liter Max torque: 1100Nm Cylinder diameter / stoke: 126mm/130mm WD615.95E diesel engine, EURO 2emission standard. 6 cylinder in-line withwater cooling, turbo-charging & inter-cooling. 4 stroke direct injection dieselengine. Compssion ratio: 17:1. Full load fuel consumption: 193g/kwh; Ratedrevolution: 2200RPM. Engine net weight: 850KG Gear box Model: HW15710 Speed: 10drive, 2reverse. Max torque:1390NM HW19710 SINOTRUK 10speed manual type transmission, the first shift gearratio: 14.28, small ratio grade difference and big first shift ratio produce anexcellent performance on start up Gear ratio:1=14.28, 2=10.62, 3=7, 4=5.87,5=4.38, 6=3.27, 7=2.43, 8=1.80, 9=1.34, 10=1, R1=13.91, R2=3.18 Front axle 1xHF9, 9 ton axle load, rigid stub axle with double T- cross section and dish /drum brake. Rear axle 2 xHC16, HC16 heavy casting hub reduction drive axle with super loading ability, excellent performance on start-up with heavy load and slope climbing. Steering 8098power steering, hydraulic steering with power assistance. Clutch Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance. Brake Service brake: Dual circuit compssed air brake. Parking brake: Spring energy, storage air-break brake. Engine brake: Engine exhausted gas brake. Tire & Rim 11.00-20;12.00-20; 11.00R20; 12.00R20; Overall dimension (mm) 8214x2496x3450(LxWxH) Dump Box Dimension (mm) 5600/5400x2300X1500(LxWxH) Total Mass (Kg) 25,000 loading Weight (kg) 12580 Maximum Speed (km/h) 75 Color White, red, yellow, green, blue
Model	ZZ3257N3647	Driving type: 6x4
Cabin	HW76lengthened cab, basic equipment: one sleeper, new-style seat, adjustablesafety steering wheel,EURonew type heating & ventilating system; with largesize LCD screen, Germany VDO instrument and electric control block, four pointsfloating air suspension(front coil spring, rear air spring) and shock absorbers forhighway vehicle, four points floating air spring suspension and shock absorbersfor off-highway vehicle; transverse stability installation, double locking safety beltand external sun shade for various mode.
Engine	Horse power:		336HP
	Displacement:		9.726 (L) liter
	Max torque:		1100Nm
	Cylinder diameter / stoke:		126mm/130mm
	WD615.95E diesel engine, EURO 2emission standard. 6 cylinder in-line withwater cooling, turbo-charging & inter-cooling. 4 stroke direct injection dieselengine. Compssion ratio: 17:1. Full load fuel consumption: 193g/kwh; Ratedrevolution: 2200RPM. Engine net weight: 850KG
Gear box	Model:	HW15710
	Speed:	10drive, 2reverse. Max torque:1390NM
	HW19710 SINOTRUK 10speed manual type transmission, the first shift gearratio: 14.28, small ratio grade difference and big first shift ratio produce anexcellent performance on start up Gear ratio:1=14.28, 2=10.62, 3=7, 4=5.87,5=4.38, 6=3.27, 7=2.43, 8=1.80, 9=1.34, 10=1, R1=13.91, R2=3.18
Front axle	1xHF9, 9 ton axle load, rigid stub axle with double T- cross section and dish /drum brake.
Rear axle	2 xHC16, HC16 heavy casting hub reduction drive axle with super loading ability, excellent performance on start-up with heavy load and slope climbing.
Steering	8098power steering, hydraulic steering with power assistance.
Clutch	Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance.
Brake	Service brake: Dual circuit compssed air brake.
	Parking brake: Spring energy, storage air-break brake.
	Engine brake: Engine exhausted gas brake.
Tire & Rim	11.00-20;12.00-20; 11.00R20; 12.00R20;
Overall dimension (mm)	8214x2496x3450(LxWxH)
Dump Box Dimension (mm)	5600/5400x2300X1500(LxWxH)
Total Mass (Kg)	25,000
loading Weight (kg)	12580
Maximum Speed (km/h)	75
Color	White, red, yellow, green, blue
