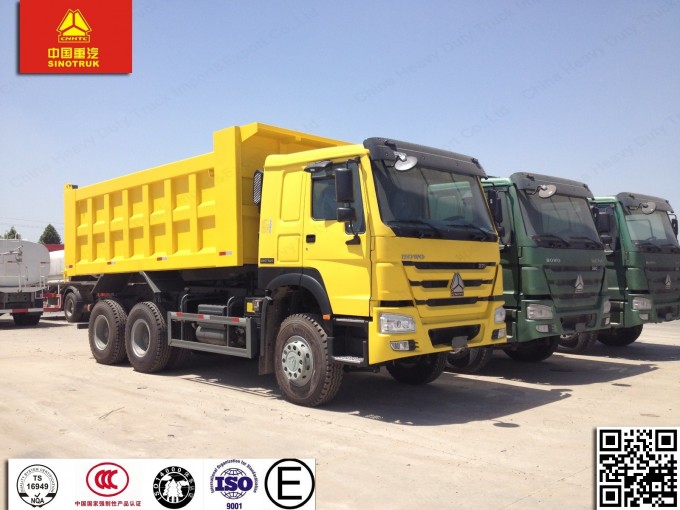

1. The HOWO series fromSINOTRUK offers you great value for your money.
It comes without all the fancy items that only look impssive on the specification sheet, but aren't really needed in your daily operation. What you get is thought through and proven quality components that make these 6 x 4 dump truck reliable and easy to drive. Developed with the driver's comfort and safety in mind, you get exactly what you need: just a great truck. Simple and reliable.
1.1 Better aerodynamics with improved front
Improved aerodynamics : better fuel economy, which again improves your bottom line. Easy access for maintenance.
1.2 Ergonomically designed workspace
Ergonomically designed driver's seat: easy reach and access. Comfort for the operator. Design and layout of dashboard provides crucial information in view and all functions in easy reach.
1.3 A comfortable ride with air suspended seats
Air-suspended driver and passenger seats: relaxed and comfortable ride. Seats are fully adjustable, fitting the driver's body.
1.4 Ample power when you need it
WD615.47, Euro II emission standard,4 stroke direct injection diesel 6 cylinder in-line engine with water cooling, turbo-charging & intercooling. Maximum output: 371hp (273Kw) at 2200 rpm according to DIN and maximum torque 1500 Nm at at 1100~1600 rpm. Meanwhile , WD615.69,WD615.87,WD615.62 is optoinal
TruckModel | ZZ3257N4347W | ||
TruckBrand | SINOTRUK-HOWO | ||
Dimension(LxWxH) | 9185x2496x3386 | ||
Cargobodysize(L*W*H,mm) | 6000x2300x1400 | ||
Cargobodythickness(mm) | bottom:8mm,side:6mm, | ||
LifttypeofCarriage | Frontlifting | ||
Approachingangle/Departureangle(°) | 19/26 | ||
Overhang(front/rear)(mm) | 1500/1739 | ||
Wheelbase(mm) | 4325+1350 | ||
Maxspeed(km/h) | 75 | ||
Curbweight(kg) | 12290 | ||
LoadingWeight(kg) | 25000 | ||
Fuel Tanker | 300Lwithlockingfuelcap | ||
Fuelconsumption(L/100km) | 32 | ||
Clutch | Single-platedryclutchΦ420mm | ||
Engine | Model | WD615.69,4-strokedirectinjectiondiesel engine,6cylindersinlinewithwatercooling, | |
HorsePower, | 336HP | ||
EmissionStandard | EUROII | ||
Transmission | Model | HW19710,10forwardsand2reverse | |
Brakesystem | Servicebrake | Dualcircuitcompssedairbrake | |
Parkingbrake | springenergy,compssedairoperatingon rearwheels | ||
Auxiliarybrake | Engineexhaustbrake | ||
Steeringsystem | Model | ZF8098hydraulicsteeringwithpowerassistance | |
Frontaxle | HF9 | ||
Rearaxle | HC16 | ||
Tire | 12.00R20 | ||
Electricalsystem | Operatingvoltage | 24V,negativegrounded | |
Starter | 24V,7.35KW | ||
Alternator | 28V,1500W | ||
Batteries | 2*12V.165Ah | ||
5. Packing:Nude packing after painting waxoraccordingtoyourrequirement.
Shipping:By bulk cargo carrier, RORO
