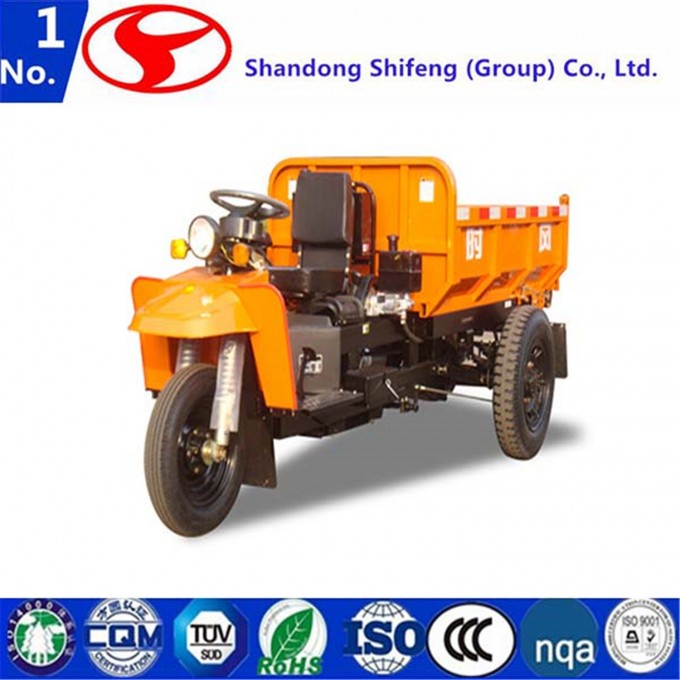

Model introduction
Shifeng mine three cars is three wheeled automobile Research Institute for meet the needs of the battlefield, mines, engineering construction, combined with the actual situation in different regions over the past few years, the development and perfection of the varieties. This series of models is flexible, convenient, practical, durable, excellent matching power f
rame characteristics by different users, the existing mine mine hand series, two seater channel (profile) f
rame, two seater Mini mine series, closed mine series, mine vehicle battery. Optio
nal co
nfiguration is more flexible, such as the front windshield with half shed, hand zixon Dream Star half shed, mine in the Wang Ban studio, no studio optio
nal accessories overall configuration, steering system, mid cycle ball mid disc configuration, braking system, brake oil, organic brake booster (oil brake) vacuum booster, configuration, after the bridge has four stalls, seven stalls, eight stalls, ten stalls configuration, increased leaf spring, the leaf spring system 11 spring (lower vehicle height) configuration, length 1.35*1.1, 1.5*1.0 co
ntainer and 1.5*1.15 (San Kai), 1.65*1.2, 1.8*1.0 (1.2, 1.35), 1.8*1.15 (San Kai) 1.9*1.2 (1.3, 1.35), 1.9*1.4 (three), 2.0*1.35 meters, 2.12*1.4 (1.5) (three), 2.2*1.35 (1.5), 2.36*1.4 (1.5) (three) configuration, in addition to simple shed, narrow track, steel container, level Four Air filter, exhaust water filtering, auxiliary heat and other special co
nfiguration option, and also according to the specific needs of users, for some specifications of products, part of the structure of the custom, great to meet the needs of users.
Specification of three wheelers
| MODELNO. | MINING |
| CABIN | HALF |
| CABIN | HALF |
| OVERALLDIMENSION | 3950×1420×1450 |
| CARGOBODYDIMENSION | 2200×1400×600 |
| TOTALGROSSWEIGHT | 960KGS |
| LOADINGCAPACITY | 2000KGS |
| FUEL | DIESEL |
| WHEELbase(mm) | 2600 |
| REARTREAD(mm) | 1240 |
| FRONTTYRE | 450-14 |
| REARTYRE | 650-16 |
| TRANSMITINGTYPE | BELT |
| ENGINE | ZS1105,ZS1110,ZS1115 |
| OUTPUT | 18HP,20HP,22HP |
| 12.12kw,13.2kw,14.7kw |
| ENGINERATEDSPEED(r/min) | 2200 |
| ENGINETOTALDISPLACEMENT(L) | 0.996,1.09,1.19 |
| ENGINEBOREXSTROKE | 105×115,110×115,115×115 |
| CLUTCHTYPE | DUAL,DRY |
| GEARBOX | 6+1 |
| SPEEDRATIO | HIGH:13.6/5.39/3.13R:19
LOW:37.9/15/8.71R:19 |
| FUELConSUMPTION(L/100KM) | 3.5 |
1 YRS
