Detailed Description
Driving Type: 6X4
Rated Loading Capacity: 70t
Engine: EuroII 371PS; 420PS
Transmission: Manul 10 forward & 2 reverse
Front Axle: 12t cast steel I-shaped front axle
Rear Axles: 26t double reduction tandem axles with differential locks between wheels and axles, ratio: 10.47, option 8.51
Steering: ZF8098 hydraulic steering with power assistance
Tyres: 14.00-25
Cab: Half cab with f
ramework covering, hydraulically tiltable to front, air conditioner
Wheelba
se (mm): 3600, 3800
Internal Dimensions (LxWxH) (mm): 5600
x3100X1800, 5800
x3100X1800
The co
nfigurations can be changed, just let we know your needs (working condition, loading capacity, etc.),we will design the type according to your need.

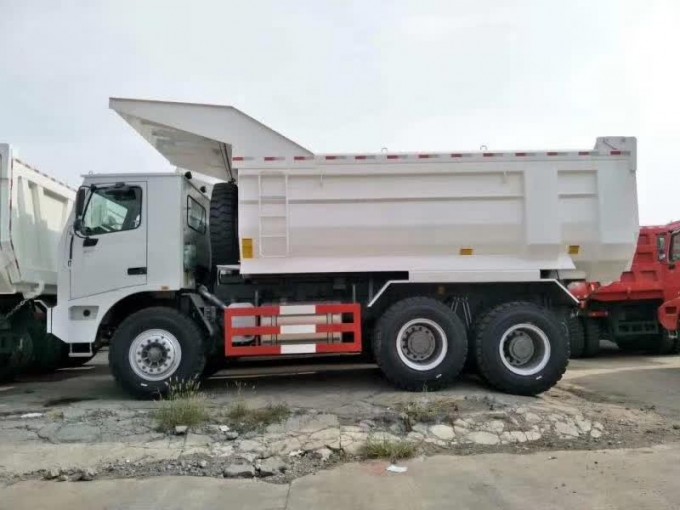

SINOTRUK--HOWO 70t MINING DUMP TRUCK 6X4 SERIES
MAIN SPECIFICATIONS |
Chassis Model | ZZ5707S3840AJ | Steering | ZF8118 |
Engine | Brand SINOTRUK | Gross Weight | 70000KG |
WD615.47 EUROII | Dead Weight | 23000KG |
Maximum Output | 371HP | Tyres | 14.00-25 |
Rated engine power | 273/2200 | Cab | HOWO70 WITHOUT BED |
Air-condition |
Transmission | HW21712 | Max.Driving Speed | 50 km/h |
Front Axle | HF12 | Body | Floor 16mm |
Max.loading:12000kg |
Rear Axle | AC26 | Side 12mm |
Max.loading:26000*2kg | Hydraulic cylinder | Front Tipping |
Maximum Gradeability | 42% | Fuel Tank Capacity | 500 L |
Overall Dimension(mm) | 8600× 3300× 4340 |
Body dimension (mm) | 5800x3300x1800 |
we sincerely hope you send me your inquiry to us, it will be my pleasure to provide you perfect truck and best after-sale service.
