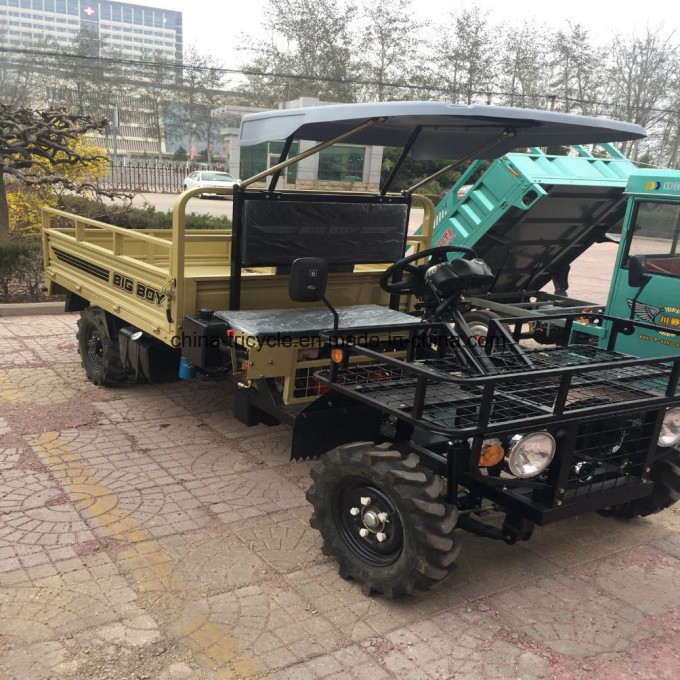

4*2WD Mining Four Wheel Capacity Farm Dump Truck
PRODUCTS DEscriptION
| Dimensions(L×W×H)mm | 3700×1310×1850mm |
| Storage size(L×W×H)mm | 2000×1280×850mm |
| Cargo size(L×W×H)mm | 1280×660×190mm |
| Minimum turning radiusmm | 6500mm |
| Wheelbase | 2500mm |
| Minimum ground clearance | 180mm |
| Net Weight | 610kg |
| Rated load | 500kg |
| Max speed (high gear/low gear) | 60km/h |
| ENGINE | |
| Engine Model | KP2V86F double cylinder,horizontal axis,Air-cooled,Four stroke, |
| Air Cylinder | 2 |
| Cylinder diameter | 86mm |
| Stroke | 86×72mm |
| Displacement | 0.813L |
| Compssion ratio | 18:1 |
| Rated power | 11.76KW |
| Maximum torque | 73Nm |
| Diesel injection pump | |
| Air filter | paper |
| Starting system | Electric start |
| Idle speed | 900 r / min |
| TRANSMISSION | |
| Clutch | dry type |
| Speed mode | 4 into 1 down |
| Enginenetweight | 60KG |
| Climbing | ≥10° |
| 1Gear ratio | 3.43 |
| 2Gear ratio | 2.11 |
| 3Gear ratio | 1.38 |
| 4Gear ratio | 1 |
| Reverse gear ratio | 3.6 |
| Steering type | Steering wheel type |
| Front integral axle housing (steering axle) speed ratio | |
| Rear integral axle housing ratio | 6:37 |
| high gear ratio | |
| slow gear ratio | |
| Transmission Structure | Transmission shaft |
| CHASSIS | |
| Front suspension | Steel leaf spring |
| Rear suspension | Steel leaf spring |
| passenger drivers | 2 |
| Front and rear brake | Drum / drum type |
| Front tire specifications | 5.00-12 |
| Reartire specifications | 5.00-12 |
| ELECTRICAL | |
| Ignition mode | Direct injection pssure ignition |
| Advance angle of fuel supply | 22-24° |
| Diesel filter replacement interval | 500hours |
| Battery | 36V 60Ah |
| Fuse | 20A |
| Front Head lamp | 12V 35/35W |
| Rear lamp | 12V 5/10W |
| Turn signal light | 12V 10W |
| OIL CAPACITY | |
| Engine oil pan | 1.7L |
| Air filter bottom shell | |
| Front steering axle / rear axle | /0.8L |
| Transmission / belt gearbox | 0.7L/ |
| Brake master / clutch master cylinder | 0.6L/ |
| Dump cylinder oil | 4L |
| Fuel tank capacity | 15L |
cargo motorcycle | three wheel motorcycle | air cooling motorcycle | oil braking motorcycle |
electric motorcycle | 3 wheel electric motorcycle | 4 wheel motorcycle | farm motorcycle |
roof motorcycle | half roof motorcycle | hybrid motorcycle | gasline motorcycle |
| Stamping Die | Tractor cab | Plastic pallet | Electric tricycle |
Q1. Are you trading company or factory?
A. We are original factory .
Q2. Does your factory has a long history?
A. Yes, our factory founded in 1995, has 22 years of history.
Q3. Where is your factory located? How can I visit there?
A. Our factory is located in DonGCHENG INDUSTRIAL ZONE SHOUGUANG CITY SHANGDONG PROVINCE CHINA; All our clients are both warmly welcome to visit our factory if you have time!
Q4. What is your main product?
A. We mainly produce different models three wheels and four wheels motorcycles/ tricycle for cargo and passengers. Also have stamping die; tractor cab;
Q5. Where is your main market?
A. Our main market is Africa, Middle East, have been exported to many countries( more than 20 countries)
(Remark:More questions, please kindly contact me at NANCY + 86 15615260989/ +8618678000765 )
