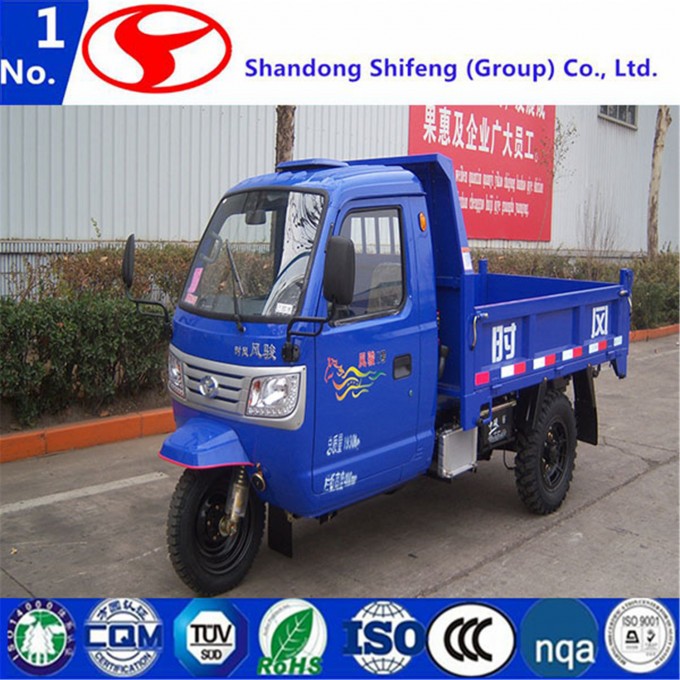

3 Wheel Dump Truck Suitable for Agricultural and Construction Sites

Company profile

Shifeng group was founded in May 18, 1993, covering an area of 5000 acres, with a total assets of 20 billion yuan, and employs 30000 people. The main products are three wheeled cars, low speed trucks, light truck cars, electric sightseeing cars, tractors, engines, tyres and combine harvesters.



Product profile:



Shifeng farm vehicles, including three wheeled vehicles and low speed trucks. With increasingly sophisticated configuration, complete functions and perfect shape, single row, platoon, half, leading models alone lead the trend of the times. Equipped with warm air, electricity, start, dump and other devices. Optional circulating water evaporation, diesel engine, power capacity.


Our factory:





Specification of three wheelers

MODELNO.	SEMICLOSED	SIMPLESHED	FULLSEAL
CABIN	HALF	WITHSUNSHADE	ONEROW
OVERALLDIMENSION	4100×1550×1690	4250×1550×1690	4250×1550×1690
CARGOBODYDIMENSION	2350×1500×400	2500×1500×400	2500×1500×400
TOTALGROSSWEIGHT	1000KGS	1100KGS	1100KGS
LOADINGCAPACITY	2500KGS	3000KGS	3000KGS
FUEL	DIESEL	DIESEL	DIESEL
WHEELbase(mm)	2700	2885	2885
REARTREAD(mm)	1335	1435	1435
FRONTTYRE	600-16	600-16	600-16
REARTYRE	700-16	750-16	750-16
TRANSMITINGTYPE	BELT	BELT	BELT
ENGINE	ZS1110,ZS1115	ZS1110,ZS1115	SF148,ZS1110,ZS1115
OUTPUT	20HP,22HP	20HP,22HP	25HP,20HP,22HP
	13.2kw,14.7kw	13.2kw,14.7kw	18.38kw,13.2kw,14.7kw
ENGINERATEDSPEED(r/min)	2200	2200	2200
ENGINETOTALDISPLACEMENT(L)	1.09,1.19	1.09,1.19	1.448,1.09,1.19
ENGINEBOREXSTROKE	110×115,115×115	110×115,115×115	125×118,110×115,115×115
CLUTCHTYPE	DUAL,DRY	DUAL,DRY	DUAL,DRY
GEARBOX	8+2	6+1	6+1
SPEEDRATIO	HIGH: 10.27/6.326/4.157/2.976 R:14 LOW: 31.78/19.57/12.86/9.208 R:43.3	HIGH: 13.6/5.39/3.13 R:19 LOW: 37.9/15/8.71 R:19	HIGH: 13.6/5.39/3.13 R:19 LOW: 37.9/15/8.71 R:19
FUELConSUMPTION(L/100KM)	3	3	3.5

Main Features
1.Strong Power:Japanese Yanmar Technology & German BOSCH injection system, Single cylinder diesel engine, with Strong output and high torque.
2.Extra loading capacity: 3 tons capacity.
3. Good performance in Off-road conditions, High ground clearance, Adopt to various rough roads,
4.Fuel consumption: Upto 3 Liters/100km, economic, comparing lowest in the current models.
5.Easily operation and maintenance: Spare parts and services are easily managed.
6.Technical supporting and Modification according to customers' requirements are available.
7.Driving Comfort: The vehicle cab interface adopts ergonomic design, thus reduces the fatigue of the driver.
