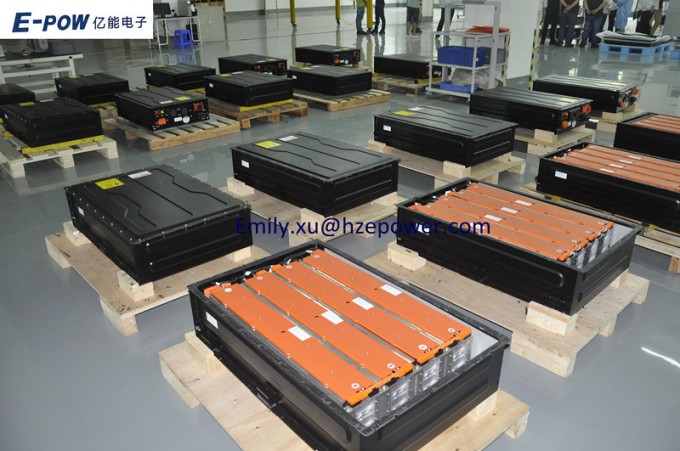

Charged Battery Automobile Battery Storage Truck Battery
Product Features:
1, Compatibility
The platform covers afull range of lithium-ion battery electric vehicles, including EV(Electric Vehicle), BEV(Battery Electric Vehicle), EREV(Extended-Range Electric Vehicles),PHEV(Plug-in hybrid electric vehicle) and HEV(Hybrid electric vehicle),andcovering commercial vehicles, passenger cars, busand special vehicles,andcompatible with lithium manganate battery,ternary battery, LiFePO4 battery (Lithium iron phosphate Battery) and Lithium titanate battery.
2. Automotive Standard:
Product software, hardware, structural design in accordance with the automotive standard design.
3.Customized High Power:
12V/24V/48V/60V/72V/96V/100V/120V/144V/200V/300V/400V/500V/600V....
40AH/50AH/60ah/100AH/180AH/200AH .......4. High safety:The product has been specially designed and tested, including in the aspects of system function self test, nomally work under high and low voltage, protection grade, redundancy backup and anti-abuse.5. High integration:Using large-scale integrated circuits, and integrated system design.6. Wide scalability:The product adopts adistributed or centralized architecture, and the detection unit can support up to 30 at most, and supports 1-300 series batteries in series.7. flexible configuration:The product has special PC software, and the product can be flexibly co
nfigured on different types of application requirements.Lithium Titanate BatteryLi-ion Battery lifepo4 battery
Rated voltage(V): | 350.4(Customized) |
Rated battery pack capacity(Ah): | 37(Customized) |
Rated battery pack energy(KWh): | 13(Customized) |
Voltage range(V): | 269-403(Customized) |
Max. Charge current(A): | 111(Customized) |
Max. Discharge current(A): | 85(Customized) |
Cycle life(time): | >3500 (80% DOD) |
BMS working voltage(Vdc): | 12 |
SOCestimation accuracy: | <5%~8% |
Temperature difference: | <=3°C |
Thermal management: | liquid cooling |

Application:
1, Electric Vehicle:
EV(Electric Vehicle), BEV(Battery Electric Vehicle), EREV(Extended-Range Electric Vehicles), PHEV(Plug-in hybrid electric vehicle) and HEV(Hybrid electric vehicle)
E-bike, UPS, energy storage system, telecommunication ba
se station, E-scooter, E-tools, unmanned airplane, golf cart, fork lift, cleaning car, electric wheelchair, etc.
2, Vehicles Types:includingcommercial vehicles, passenger cars, enviro
nmental sanitation vehicles, trailway and so on
3, Battery Types:LMO,LFP,NCM,LTO

Functio
nal Des
cription
1. single cell voltage detection (BMU module function);
2. single cell temperature detection (BMU module function);
3. the total voltage detection of battery pack;
4. the working current detection of battery pack;
5. Balanced management: active balanced +passive balanced, with balanced failure self-diagnosis function(BMU module function);
6. Thermal management: support heating management +cooling Management(BMU module function);
7. Charge management
8. Discharge management
9.Battery pack SOC estimation
10. Battery pack SOH estimation
11. Battery malfunction analysis and o
nline alarm
12. CAN-bus equipment communication with on-vehicle co
ntroller and display system etc. (vehicle factory standard or follow to E-POW standard)
13. Communication with the ground charging set and hardware interface, (natio
nal standards, enterprise standards or E-POW standard);
14. Safety protection (over charge, over discharge, over-current, over temperature, insulation leakage, smoke sensor, fast pull insurance, relay);
15. BMS self-checking function;
16. Support 5types Hardware wake-up, and support CAN bus remote wake-up;
17. Support delayed to turn off power management;
18. Support to record the operation of data, fault data, historical event data;
19. Support NTC temperature sensor detection(BMU module function);
20. Hardware self-diagnostic function;

BMS Technical Parameters:
NO. | Item | Technical parameters |
| Basic Parameters | BMSworking voltage range | 12V(6V~18V)24V(12V~32V) |
| BMS Operating power (rated /peak) | BCU (Battery Control Unit): 3.6W /120W (peak duration 10mS)
BMU (Basic Management Unit): 2.8W /120W (peak duration 10mS) |
| BMSStatic power consumption | BCU (Battery Control Unit):≤1mA, Each BMU (Basic Management Unit):≤0.1mA |
| BMSOperating temperature range | -40ºC~85ºC |
| BMSStorage Temperature Range(ºC) | -40ºC~95ºC |
| BMSOperating Humidity Range(%) | 5%~95% |
| Single cell voltage detection range | 0~5V |
| Singlecellvoltage sampling accuracy | ≤±10mV(2V~5V@-25ºC~55ºC) |
| Singlecellvoltage sampling frequency | <20mS |
| Total voltage detection channel number | 2(Check the internal total voltage and the external total voltage) |
| Total voltage measurement range | 0V~900V |
| Total voltage detection accuracy | <0.5%FSR(FSR:Full-Scale Range) |
| Temperature measurement range | -40~125ºC |
| Temperature detection accuracy | ≤±1ºC(NTC,@0~65) ≤±2ºC(NTC,@-40~0) ≤±2ºC(NTC,@65~125) |
| Current detection accuracy | <1%FSR(FSR:Full-Scale Range) |
| Insulation monitoring | Divided into three situations, 0: no fault (> 500 ohms /volts), 1: general failure (100 to 500 ohms /volts), 2: Severe fault (<100 ohm /volts) |
| Insulation fault judgment basis | GB/T 18384.3-2001 |
| SOC estimation accuracy | <8% (BEV (Battery Electric Vehicle) working condition) |
| Balanced mode | Passivebalanced:100mA |
| External CAN interface number | 2 high-speed CAN (where vehicle CAN can be configured with CAN wake-up function) |
| BCU (Battery Control Unit) relay control roadnumber | 6-way(4-way control power supply positive, 2-way control powerground) |
| BMU (Basic Management Unit)relay control roadnumber | 2 way (can only control the power supplyground) |
| Relay power (peak) | In general, intermediate relays are not required |
| National standard charge signal detection | Support slow charge CC and CP signal detection; support fast charge CC2 signal detection. |
| EMCperformance testing | E-POW Enterprise reference standard |
| Fault data record | YES |
| Battery parameter table | *Party Ato provide |
| List of battery management systems | *Party B(E-POW) to provide |
| Battery box battery layout and wiring diagram | *Party Ato provide |
| Weight | BCU (Battery Control Unit)Weight | 0.65KG |
| 24S-BMUweight | 0.63KG |
| 36S-BMUweight | 0.84KG |
| 48S-BMUweight | 1.01KG |
| 60S-BMUweight | 1.25KG |
