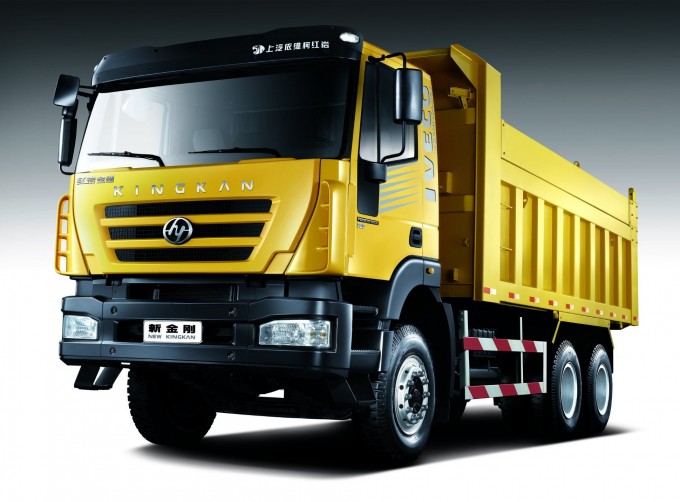

| HonGYAN KINGKAN 6×4 TIPPER CONFIGURATION | |||
| Model | 6×4 TIPPER | ||
| Vehicle Kerb Mass (kg) | 12030 | 12090 | |
| Max. Payload (kg) | 12840 | 12780 | |
| Max. Towed Mass (kg) | --- | --- | |
| GVW (kg) | 25000 | 25000 | |
| Wheelbase (mm) | 3800+1400 | 4000+1400 | |
Outside Dimension(mm) | L | 8220,8335,8420 | 8720,8685 |
| W | 2500 | 2500 | |
| H | 3460 | 3460 | |
Body Dimension(mm) | L | 5400,5600,5600 | 5800,6000 |
| W | 2300 | 2300 | |
| H | 1200 | 1100 | |
| Max. Speed (km/h) | 80 | ||
| Engine (for E3) | C9 290~380; SC10 300~340; SC10E 310~340 | ||
| Engine (for E4) | C9 290~390; SC10 300~380; SC12 350~390 | ||
| Gearbox | 10 MS or 12 MS | ||
| Clutch | Single Plate, ¢430 Large Diaphragm-spring Type | ||
| Cab | Low roof | ||
| Steering | Hydraulic Power Steering | ||
| Rear Axle | Hub Reduction | ||
| Tire | 11.00-20 18PR, 11.00R20 18PR, 12.00-20 18PR, 12.00R20 16PR | ||
| Note: These data is only for reference, please contact the local dealer for more information | |||
