Rearview System with Brakelight Camera System for Van

4.3 inch car TFT LCD monitor for rear view system

for car, van, motorhome

Monitor Specifications:
- Screen size: 4.3" digital TFT-LCD
- Display Format: 480 x RGBx 272 Dot
- System: PAL/NTSC
- One video input
- Brightness: 300cd/m2
- Operation Temperature: -20°~70°
- Temperature Range Storage -30°~80°
- Power consumption: 2W
- Power requirement: DC 12V

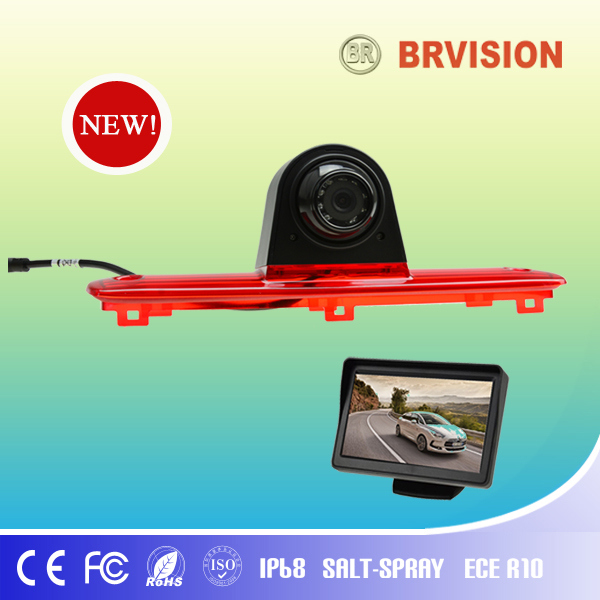

Waterproof IP69 Brake Light Camera for Renault Traffic/Opel

Products Specifications:
BR-RVC07-FD, Brvision unique design, Brake light camera for: Fiat Ducato, Peugeot Box, Citroen Jumper. Nice to fit 4.3''/3.5'' monitor and mirror monitor.

Item No.	BR-RVC07-FD
Feature	For Fiat Ducato, Peugeot Box, Citroen Jumper
Image Type	1/3" 1/4 Color CCD/CMOS
Night vision	With IR lamp
TV System	NTSC/PAL
Lens Angle (Deg.)	120 degree
IP Rating	IP69K
Vibration Rate	10G
Connector	4P connector or RCA connector for selection
Effective Pixels	N: 510*492 pixels P: 500*582 pixels
Horizontal Resolution	420TVL/700TVL
B.L.C	Back light Compensation (Auto)
White Balance	Auto White Balance (Auto)
Minimum Illumination	0Lux (LED ON)
S/N Ratio	≥48dB
Electronic Shutter	1/60~1/100,000 Sec
Power consumption	<3W
Built-in Lens	f&colon; 2.8mm
Power Consumption	DC 12V (+/-10%)
Audio	without
Operation Temperature	-30ºC~+70ºC.RH95% Max
Storage Temperature	-40ºC~+80ºC.RH95% Max
Certificate	FCC,CE, E-mark,ISO9001,TS16984, RoHs

BRVISION TECHNOLOGY CO., LTD is aprofessional Mobile Electronics and Surveillance developer &supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products.
Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera,wireless Module, dvr recorder camera and etc.

We specialize in:
. Vehicle Rearview Camera(CCD or CMOS)
. Vehicle TFT LCD Monitor
. Wireless Transmitter and Receiver
. Surveillance Camera
. OEM and ODM Project
BRVISION Certificates: CE, FCC, Emark, ISO9001-2008
