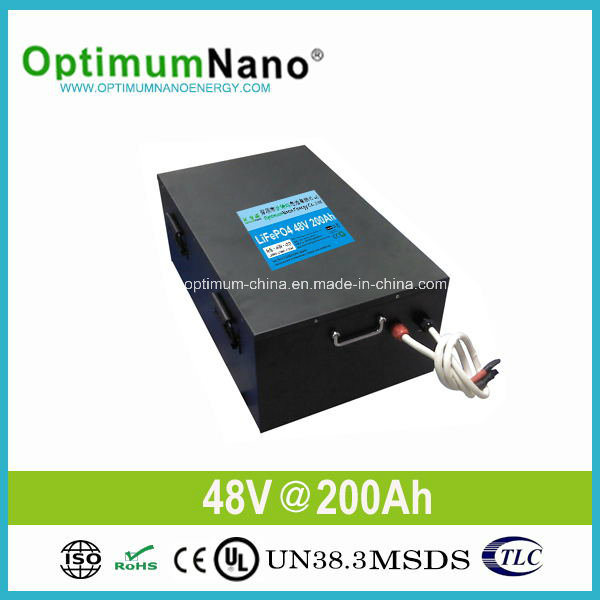

LiFePO4 Battery 48V 200ah for E-Truck with BMS

LifePO4 battery 48v 200ah for E-truck with BMS


Product feature


1.this battery suitable for all of the electric vehicle and skiing borad and UPS backup.


Longer cycle life
2.The cycle life of the battery pack can reach 2000 times with 0.2C-1C discharge current.

Small dimension and light weight
3.The Li-ion battery is have half dimension and third weight compare with the lead-acid battery. Thus the performance of the whole EV is improved and the battery can be taken off easily.

Green battery to protect environment
4.The lead-acid battery will pollute the environment seriously because of frequent replace, but the Li-ion battery is green power without pollution.


Very safe and Reliable
5.The Li-ion battery is more safe and reliable than the lead acid one. It wont explode or burn when bump, heavy stress, needle pricking, short circuit, overcharge and overheat.


Rapid charge
6.The battery can be full charged in2 hours at 0.5c current.


banlance charge and discharge
7.The pack have a BMS, so it will not over-discharge and over-charge. It is as a balance charger, but it is cheaper than it.


the best welcome and potential product

8.Now it is the best welcome and potential product in the battery market.

Specification

Basic specification of 48V 200Ah Battery pack
Nominal Capacity @ 0.2C	200Ah		Cycle life(1 C/1C , 100% DOD)	2000 Cycles
Nominal Voltage	48V		Cell Configuration	15S40P
Discharge Cut-off Voltage	37.5 V		Total Cell Quantity	600PCS
Charge Cut-off Voltage	54.75V		Dimensions(MM)	(548*390*363)±1mm
Recommend Charge Current	40A (0.2C)		Weight(Approx,including case)	120kg
Recommend Continuous Discharge Current	100A		Charge Temperature Range	0ºC~ 45ºC
Max continuous Discharge current	100A		Discharge Temperature Range	-20ºC~ 60ºC
Peak Discharge (Max. 10 sec.Duration)	200A		Charge method	CC/CV

Low Self-discharge - Less than 3% per month

Item	LiFePO4	Lead Acid	Ni-Cd	Ni-Mh
Self-discharge/month	3%	10%	13%~15%	25~35%
