Electric vehicle Bus Motor EV Battery Kit Pack LiFePO4

Electric Vehicel car bus motor EV E-BUS Bicyle battery kit pack LiFePO4
Characteristics

1. Extremely safe and stable chemistry:Rigid aluminum alloy housing protection, BMS or PCB built inside to protect the battery over charge and discharge.

2. Long life-cycle:5~7 years / 2000 times cycle life.

3. Lighter and smaller:1/3 weight of lead acid battery, 70% size/weight of Ni-MH/Ni-Cd battery.

4. Wide operating temperature:High temperature resistance(-20~60 degrees Celsius).

5. Steady performance:High power output, 1C continuous, 3C pulse for normal cells and 20C for special design. Low self-discharge rate, less than 3% monthly.

6. No memory effects and highly efficient charge:It can be recharged anytime, no reduction of the capacity

7. Green product:Environment friendly, clean and green energy, no pollution on our environment.

8. Quality assurance:BV and SGS approved supplier, with TS16949 and ISO9001 quality management certificates and UL, CE,IEC62133 etc...product certificates.



Our advantages



1. The approved supplier of Universiade Shenzhen 2011, their 80% lithium battery offered by us.



2. As the professional and leading LiFePO4 battery manufacturer in China, we have a capacity of 1.25 MWh per day.



3. Established in 2001, Optimum Battery Co., Ltd is high-tech corporation with independent intellectual-property and core technologies, which is specialized in LiFePO4 and NI-ZN battery's R & D , production and management. Adjacent to Shenzhen Grand Industrial Park, and with an occupation about 20, 000 square meters, we have more than 1000 employees and over 50 senior engineers.

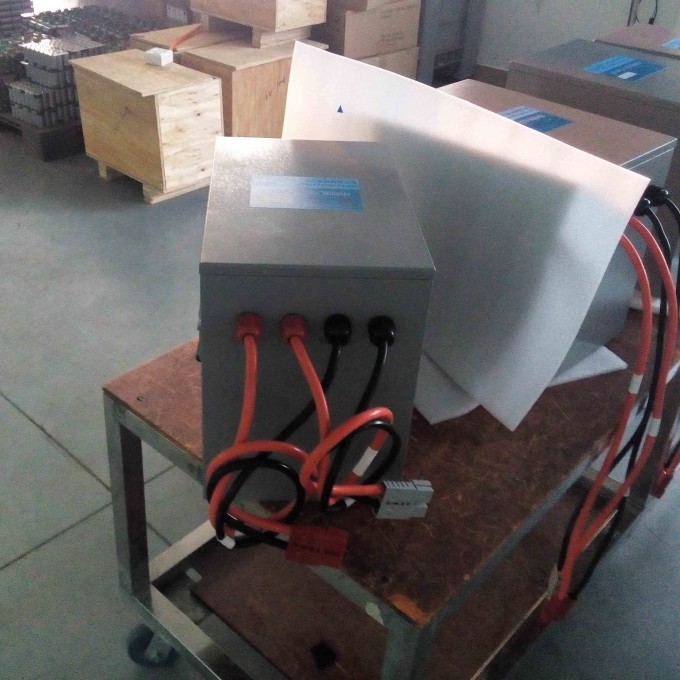

1. Project description and requirements
1)Application: Hybrid electric bus
2)Rated Voltage: 336V
3)Voltage Range (V): 262.5-383.25
4) Rated Capacity: 100Ah
5) Battery Case description: Use 8 big cases, 1 small case, and 1 master box.
6)Case dimensions:560*470*189mm (per big case's size)
7)SOC Permitted Range: 20%-80%
8)Normal working temperature:- 20°C-60°C,Work in 70°C no problem, no safety concerns.
9)Self-discharge: 25°C,≤0.5% per week
10)Lifetime: Above 3 years
11)Security Standard: Meet China Standard QC/T 743-2006
12)Security Class: IP55

advantages of our lifepo4 batteries
1: Safety: LifePO4 is the safest battery in the world till now, which does not burning with over 30V discharge voltage and it does not explore when you puncture the battery. We have achieved CE and UL certifications.(This photo is waterproof testing,goldfish is still safety there)

2: Environments friendly: We attained RoHS certification which proved the batteries are not contained toxic material.
3: Powerful: Discharge with 10C, battery's temperature does not exceed 65C.
4: Long cycle life: After 2000 times charge and discharge, the capacity remain 80% of the original one.
5: Temperature extension: In the scope of -20~70the batteries can be normally used.
6: Lower average price per year:The average price per year is 100 Yuan RMB less than the lead-acid battery for 5 years.
7: Small in volume and light in weight:The iron-lithium battery is about 1/2 the volume and 1/3 the weight of the lead-acid battery. Thus the performance of the whole bike is improved and the battery can be taken off easily.
8: Intelligent charge system: voltage of each cell can be detected, each cell can be protected against overcharge, overvoltage, short circuit andoverheat, and so that battery can be charged balance.
9: Patented and beautiful appearanceThe appearance designed by patent can be integrated with the hole bike.
