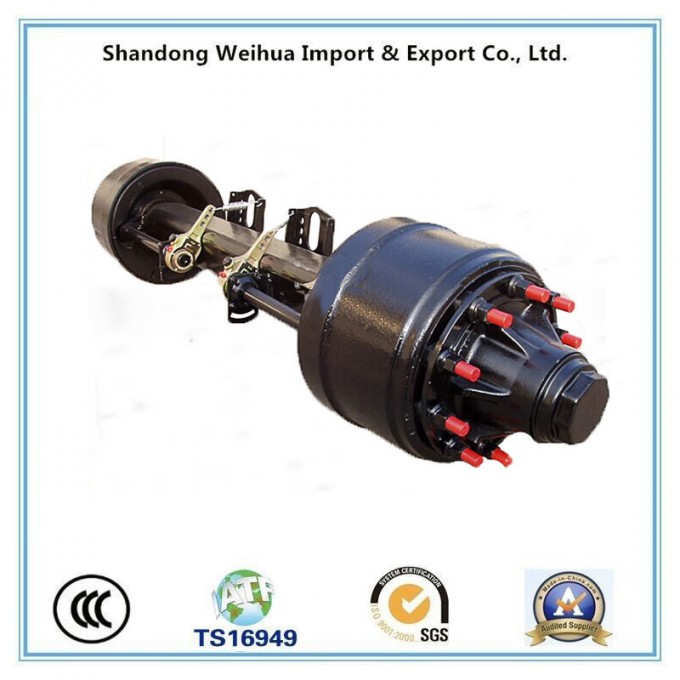

American Type Outboard Trailer Axle with Reliable Operation

1.American Type Outboard Trailer Axle With Reliable Operation


2. Here provide the spare parts data sheet for your consideration only:

AxleType	Max.Capacity(T)	L2 Track(mm)	Brake(mm)	Bearing	L3 SpringSeatInstallation	AxleBeam(mm)	L4 CentreDistanceOfBrakeChamber(mm)	WheelFixing			L1 TotalLength(mm)	RecommendedWheel	AxleWeight(kg)
								Stud	P.C.D(mm)	H(mm)
WH13YA2127	13	1840	420×180	HM518445/10	>=970	○127	392	10×M22×1.5ISO	285.75	219.8	~2180	7.5V-20	345
WH13YA2227	13	1840	420×180	HM518445/10	>=970	○127	388	10×M22×1.5ISO	335	280.8	~2180	7.5V-20	363
WH13YA2128	13	1840	420×200	HM518445/10	>=970	○127	372	10×M22×1.5ISO	285.75	219.8	~2180	7.5V-20	348
WH13YA2228	13	1840	420×200	HM518445/10	>=970	○127	372	10×M22×1.5ISO	335	280.8	~2180	7.5V-20	360
WH13FB2127	13	1840	420×180	HM518445/10	>=970	127(square)	392	10×M22×1.5ISO	285.75	219.8	~2180	7.5V-20	340
WH13FB2227	13	1840	420×180	HM518445/10	>=970	127(square)	388	10×M22×1.5ISO	335	280.8	~2180	7.5V-20	358
WH13FB2128	13	1840	420×200	HM518445/10	>=970	127(square)	372	10×M22×1.5ISO	285.75	219.8	~2180	7.5V-20	343
WH13FB2228	13	1840	420×200	HM518445/10	>=970	127(square)	372	10×M22×1.5ISO	335	280.8	~2180	7.5V-20	355
WH13FA2127	13	1840	420×180	HM518445/10	>=930	150(square)	392	10×M22×1.5ISO	285.75	219.8	~2180	7.5V-20	343
WH13FA2227	13	1840	420×180	HM518445/10	>=930	150(square)	388	10×M22×1.5ISO	335	280.8	~2180	7.5V-20	361
WH13FA2128	13	1840	420×200	HM518445/10	>=930	150(square)	372	10×M22×1.5ISO	285.75	219.8	~2180	7.5V-20	346
WH13FA2228	13	1840	420×200	HM518445/10	>=930	150(square)	372	10×M22×1.5ISO	335	280.8	~2180	7.5V-20	358
WH13FA2237	13	1820	420×180	HM218248/10 HM212049/11	>=910	150(square)	388	10×M22×1.5ISO	335	280.8	~2180	7.5V-20	340
WH13FA2427	13	1840	420×180	HM518445/10	>=970	150(square)	388	8×M20×1.5JAP	285	219.8	~2180	7.5V-20	345
WH13FA2727	13	1840	420×180	HM518445/10	>=970	150(square)	388	10×7.8"-11BSF	335	280.8	~2180	7.5V-20	363
WH13FB4228	13	1840	420×200	7518E	>=930	127(square)	376	10×M22×1.5ISO	335	280.8	~2180	7.5V-20	358
WH15FA2227	16	1850	420×180	HM220149/10 HM518445/10	>=940	150(square)	398	10×M22×1.5ISO	335	280.8	~2200	8.0V-20	385
WH16FA2229	16	1850	420×220	HM220149/10 HM518445/10	>=940	150(square)	358	10×M22×1.5ISO	335	280.8	~2200	8.0V-20	405

3.Other information:
Shandong Weihua import & Export Co., Ltd is a research, production and sales in one of the industry and trade enterprises. It is specialized in research, development, production of semi-trailer and special vehicles. The factory is located in the special vehicle production base -- Liangshan, China.Our company's main products are as below:Low bed semi trailer (including the trailer that can be extended to 53m)Container trailer: Skeleton container trailers & flatbed container trailersSide wall semi trailerDump semi-trailerBulk cement tank trailerOil / fuel tank trailerVan / box semi trailersemi trailer accessories. At the same time, we also operate brands of heavy trucks, tractors, engineering machinery and agricultural machinery.
Our factory has 20 years of production experience. It owns complete R&D center, vehicle and parts inspection center, rollover test laboratory, collision test place. The trailer payload is from 20 tons to 300 tons. The production capacity is over 10000 units per year.Our trailers are widely exported to Russia, Outer Mongolia, Vietnam, Philippines, the middle east, Africa (such as Sultan, Nigeria, Algeria), South America and so on.
The company always adhere to the quality first, customer supme principle for good service to every customer. Each of vehicle that we produced has a high quality and reliability. We always strive to know your business to ensure we provide you the high quality trailers and servicing more intimately. You can inquiry us for a solution to virtually and transport problems you may have. So, you can be assured of optimal operating efficiency, cost control and above all, reliability.




Whyus?
1- Since 1996, with 20yearsexperience.
2-2 years guaranteeforallthe beamoftrailers.
3-Reliability,safetyandeconomictransportsolutions.
4-Customproductionaccordingtodemand.
5-Strictqualitycontrol,out-standingqualityassurance.
6-Stocktrailersandimmediatedelivery.
7-After-saleserviceavailable,emailwillbereplywithin8hours.

OurAdvantage
1-Withwellexperiencedsemitrailerproductioncompanytoofferhighqualityandcompetitivepricessemitrailertoourworldwidevaluablecustomers.
2-Anprofessionalteamwhichisexperiencedwithinternationalmarketandhasstrongtechnicalcapabilitytocustomizedcosteffective.
3-Sellwellintheinternationalmarkets,suchasAfricanmarket(Sudan,Angola,Zimbabwe,Liberia,Djibouti,Congo,Kenya,Ghanaect.),MiddleEast,SouthAsiaandSouth-Americamarket.
4-2yearsguaranteeforallthebeamoftrailers,timelyshipment.

QualityControl
1-Foreachtrailer,weshoulddothetestingandinspectthequality.
2-Wegiveinspectioncertificateaccordingtocustomerdemandforeverytrailerwhichgivenbyanindependentthirdpartycertificationcompany.
3- We provide out-standing quality assurance.
4-Noanyqualitycomplaintsfor9years.

PerfectService&Support
1-Wheneverreliability,safetyandeconomicisneeded,thereis a solution. Weihua provides the best possible quality semi trailers to worldwide valuable customers.
2-Withafullrangeoftrailerspatepartssupport,sparepartssupplyingwithin3days.
3-Seriouslyconsidercustomer'srequirements,andwelcomedifferentcooperationmodes.
4-Provide professional trailer drawing.
5- Considerate after-sales service & product maintenance.
Shandong Weihua can supply all kinds of semi trailers, we can design and produce according to your requirements.
