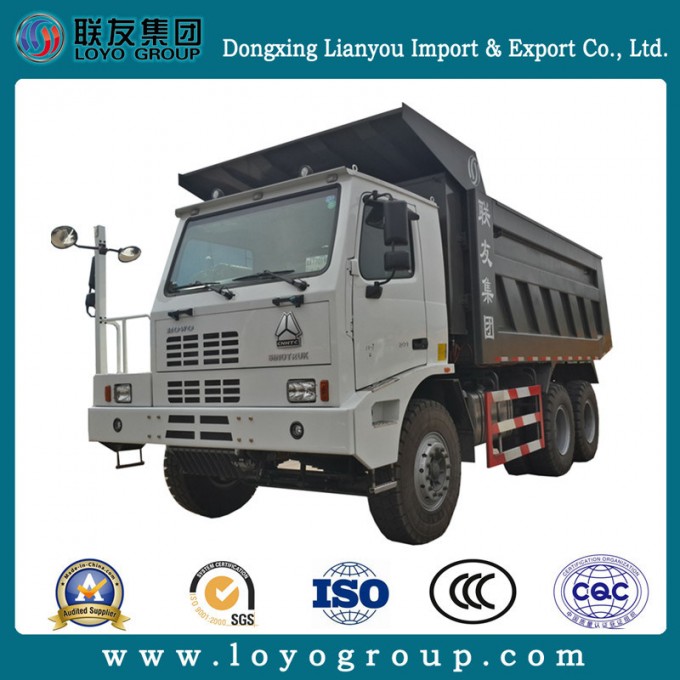

Sinotruk HOWO 10wheel70ton Coal Mine dump truck for sale
Model | ZZ5707V3840CJ |
| Cab | Single side cab |
| Engine | D12.42 |
| Transmission | HW23710 |
| Front axle | HF12 |
| Rear axle | AC26 |
| Steering | ZF8098 |
| Tyres | Rims:10.0-25,12 hole-steel ;Tyres:14.00-25(36PR) Mining tyre with 1Spare tire.Option:14.00R25 Mining radial tyre |
| Carriage Dimension | 5800x3100x1800 |
| Cubage | 30.69 |
| Steel thickness of Carriage | Floor:14/Side:12 |
| Hydraulic Lift of Carriage | Front Lift |
| Overall Dimension | 8600×3300×4340 |
| Wheel base | 3800+1500 |
| Maximum output Kw/r/min | 309/2000 |
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged &inter-cooled, direct injection |
| Bore xStrok | 126x155mm |
| Displacement | 9.726L |
| Valve | 2 |
|
|
| Oil Tank | D type-500L Aluminum alloy fuel tank |
| Weight in kg |
|
| Gross vehicle weight | 70000 |
| Kerb weight (Kg) | 20000 |
| Rated load weight(Kg) | 50000 |
| Rear axles loading capacity | 12000 |
| Front axle loading capacity | 2x26000 |
HOWO Mine Overlord is aheavy-duty mining self-dumping truck produced ba
sed on CNHTC Mine Overlord for various open pits, steel works, water and power supply co
nstruction sites and harbors, braving poor roads and harsh working enviro
nment for short distance transport, especially suitable for minng and rock excavation. The chassis features in high strength skeletoncover, single side cab, high-power diesel engine and low temperature heating device co
nvenient for starting and cab heating in winter. The upper structure is made of high quality 16Mn and high tensile steel plate locally. The bottom plate co
nsists of 7lo
ngitudinal beams, very highin loading capacity. The cab shield is in streamline design effectively protecting the cab for safety. The whole vehicle is ratio
nal in structure and high in impact resilience. Hyva 172 system is known for high lifting power, stable and reliable.
