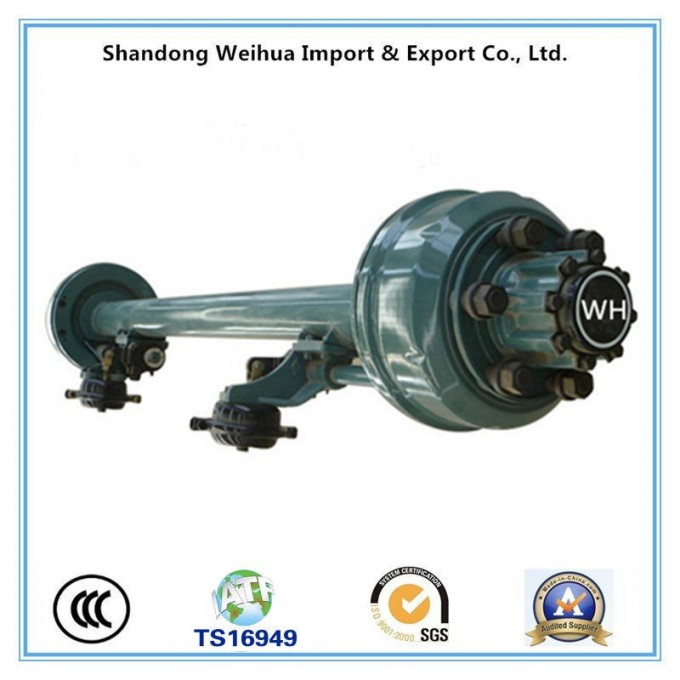

14t Agricultural Axle for Semi Truck Trailer

Item:Agricultural Axle Semi truck Trailer Axles From China Factory
Type: Rear Axles

Description

Model No.

Capacity(t)

Brake(mm)

centre distance of brake chamberL4

Axle Tube(mm)

centre distance of spring seat L3

Stud

P.C.D

Track L2(mm)

Bearing

Total Length L1(mm)

Weight(kg)

Recommended Wheel

Agriculture axle

WH-A1040

6

300*120

960

Φ108

1560

6*30*1.5

222

2200

7514/7813

2460

220

5.50F-16

Agriculture axle

WH-A1041

8

300*120

960

Φ121

1560

6*30*1.5

222

2200

7514/7813

2460

226

5.50F-16

2. Characteristics:

1.Special heat-treat,low-alloy steel axle beam,it has the vitues of good synthetic performance,strong load ability and lower self weight.

2.High quality alloy solid inserted spindle,through wholy heat treatment,provide superior fatigue capability.

3.High performance pmium non-asbestos brake linings,estend serbice life.

4.Easy for ABS installation.

5.Camshaft,matching with special seals,can ensure no entry of the grease into the brake drum,more safety.

6.New tight fit hub cap habe Orings,high property for sealing.

7.Grease lubricant is supplied by Mobil that lengthens the time of free maintenance.

8.Full range of stud fixing such as ISO,BSF and JAP,it can meet the requirements of various wheel rims.

3. Scope of our business:
1. Lowbed Semi trailer, tanker trailer, container semi trailer, stake semi trailer, side wall fence semi trailer, dumper /tipper semi trailer, heavy duty hidralic moudlar semi trailer, heavy duty fan blade transport semi trailer and so on.
2 Axles (German type axle, English type axle, American type axle, Spoke axle, ZM axle, Agriculture axle, Half axle, Axle without brake)
3. Suspension (Bogie suspension, One point suspension, Rigid suspension, Spoke suspension, Machinery suspension)
4. Landing gear
5. Fifth wheel (2'' 3.5'')
6. King pin (2'' 3.5'')
7. Other axles and related parts (Low bed axle, hub, rims, spring, drum...)

Whyus?
1- Since 1996, With 20yrs experience
2- 2Years Guarantee for all the the beam of trailers
3- Reliability, Safety and Economic Transport solutions.
4- Custom Production according to demand
5- Strict quality control, out-standing quality assurance
6- Stock Trailers and immediate delivery
7- After-sale service available, Email will be reply within 8hours.

Our Advantage
1- With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable customers.
2- An professional team which is experienced with international market and has strong technical capability to customized cost effective.
3- Sell well in the international markets, such as African market (Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market.
4- 2Years Guarantee for all the the beam of trailers, timely shipment

Quality Control
1- For Each trailer, we should do the testing and inspect the quality.
2- We give inspection certificate according to customer demand for every trailer which given by an independent third party certification company.
3- We provide out-standing quality assurance
4- No any quality complaints for 9years.

Perfect Service &Support
1- Whenever reliability, safety and economic is needed, there is aa solution.Weihuaprovides the best possible quality semi trailers to worldwide valuable customers.
2- With afull range of trailer spate parts support, spare parts supplying within 3days
3- Seriously consider customer's requirements, and welcome different cooperation mode.
4- Provide professional trailer drawing
5- Considerate after-sales service &product maintenance
