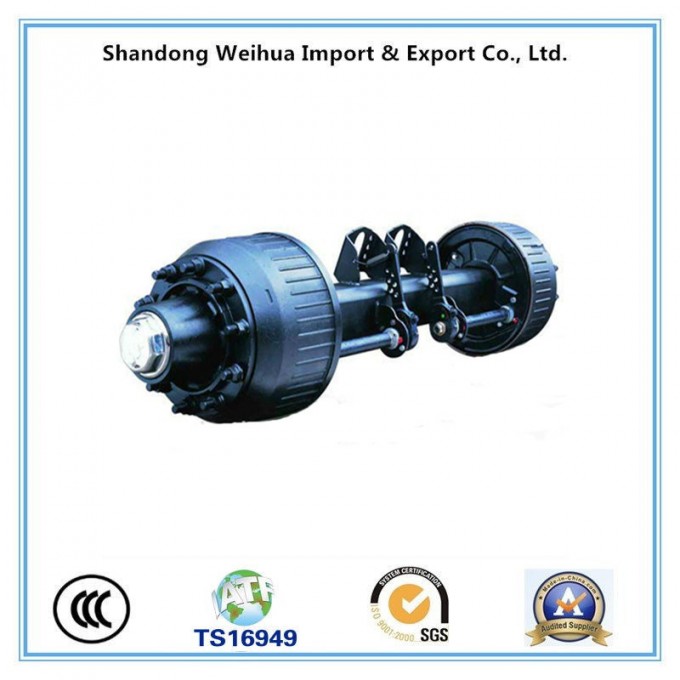

Trailer Parts, Germany Type Truck Trailer Axle

Trailer Parts, Germany Type Truck Trailer Axle:

Axle Type	Max. Capacity(T)	Track(mm)	Brake(mm)	Bearing	Axle	Center Distance of Brake Chamber (mm)	Wheel Fixing			Total Length	Recommended Wheel
							Stud	P.C.D(mm)	H (mm)
WH-12T	12	1840	Ø420 *180	3311833213	150	423	10-M22*1.5ISO	335	280.8	~2144	7.5V-20
WH-13T	13	1840	Ø420 *200	3311833213	150	360	10-M22*1.5ISO	335	280.8	~2144	7.5V-20
WH-14T	14	1840	Ø420 *200	3221933215	150	356	10-M22*1.5ISO	335	280.8	~2198	8.0V-20
WH-16T	16	1850	Ø420 *200	3222232314	150	360	10-M22*1.5ISO	335	280.8	~2265	8.5V-20
WH-18T	18	1850	Ø420 *200	3222232314	150	380	10-M22*1.5ISO	335	280.8	~2265	8.5V-20

Characteristics:
1.Special heat-treat,low-alloy steel axle beam,it has the vitues of good synthetic performance,strong load ability and lower self weight.
2.High quality alloy solid inserted spindle,through wholy heat treatment,provide superior fatigue capability.
3.High performance pmium non-asbestos brake linings,estend serbice life.
4.Easy for ABS installation.
5.Camshaft,matching with special seals,can ensure no entry of the grease into the brake drum,more safety.
6.New tight fit hub cap habe Orings,high property for sealing.
7.Grease lubricant is supplied by Mobil that lengthens the time of free maintenance.
8.Full range of stud fixing such as ISO,BSF and JAP,it can meet the requirements of various wheel rims.
Scope of our business:
1. Lowbed Semi trailer, tanker trailer, container semi trailer, stake semi trailer, side wall fence semi trailer, dumper /tipper semi trailer, heavy duty hidralic moudlar semi trailer, heavy duty fan blade transport semi trailer and so on.
2 Axles (German type axle, English type axle, American type axle, Spoke axle, ZM axle, Agriculture axle, Half axle, Axle without brake)
3. Suspension (Bogie suspension, One point suspension, Rigid suspension, Spoke suspension, Machinery suspension)
4. Landing gear
5. Fifth wheel (2'' 3.5'')
6. King pin (2'' 3.5'')
7. Other axles and related parts (Low bed axle, hub, rims, spring, drum...)

DEALING PROCESS
1. Send us inquiries on your desired product / model through our contact information.
2. We shall reply you within 12 hours.
3. Negotiations on your needed configuration.
4. Configuration on the tech data.
5. Sign contract.
6. 50% down payment or LC issuing.
7. Production
8. Manufacturig process updated news.
9. Production completement.
10. Shipment
11. Custom Clearance
12. A/S service for 1 year.


Contact information:
Shandong Weihua import & Export Co., Ltd is a research, production and sales in one of the industry and trade enterprises. Itis specialized in research, development, production of semi-trailer and special vehicles.Thefactoryis located in the special vehicle production base -- Liangshan,China.
Our company'smain products are as below:
Low bed semi trailer (including the trailer that can be extended to 53m)Containertrailer: Skeleton container trailers & flatbed container trailersSide wall semi trailerDump semi-trailerBulk cement tank trailerOil/fuel tank trailerVan / box semi trailersemi trailer accessories.
At the same time, we also operate brands of heavy trucks, tractors, engineering machinery and agricultural machinery.
Our factory has 20 years of production experience. It owns complete R&D center, vehicle and parts inspection center, rollover test laboratory, collision test place. The trailer payload is from 20 tons to 300 tons. The production capacity is over 10000 units per year.
Our trailers are widely exported to Russia, Outer Mongolia, Vietnam, Philippines, the middle east, Africa (such as Sultan, Nigeria, Algeria), South America and so on.
The company always adhere to the quality first, customer supme principle for good service to every customer. Each of vehicle that we produced has a high quality and reliability. We always strive to know your business to ensure we provide you thehigh quality trailers and servicing more intimately. You can inquiry usfor a solution to virtually and transport problems you may have. So, you can be assured of optimal operating efficiency, cost control and above all, reliability.
Warmly welcome the friends from all over the world to come for negotiation, cooperation and win-win.
FAQ
Whyus?
1- Since 1996, With 20yrs experience
2-2YearsGuaranteeforallthethebeamoftrailers
3-Reliability,SafetyandEconomicTransportsolutions.
4-CustomProductionaccordingtodemand
5-Strictqualitycontrol,out-standingqualityassurance
6-StockTrailersandimmediatedelivery
7-After-saleserviceavailable,Emailwillbereplywithin8hours.

OurAdvantage
1-Withwellexperiencedsemitrailerproductioncompanytoofferhighqualityandcompetitivepricessemitrailertoourworldwidevaluablecustomers.
2-Anprofessionalteamwhichisexperiencedwithinternationalmarketandhasstrongtechnicalcapabilitytocustomizedcosteffective.
3-Sellwellintheinternationalmarkets,suchasAfricanmarket(Sudan,Angola,Zimbabwe,Liberia,Djibouti,Congo,Kenya,Ghanaect.),MiddleEast,SouthAsiaandSouth-Americamarket.
4-2YearsGuaranteeforallthethebeamoftrailers,timelyshipment

QualityControl
1-ForEachtrailer,weshoulddothetestingandinspectthequality.
2-Wegiveinspectioncertificateaccordingtocustomerdemandforeverytrailerwhichgivenbyanindependentthirdpartycertificationcompany.
3- We provide out-standing quality assurance
4-Noanyqualitycomplaintsfor9years.

PerfectService&Support
1-Wheneverreliability,safetyandeconomicisneeded,thereisaasolution.Weihuaprovidesthebestpossiblequalitysemitrailerstoworldwidevaluablecustomers.
2-Withafullrangeoftrailerspatepartssupport,sparepartssupplyingwithin3days
3-Seriouslyconsidercustomer'srequirements,andwelcomedifferentcooperationmode.
4-Provide professional trailer drawing
5- Considerate after-sales service & product maintenance

Please feel free to contact and looking forward to your visiting factory.

Weihua will provide you with an individual concept !

Shandong Weihua can supply all kinds of semi trailers, we can design and produceaccording to your requirements.

DEALING PROCESS
1. Send us inquiries on your desired product / model through our contact information.
2. We shall reply you within 12 hours.
3. Negotiations on your needed configuration.
4. Configuration on the tech data.
5. Sign contract.
6. 50% down payment or LC issuing.
7. Production
8. Manufacturig process updated news.
9. Production completement.
10. Shipment
11. Custom Clearance
12. A/S service for 1 year.





Shandong Weihua import & Export Co., Ltd.
Attn: Lily Wang
Tel: 0086-531-82998839
Mobile: 0086 13864191393
Website: www.weihuavehicle.com
