Truck Semi Trailer ′s Axle of Axle Germany and Wh Axle

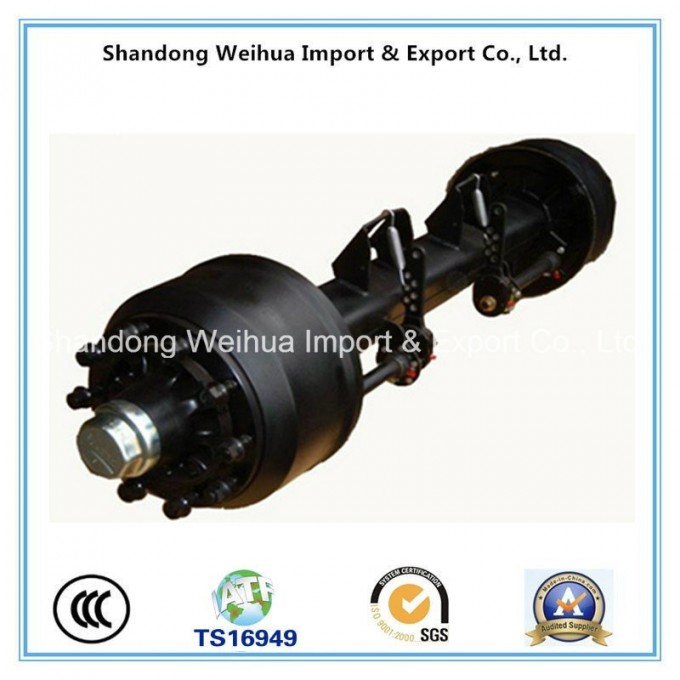

Item:Truck Semi Trailer 's Axle of Axle Germany and WH Axle
Type: Rear Axles

Axle Type	Max. Capacity(T)	Track(mm)	Brake(mm)	Bearing	Axle	Center Distance of Brake Chamber (mm)	Wheel Fixing			Total Length	Recommended Wheel
							Stud	P.C.D(mm)	H (mm)
WH-12T	12	1840	Ø420 *180	3311833213	150	423	10-M22*1.5ISO	335	280.8	~2144	7.5V-20
WH-13T	13	1840	Ø420 *200	3311833213	150	360	10-M22*1.5ISO	335	280.8	~2144	7.5V-20
WH-14T	14	1840	Ø420 *200	3221933215	150	356	10-M22*1.5ISO	335	280.8	~2198	8.0V-20
WH-16T	16	1850	Ø420 *200	3222232314	150	360	10-M22*1.5ISO	335	280.8	~2265	8.5V-20
WH-18T	18	1850	Ø420 *200	3222232314	150	380	10-M22*1.5ISO	335	280.8	~2265	8.5V-20

Characteristics:

1.Special heat-treat,low-alloy steel axle beam,it has the vitues of good synthetic performance,strong load ability and lower self weight.

2.High quality alloy solid inserted spindle,through wholy heat treatment,provide superior fatigue capability.

3.High performance pmium non-asbestos brake linings,estend serbice life.

4.Easy for ABS installation.

5.Camshaft,matching with special seals,can ensure no entry of the grease into the brake drum,more safety.

6.New tight fit hub cap habe Orings,high property for sealing.

7.Grease lubricant is supplied by Mobil that lengthens the time of free maintenance.

8.Full range of stud fixing such as ISO,BSF and JAP,it can meet the requirements of various wheel rims.

Scope of our business:
1. Lowbed Semi trailer, tanker trailer, container semi trailer, stake semi trailer, side wall fence semi trailer, dumper /tipper semi trailer, heavy duty hidralic moudlar semi trailer, heavy duty fan blade transport semi trailer and so on.
2 Axles (German type axle, English type axle, American type axle, Spoke axle, ZM axle, Agriculture axle, Half axle, Axle without brake)
3. Suspension (Bogie suspension, One point suspension, Rigid suspension, Spoke suspension, Machinery suspension)
4. Landing gear
5. Fifth wheel (2'' 3.5'')
6. King pin (2'' 3.5'')
7. Other axles and related parts (Low bed axle, hub, rims, spring, drum...)




FAQ

Q1. Are you amanufacturer?
Yes, we have been in special vehicle manufacturing and marketiing for over 20 years.

Q2. What markets do your vehicle export to?
South America, South-East Asia, Africa, Oceanica, Middle East countries etc.

Q3. What information should Ilet you know if Iwant to get aquotation?
Please let us know the your purpose,road condition,cargo type,tons of your cargo,dimensions of trailer,quantity etc. The more info you provide, the more accurate model and price you will get.

Q4. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.

Q5. How can Iget the price of your vehicle?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.

Please feel free contact me for any questions and requirements.
