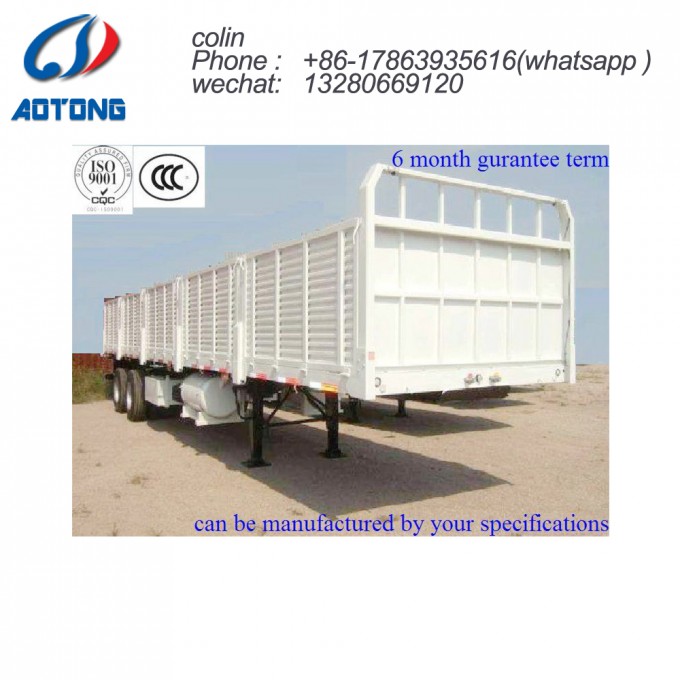

Side Wall Heavy Duty Truck Trailer with Flatbed Loading Deck

High Quality 3 Axle side wall semi trailer/Flatbed Lowbed Semi Trailer/Utility Trailer/Container Cargo Trailer (size optional )

Discription: 1. Model: LAT9390P
2. More than twelve years professional manufacturer experience
3. Be designed according to your requirements
4. CCC ISO9001 agreement
5. Small order can be accepted
6.12 month quality guarantee term
7. We accept 100% inspection, welcome to our factory at any time

Pls contact the supplier for details, good quotation and further product information will be provided as you required.
Contact:
Colin Zheng(sales Manager)
Tel: +86-17863935616

Product Specifications
Model Number	LAT9390P
Rated Load	55000 kg
Tare Weight	8000 kg
Wheel base	6810+1310+1310(mm)
TyreSpecifications	1100R20-18/12R22.5-18
No. Of the Tyres	12
Axle Brand	FUWA (BPW optional)
No. Of the Axles	3
Axle-load	24000 kg
King Pin	50#/90#
Landing Leg	28ton
Pieces of leaf-spring	10 (8)
Suspension	Independent stamping steel rigid suspension ( air suspension)
Departure Angle	13
Front/Rear Overhang	2200 mm
Outside Dimensions (LxWxH)	13000x2500X3090 (mm)
Interior Dimensions (LxWxH)	/
Material of the Main Beam	Q345B manganese plates, automatic submerged arc welded
Brake System	Dual line braking system/ABS
Brake Air Chamber	Six double chamber
Electrical	24V 7 ways(7 wire harness)
Optional	12 sets twistslocks can be installed for transporting 2x20' or 40' containers
Usage	is suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo.
Other Descriptions	The whole body adopts steel with good quality, and be manufactured by advanced skills and strict producing managerial processes. The frame is wearing structure, webs made from manganese plates from 400mm to 550mm high welded the upper and lower flange plates together, and the beam runs through the longitudinal beam makes the two parts a very strong unit by automatic submerged arc welding. frame using peen-forming processing.
Other Specifications	The max height of the rear guard from ground is 550mm, and the cross section is 180mmx70mm.
