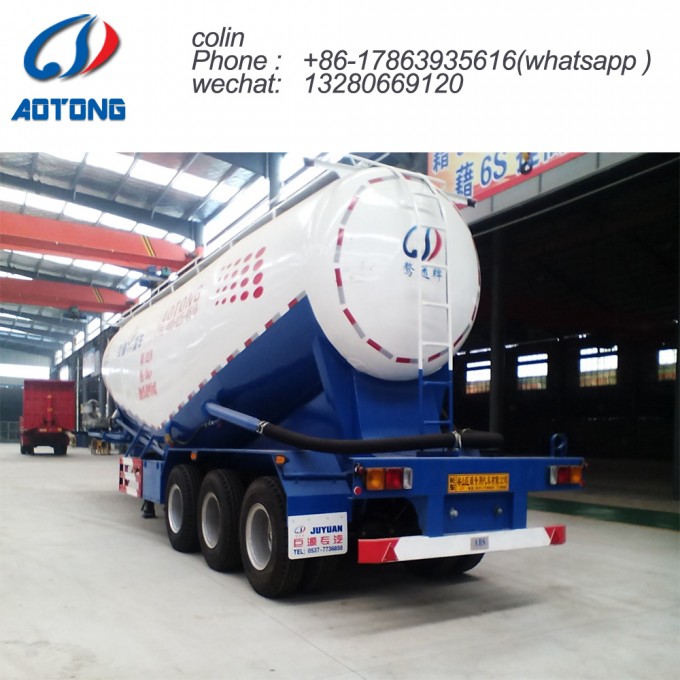

3 Axles 30-60cbm Bulk Cement Tank Carrier Semi Truck Trailer

CCC ISO Large Volume Bulk Powder Transportation Tank Semi Truck Trailer /Cement Cargo Tanker Trailer

Discription: 1. Model: LAT9405GFL(Size or Volume Optional)
2. Well welded tanker body
3. More than 16 years professional manufacturer experience
4. Be designed according to your requirements
5. CCC ISO9001 agreement
6. Small order can be accepted
7.12 month quality guarantee term
8. We accept 100% inspection, welcome to our factory at any time

Featuing bulk cement trailer:
(1)The bulk cement trailer are made by advanced techiniques from both Europe and China.
(2)Air compssor adopts special no lubrication vehicle air compssor for Bulk cement trailer.
(3)Key parts of the Bulk cement trailer have been equipped with high quality fittings purchased from those famous brands both at home and aboard.
(4)Tank body is welded by CO2 automatic welder.
(5)Easy maintenance and convenience for Bulk cement trailer.

Guarantee and after-sale service:
A----Mean beam 1 year quality guarantee term
B----Easily damaged parts warranty lifetime
C----Professional provide configaration and installation scheme
E----24 hours technical support by mail


Pls contact the supplier for details, good quotation and further product information will be provided as you required.

Product Specifications
Model Number	LAT9405GFL
Total Weight	40000 kg
Rated Load	29600/30500 kg
Tare Weight	10400/9500 kg
Volume	45M 3 ,diesel engine, air compssor optional, "V" shaped tank shell
Wheel base	5830+1310+1310 (mm)
TyreSpecifications	11.00R20-18PR 12R22.5-18PR
No. Of the Tyres	12
Axle Brand	FUWA (BPW optional)
No. Of the Axles	3
Axle-load	24000 kg
King Pin	50#/90#
Landing Leg	28ton
Pieces of leaf-spring	10(8)
Suspension	independent stamping steel rigid suspension (or air suspension)
Departure Angle	26
Front/Rear Overhang	1050 mm
Outside Dimensions	11000,10200x2500X3990 (LxWxH) (mm)
(Interior)Tank shell Dimensions	10000x2500X3100 (LxWxH) (mm)
Material of the Main Beam	Q345B manganese plates, automatic submerged arc welded
Brake System	Dual line braking system/ABS
Brake Air Chamber	Six double chamber
Electrical	24V 7 ways(7 wire harness)
Usage	The cargo's carrying part is tank-style designed, is suitable for the transportation of liquid products, bulk materials, and bulk cement.
Characteristics	1. High transport efficiency, ensuring the products will not be deteriorated in the process of transportation, saving the packing materials to reduce the transport costs. 2. Equipped with gasification bed, intake control system, and thrusting control system to ensure the pipelines unimpeded. 3. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed. 4. The diesel engine, providing compssed air.
Other Specifications	The sealing head theshell can be torque and ellipse, and internal anti-wave plates are installed. Heat pservation organization adopts the single-layer insulation by using compssed thick glass fiber, with good psence and light weight. The internal part can be single layer or dual layer

Company Information:
Qingdao Juyuan International Trading Co., Ltd.is an industry & trade company, with a factory,Liangshan Juyuan Special Vehicle Manufacturing Co., Ltd.

With advanced and proven technique in design, exploitation and production, our products with thebrand "Aotong"are enjoying high popularity inAmerica, the Middle East, Africa, Southeast Asia andRussia,specially get good feed back from Kenya,Tunisia,Saudi Arabia, the Philippines, Myanmar, Vietnam, Thailand, Bangladesh, Tanzania, mozambique, Congo, Nigeria, Russia, Singap,South Korea etc..
Now we provide more than 60 types of trailers. Our production can be done according to your requirements.
Welcome to visit our factory,we will pick you up from the airport or station.

DEALING PROCESS

1. Send us inquiries on your desired product / mdel through our contact information.
2. We shall reply you within 12 hours.
3. Negotiations on your needed configuration.
4. Configuration on the tech data.
5. Sign contract.
6.30% down payment or LC issuing.
7. Production
8. Manufacturig process updated news.
9. Production completement.
10. Shipment
11. Custom Clearance
12. A/S service for 1 year.

ExportMarketDistribution:

Market	TotalRevenue(%)	Main Country
TheMiddleEast	22.8	UAE,Bahrain,Iran,Iraq,Israel,Jordan,Kuwait,Lebanon,OmanQatar, SaudiArabia,Syria,Yemen,Egypt
SoutheastAsia	21.5	Vietnam,Philippines,Laos,Kampuchea,Thailand,Burma, Malaysia,Singapore,Indonesia,Brunei,EastTimor.
CentralAsia	5.5	Kazakhstan,Uzbekistan,Kyrgyzstan,Turkmenistan,Tajikistan
OtherAsiacountry	5.4	SouthKorea,India,Pakistan,Turkey
SouthAmerica	8.8	Brazil,Bolivia,Uruguay,Peru,Chile,Argentina,Dominica,Cuba, andsoon.
Europe	7.8	Russia,Belarusandsoon.
Africa	27.4	Congo,Tanzania,Ethiopia,Djibouti,Kenya,Angola,Chad, Egypt,Sudan,Libya,Tunisia,Algeria,Sudan,Egypt,Libya, Eritrea,Uganda,Rwanda,BurundiandtheSeychelles. Mauritania,WesternSahara,Senegal,Gambia,Mali, BurkinaFaso,Guinea,Guinea-Bissau,CapeVerde, SierraLeone,Liberia,Côted'Ivoire,Ghana,Togo,Benin, Niger,NigeriaandtheCanaryIslands.Cameroon,Equatorial Guinea,GabonandZambia,Angola,Zimbabwe, Malawi,Mozambique,Botswana,Namibia,andsoon.
NorthAmerica	0.8	Canada,America,Mexico

Your questions,we will anwser:

1. Can i have samples of this type of trailer to test the quality?


Yes, you can buy any samples to test the quality,our MOQ is 1 set.


2. What's the delivery time and can you lower the price?

It depends on your order. The delivery time is within 15 workdays after we received your ppayment. If you have place an order of large quantities, then ,of course, the price can be lowered.

3. Can i customize the painting and the trailer design?

Yes, we offer customized design and logo forreasonable type.

4. What's the payment method?

TT 30% as Deposit, Balance Before shipment by TT or L/C at sight
5.How do you ensure its quality?
We are direct factory and we have professional quality inspector.We will not let any imperfections departure from our factory.

ITEMNAME			WARRANTY	ITEMNAME		WARRANTY
MAINframe	frame		1YEAR	RUNNINGGEAR	AXLE	6MONTHS
	SUSPENSION		6MONTHS		AXLEBEARING	3MONTHS
	KINGPIN		1YEAR		WHEELHUB	3MONTHS
	BALANCEARM		3MONTHS		TIRE	6MONTHS
ITEMNAME			WARRANTY	ITEMNAME		WARRANTY
BRAKINGDEVICE		BRAKEDRUM	3MONTHS	SUPPORTDEVICE	LANDINGGEAR	6MONTHS
		BRKECHAMBER	3MONTHS		SPAREWHEELCARRIER	6MONTHS
		AIRRESERVOIR	6MONTHS
ITEMNAME					WARRANTY
OTHERS		LEAFSPRING			3MONTHS
		BRAKECHAMBERDIAPHRAGM			3MONTHS
		EMERGENCYRELAYVALVE			3MONTHS
		BRAKESHOE			3MONTHS
		RELAYVALVE			3MONTHS
