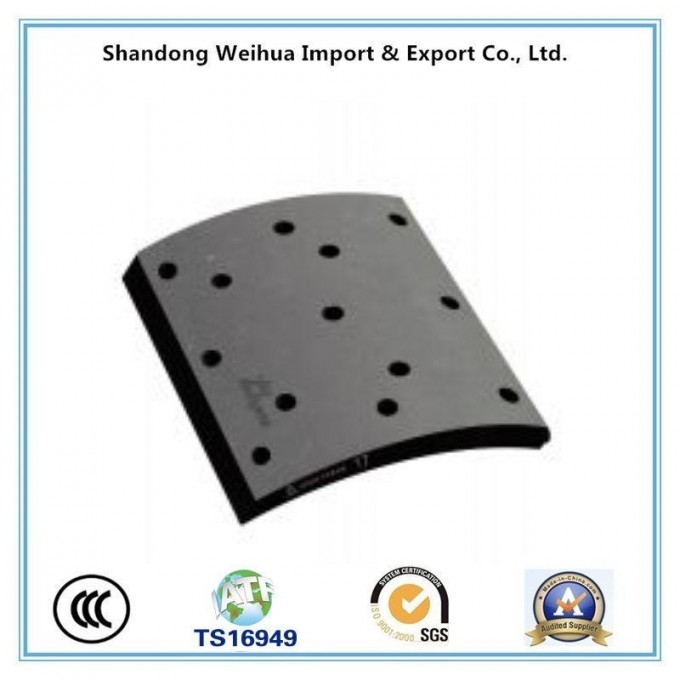

High Performance Truck Trailer Brake Lining From China

1. Features:
Special material can reduce the noise and high temperature resistance, making your brake lining long live. Special tech-nology can improve stability, safety. matching the lux bus, heavy truck and train.

2.Here provide the spare parts data sheet for your consideration only:

BRAKELINERINFORMATION
Model	BFMC	OEM	FMSI	WVA	(LxWxH)mm	DrilingQty/rivetSize ØxLxα
WH-DL001		3501407-01			219x80x14.5	6/ 8x24x120°
WH-DL002		35010-105			200x80x14.5	6/ 8x24x120°
WH-DL003		35016B-105			201x100x14.5	6/ 8x24x120°
WH-DL004		3501407-02B1			209x100x14.5	6/ 8x24x120°
WH-DL005			1443		393.4x101.6x8.8/14
WH-DL006			1308		393.7x101.6x12
WH-DL007	FD86		4702		184x101.6x11/18 B176x101.6x16/19
WH-DL008			4644A/4516	19017/19977	206x203x15/18 209x203x10.5/18	16/ 6x16x145°
WH-DL009		35020-105			200x125x14.5	6/ 8x24x120°
WH-DL010		3502407-01			219x125x14.5	6/ 8x24x120°
WH-DL011	TT11/12/1		4524B		206x127x15/18 209x127x11/18	12/ 13.5x6.5x180°
WH-DL012		3501N-105			199x130x14.5	6/ 7x22x145°/ 8x24x120°/ 10x22x180°/
WH-DL013			19844/19845		185x160x12/16 140x160x14/16	8/8x22x180° 6/8x22x180°
WH-DL014	LL68/69/1		4514G	19088/19089	206x150x15/18 209x150x10.5/18	12/ 6x16x145°
WH-DL015		3501N(12)-105-B			208x150x14.5	10/ 6x22x145°
WH-DL016		DZ9100440501			208x150x14.5	10/ 6x22x145°
WH-DL017				5654	206x151x11/21 206x151x17/21	12/ 6x22x145°
WH-DL018	RN/100/1			19934	205x151x19	8/ 8x22x80°
WH-DL019	VL74/1			19560/19561	210x152x19/11.6 180/152/19/15
WH-DL020				5526A	190x155x10/18	10/ 6x22x145°
WH-DL021				5526B	190x155x16/18	11/ 6x22x145°
WH-DL022		WG9100440027		19782	146x160x14.5	6/ 10x22x180°
WH-DL023		WG9100440029		19245	200x160x14.5	8/ 10x22x180° 10x22x120°
WH-DL024		WG9100440027			146x160x14.5	6/ 10x22x180°
WH-DL025	MB/31/1	3501041A	4671	19486/19494	198x163x11.5/16	8+1/ 8x24x180°
WH-DL026	MP/74/1	81502210535		19580	192x163x13.5/16	8/ 8x22x180°
WH-DL027	MP/75/1	81502210540		19579	235x163x8/16	10/ 8x22x180°
WH-DL028				17950	185x133x9/13 140x133x12/13	8/8x22x180° 6/8x22x180°
WH-DL029		81.50221.0535 81.50221.0540			235x163x8/16	10/ 8x22x180°
					SL-DL030	8/ 8x22x180°
WH-DL031	VL/87/1			19935	204x175x18.5	14/ 6x22x145°
WH-DL032	RN/101/1					8/ 8x24x180°
WH-DL033		077S23-IN	4709		197.6x177.8x14.5/21.5
WH-DL034				19283/19284	210x177.8x11/19 210x177.8x15.9/19
WH-DL035		046S23-IN	4707		209x178x11/21 206x178x17/21
WH-DL036		L4515ECAM/ANC 16HOLES	4515		209x178x10.5/18 206x178x15/18	16/ 6x16x145°
WH-DL037		4311GD	4311J		199x178x18.6
WH-DL038	IL66/67/3		4515CD	19036/19037	209x178x10.5/18 206x178x15/18	12/ 6x16x145°
WH-DL039		051S23-IN	4515E		209x178x10.5/18 206x178x15/18	16/ 6x16x145°
WH-DL040		3502N-105			214x180x16	9/ 10x22x118°
WH-DL041	BC36/1			19032	220x180x10.5/18	10/ 8x16x120°
WH-DL042		3501ZB6-105			214x180x14.5	8/ 8x24x120°
WH-DL043					214x180x18	10/ 8x24x120°
WH-DL044	MP/32/1	A6174231710	WG9231342068	19487/19495	200x183x11.5/16	8+2/ 8x22x180° 8x22/120°
WH-DL045		3502041C			200x183x11.5/16	8/ 8x24x120°
WH-DL046		WG92200340068 199000340068		19246	200x185x14.5	8/ 10x22x180° 10x22x120°
WH-DL047	VL/88/1			19939	192x200x13/18	14/ 6x22x145°
WH-DL048	BC37/1	05.091.27.83.0		19094	220x200x10.5/18	10/ 8x22x180°
WH-DL049	BC101/1, BC100/1			19902/19903	215x200x10.5/17 172x200x12.5/17	10/ 6x16x145° 8/ 6x16x145°
WH-DL050	VL/77/1			19562/19563	210x203x15/19 161x202x15/19
WH-DL051	RW2/3		4644A	19365/19366	210x203x17.5/10.5 210x203x18/14.5
WH-DL052		350ZAS01-105			225x220x10.5/16	15/ 6x22x145°
WH-DL053		3502ZS10-105			210x220x16	16/ 10x22x180°
WH-DL054		AZ9231342010			200x220x14.5	14/ 10x22x180°
WH-DL055		1901		19187	216x220x17.5	9/ 10x22x118°
WH-DL056	FU4/5/1		4551	19369/0	209x220x10.5/18 209x220x10.5/18	16/ 6x16x145°
WH-DL057	FU4/5/3		4511E	19369/19370	206x220x10.5/18 209x220x10.5/18	12/ 6x16x145°
WH-DL058	BC8/11			19591	220x22011/18
WH-DL059	MP/36/1	A6174231911		19488/19496/19940	196x220x11.5/16	8+2/ 8x24x180°
WH-DL060		"3502N(12)-105-B"		29938	213x220x14.5	15/ 6x16x145°
WH-DL061			4551	19369/0	206x220x15/18 209x220x10.5/18	16/ 10x22x180°
WH-DL062		DZ9160340068			200x220x14.5	16/ 6x16x145°
WH-DL063		3502ZS10-105			225x220x10.5/16	15/ 6x22x145°
WH-DL064		AZ9231342018			200x220x14.5	8/ 10x22x180°
WH-DL065		AZ9231342068			200x220x14.5	14/ 10x22x180°
WH-DL066				5527A	190x220x10/18	13/ 6x22x145°
WH-DL067				5527B	190x220x16/18	14/ 6x22x145°
WH-DL068	MB/78/1	DZ9112340062		19582	190x222x14/16	8/ 8x22x180°
WH-DL069	MB/77/1	DZ9112340063		19581	230x222x7.5/16	10/ 8x22x180°
WH-DL070		DZ9112340062 DZ9112340063			230x222x7.5/16	10/ 8x22x180°
					SL-DL071	8/ 8x22x180°
WH-DL072		3502ZS10B-105 3502ZS10B-107				12/ 8x24x180°
WH-DL073	SV27/1			19393	210x203x19	16/ 6x16x145°
WH-DL074				19728/19729	209x220x10.5/18 206x220x15/18
WH-DL075				HT	224X227x15/18.5
WH-DL076				17307	304.5x125X10
WH-DL077				17308	364x125X10
WH-DL078				17829	262.4x100x10
WH-DL079				19049	325x150x10
WH-DL080				6286	315x82.5x10
WH-DL081				17830	330x100x10
WH-DL082				19199	365x150x10
WH-DL083		JF00806E62			285x69.5x4.8
WH-DL084			4705		193x178x15.2
WH-DL085			4710		185x220x15/18.8
WH-DL086		WG9360345366
WH-DL087		WG9360345367
WH-DL088		3502ZB1-105 24402261
WH-DL089		AZ97614502
WH-DL090		AZ976231342068 WG9231342069
WH-DL091			Y516
WH-DL092				17167
WH-DL093				19385
WH-DL094				19477
WH-DL095				19478
WH-DL096				19582
WH-DL097	GG72/1				287x60x5
WH-DL098	MC65/-S				285x67x6.5
WH-DL099	MC65/-S				285x67x7.5
WH-DL100	AT22/1				400x70x9.5
WH-DL101					345x75.5x9.5
WH-DL102			5901		320x75x11
WH-DL103			2137		330x76.4x8
WH-DL104	MZ77/S				340x77x8
WH-DL105					310x80x10
WH-DL106	BO/27			17713	430x81x11
WH-DL107	BO/28			17714	425x81x5.5
WH-DL108	MZ85/S				340x85x8
WH-DL109	MZ90/S				340x90x8
WH-DL110	MZ100/S				340x100x10
WH-DL111					153x100x16.4
WH-DL112			6228		330x100x11
WH-DL113					210x100x9(8/194)
WH-DL114					178x100x9(6/194)
WH-DL115					180x100x18.5/16(8/188)
WH-DL116					182x104x17/11(8/188)
WH-DL117	MP182		4697		195x120x17/12
WH-DL118			4536
WH-DL119			4639		395x127x13
WH-DL120			4646		390x127x13
WH-DL121			1196		430x127x10
WH-DL122			1254		400x127x14.5
WH-DL123			1252		390x127x12.5
WH-DL124					175x130x14
WH-DL125					175x130x14
WH-DL126			1418		205x140x15
WH-DL127	MB60/1			17276	195x140x15
WH-DL128	MP30/1			17683	195x140x17.5/12.5
WH-DL129					345x152x13
WH-DL130			1255		420x152.4x13
WH-DL131	CF20/3			19150	230x152.4x18.5/10
WH-DL132	CF21/3			19151	240x152.4x18.5/15.5
WH-DL133			4596		410x153x13.2
WH-DL134		WG9100440029			185x160x14.8(8/195)
WH-DL135		WG9100440027			136x160x14.8(6/195)
WH-DL136	MA16/1-S				205x160x15
WH-DL137					200x160x15.5
WH-DL138	MB51/1			19160	205x170x15
WH-DL139				19463	400x175x14
WH-DL140	VL/87/2			19090	192x175x18.7/13.7
WH-DL141					200x177x17.5/12.8(16/200)
WH-DL142			4597		410x177x13
WH-DL143			4527		230x178x19
WH-DL144					185x178x21.4/18.0(14/203)
WH-DL145					195x178x18.2/11.8/Mack12hole
WH-DL146					197x178x18/15.5
WH-DL147	SV8/1			19075	200x178x19
WH-DL148	CW4/1			19384	206x178x18/12.5
WH-DL149	DF16/2			19256	230x180x18.5/9.5
WH-DL150	DF17/2			19260	240x180x18.5/15
WH-DL151					191x180x18.5/15.8(12/203)
WH-DL152	TR18/1				192x180x14/11
WH-DL153		352453			206x180x14/11
WH-DL154					200x185x15.5
WH-DL155					186x185x15.0
WH-DL156					177x200x17.6/12.4(12/200)
WH-DL157		352443			206x200x17.5/11
WH-DL158	BC80/1			19574	160x200x17.5/11
WH-DL159	VL/89/2			19068	192x200x18.7/13.7
WH-DL160	DF32/1			19890	195x200x18.7/11.5
WH-DL161	DF33/1			19891	195x200x19/15.5
WH-DL162					200x200x17.1/12(12/200)
WH-DL163					190x202x21.7/17.6(16/203)
WH-DL164			4517		210x203x21/12 210x203x21.5/18.5
WH-DL165	DV20/1				208x230x15.3
WH-DL166	NN61/1			19683	211x203x15.5
WH-DL167					190x221x18.4/15.8(12/203)
WH-DL168			4674		200x219x18.6
WH-DL169					188x219x18.5/15.5
WH-DL170					195x219x18.5/11.0

BRAKEPADINFORMATION
Model	(LxWxH)mm	WVA
WH-BO1001	240.5x124.8x25	29011
WH-BO1002	190.8x86.85x23	29017
WH-BO1003	249.7x118.2x28	29030
WH-BO1004	205.5x110x25	29032
WH-BO1005	247.6x107.6x30	29061
WH-BO1006	175.5x78x22	29067
WH-BO1007	204.5x106x27	29077
WH-BO1008	247.5x109.5x30	29087
WH-BO1009	175.5x85.7x26	29088
WH-BO1010	249.6x114.5x28.2	29090
WH-BO1011	210.4x92.5x30	29093
WH-BO1012	210.4x92.5x30	29095
WH-BO1013	213.8x112.5x25.2	29100
WH-BO1014	164.6x66.6x20	29121
WH-BO1015	175.2x85.5x22	29122
WH-BO1016	205.4x101.8x27	29124
WH-BO1017	249.2x111x29	29125
WH-BO1018	210.4x92.5x30	29126
WH-BO1019	349.3x117.9x30.25	29131
WH-BO1020	175.2x88.7x29.5	29136
WH-BO1021	210x102.5x29	29137
WH-BO1022	204.5x99.6x29.5	29141
WH-BO1023	204.5x99.6x29.5	29142
WH-BO1024	247.6x108.3x30	29143
WH-BO1025	173.5x84x27	29148
WH-BO1026	210.7x108x29.6	29158
WH-BO1027	210.4x109.6x31.85	29162
WH-BO1028	210.7x92.5x30	29165
WH-BO1029	247.5x109.5x30	29167
WH-BO1030	210.6x100.8x30	29169
WH-BO1031	210.7x108.5x30	29171
WH-BO1032	216x99.5x29.2	29173
WH-BO1033	249.6x109.6x29.2	29174
WH-BO1034	210.5x99.7x29.2	29177/29169
WH-BO1035	247.6x109x30	29179
WH-BO1036	210x92x30	29181
WH-BO1037	175.5x78x22	29302
WH-BO1038	139x121x31.5	29747
WH-BO1039	174.3x85.6x21.5	29835
WH-BO1040	248.95x116.6x29.5	29187
WH-BO1041	190.8x86.5x22.5	29024

3.Company information:

Shandong Weihua import & Export Co., Ltd.is a research, production and sales in one of the industry and trade enterprises. It is specialized in research, development, production of semi-trailer and special vehicles. Thefactoryis located in the special vehicle production base -- Liangshan,China.
Our company'smain products are as below:
Low bed semi trailer (including the trailer that can be extended to 53m)
Containertrailer: Skeleton container trailers & flatbed container trailers
Δ Side wall semi trailer
Δ Dump semi-trailer
Δ Bulk cement tank trailer
Δ Oil/fuel tank trailer
Δ Van / box semi trailer
Δ semi trailer accessories.
At the same time, we also operate brands of heavy trucks, tractors, engineering machinery and agricultural machinery.
Our factory has 20 years of production experience. It owns complete R&D center, vehicle and parts inspection center, rollover test laboratory, collision test place. The trailer payload is from 20 tons to 300 tons. The production capacity is over 10000 units per year.
Our trailers are widely exported to Russia, Outer Mongolia, Vietnam, Philippines, the middle east, Africa (such as Sultan, Nigeria, Algeria), South America and so on.
The company always adhere to the quality first, customer supme principle for good service to every customer. Each of vehicle that we produced has a high quality and reliability. We always strive to know your business to ensure we provide you thehigh quality trailers and servicing more intimately. You can inquiry usfor a solution to virtually and transport problems you may have. So, you can be assured of optimal operating efficiency, cost control and above all, reliability.
Warmly welcome the friends from all over the world to come for negotiation, cooperation and win-win.

4.FAQ

Whyus?

1- Since 1996, with 20 years experience
2-2 years guaranteeforallthe beamoftrailers
3-Reliability, safetyand economic transportsolutions.
4-Custom productionaccordingtodemand
5-Strictqualitycontrol,out-standingqualityassurance
6-Stock trailersandimmediatedelivery
7-After-saleserviceavailable, emailwillbereplywithin8hours.

OurAdvantage

1-Withwellexperiencedsemitrailerproductioncompanytoofferhighqualityandcompetitivepricessemitrailertoourworldwidevaluablecustomers.
2-Anprofessionalteamwhichisexperiencedwithinternationalmarket hasstrongtechnicalcapabilityto
customizedcosteffective.
3-Sellwellintheinternationalmarkets,suchasAfricanmarket(Sudan,Angola,Zimbabwe,Liberia,Djibouti,Congo,Kenya,Ghanaect.),MiddleEast,SouthAsiaandSouth-Americamarket.
4-2YearsGuaranteeforallthethebeamoftrailers,timelyshipment

QualityControl

1-For eachtrailer,weshoulddothetestingandinspectthequality.
2-Wegiveinspectioncertificateaccordingtocustomerdemandforeverytrailer givenbyanindependentthirdpartycertificationcompany.
3- We provide out-standing quality assurance
4-Noanyqualitycomplaintsfor9years.

PerfectService&Support

1-Wheneverreliability,safetyandeconomicisneeded,thereisa solution.Weihuaprovidesthebestpossiblequalitysemitrailerstoworldwidevaluablecustomers.
2-Withafullrangeoftrailerspatepartssupport,sparepartssupplyingwithin3days
3-Seriouslyconsidercustomer'srequirements,andwelcomedifferentcooperationmodes.
4-Provide professional trailer drawing
5- Considerate after-sales service & product maintenance

Advantage:

1.Creativedesignforyourownspecialtransportationprogram.
2.Hightensilesteelprovidesthestrongestperformanceofsemitrailer.
3.Automatic submerged are welding and straightening machines that make main beam.
4.Onecoatblastingplustwocoatspolyesterpainting.
5.StandardandBrandsofsemitrailerpart

Packing & Shipping

1. We willsparky waxfor the trailer before shipment against saltwater corrosion.
2. Regarding to the shipping method, you could choose which one is better for you, bycontainer vessel, Ro-Ro vesselor by bulk vessel.
3. We providelowest shipping freightbased on the long-term cooperation relationship with ship agency

Advantage:

1.Creativedesignforyourownspecialtransportationprogram.
2.Hightensilesteelprovidesthestrongestperformanceofsemitrailer.
3.Automatic submerged are welding and straightening machines that make main beam.
4.Onecoatblastingplustwocoatspolyesterpainting.
5.StandardandBrandsofsemitrailerpart

Packing & Shipping

1. We willsparky waxfor the trailer before shipment against saltwater corrosion.
2. Regarding to the shipping method, you could choose which one is better for you, bycontainer vessel, Ro-Ro vesselor by bulk vessel.
3. We providelowest shipping freightbased on the long-term cooperation relationship with ship agency


Please feel free to contact and looking forward to your visiting factory.

Weihua will provide you with an individual concept !

Shandong Weihua can supply all kinds of semi trailers, we can design and produceaccording to your requirements.


Welcome to visit our factory and China!

Waiting for your kind inquiry.

Pls contact susan Wang for more details.
