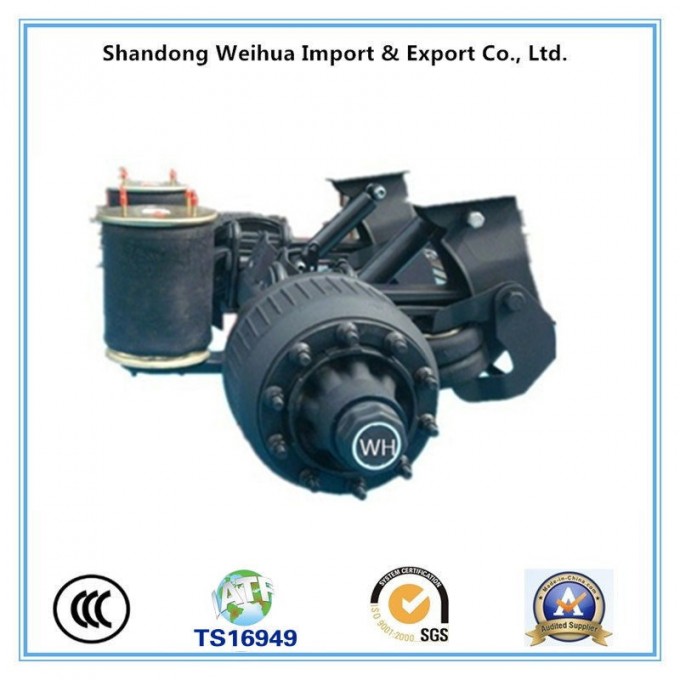

Semi Truck Trailer ′s Suspension Parts of 11ton Germany Type

Item: Semi Truck Trailer 's Suspension parts of 11ton Germany Type
Type:Suspension

Model	Axlelift	Ratedload(KG)	AxleBeam(mm)	Leafspring(mm)	Airbagspec.	L1(mm)	L2(mm)	H1(mm)	H2(mm)	H3(mm)
WHMA9-1	NO	9000	120 (square)	1-100x50	350/300	500	380	268	210	318
WHMA9-2	NO	9000	120 (square)	1-100x50	350/300	500	380	268	426	318
WHMA9-3	YES	9000	120 (square)	1-100x50	350/300,260	500	380	268	210	318
WHMA9-4	YES	9000	120 (square)	1-100x50	350/300,260	500	380	268	426	318
WHMA9-5	NO	9000	Ø127	1-100x50	350/300	500	380	268	210	318
WHMA9-6	NO	9000	Ø127	1-100x50	350/300	500	380	268	426	318
WHMA9-7	YES	9000	Ø127	1-100x50	350/300,260	500	380	268	210	318
WHMA9-8	YES	9000	Ø127	1-100x50	350/300,260	500	380	268	426	318
WHMA11-1	YES	11000	150 (square)	2-100x40	350,260	550	385	268	444	423
WHMA11-2	NO	11000	150 (square)	2-100x40	350	550	385	268	444	423
WHMA11-3	YES	11000	Ø127	2-100x40	350,260	550	385	268	422	423
WHMA11-4	NO	11000	Ø127	2-100x40	350	550	385	268	422	423

2. Production feature:

-- Special heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
-- High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability.
-- High performance pmium non-asbestos brake linings, estend serbice life.
-- Easy for ABS installation.
-- Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety.
-- New tight fit hub cap habe Orings, high property for sealing.
--Grease lubricant is supplied by Mobil that lengthens the time of free maintenance.
--Full range of stud fixing such as ISO, TS16949, it can meet the requirements of various wheel rims.

3.Scope of our business:
1. Lowbed Semi trailer, tanker trailer, container semi trailer, stake semi trailer, side wall fence semi trailer, dumper /tipper semi trailer, heavy duty hidralic moudlar semi trailer, heavy duty fan blade transport semi trailer and so on.
2 Axles (German type axle, English type axle, American type axle, Spoke axle, ZM axle, Agriculture axle, Half axle, Axle without brake)
3. Suspension (Bogie suspension, One point suspension, Rigid suspension, Spoke suspension, Machinery suspension)
4. Landing gear
5. Fifth wheel (2'' 3.5'')
6. King pin (2'' 3.5'')
7. Other axles and related parts (Low bed axle, hub, rims, spring, drum...)




Whyus?
1- Since 1996, With 20yrs experience
2-2YearsGuaranteeforallthethebeamoftrailers
3-Reliability,SafetyandEconomicTransportsolutions.
4-CustomProductionaccordingtodemand
5-Strictqualitycontrol,out-standingqualityassurance
6-StockTrailersandimmediatedelivery
7-After-saleserviceavailable,Emailwillbereplywithin8hours.

OurAdvantage
1-Withwellexperiencedsemitrailerproductioncompanytoofferhighqualityandcompetitivepricessemitrailertoourworldwidevaluablecustomers.
2-Anprofessionalteamwhichisexperiencedwithinternationalmarketandhasstrongtechnicalcapabilitytocustomizedcosteffective.
3-Sellwellintheinternationalmarkets,suchasAfricanmarket(Sudan,Angola,Zimbabwe,Liberia,Djibouti,Congo,Kenya,Ghanaect.),MiddleEast,SouthAsiaandSouth-Americamarket.
4-2YearsGuaranteeforallthethebeamoftrailers,timelyshipment

QualityControl
1-ForEachtrailer,weshoulddothetestingandinspectthequality.
2-Wegiveinspectioncertificateaccordingtocustomerdemandforeverytrailerwhichgivenbyanindependentthirdpartycertificationcompany.
3- We provide out-standing quality assurance
4-Noanyqualitycomplaintsfor9years.

PerfectService&Support
1-Wheneverreliability,safetyandeconomicisneeded,thereisaasolution.Weihuaprovidesthebestpossiblequalitysemitrailerstoworldwidevaluablecustomers.
2-Withafullrangeoftrailerspatepartssupport,sparepartssupplyingwithin3days
3-Seriouslyconsidercustomer'srequirements,andwelcomedifferentcooperationmode.
4-Provide professional trailer drawing
5- Considerate after-sales service & product maintenance
