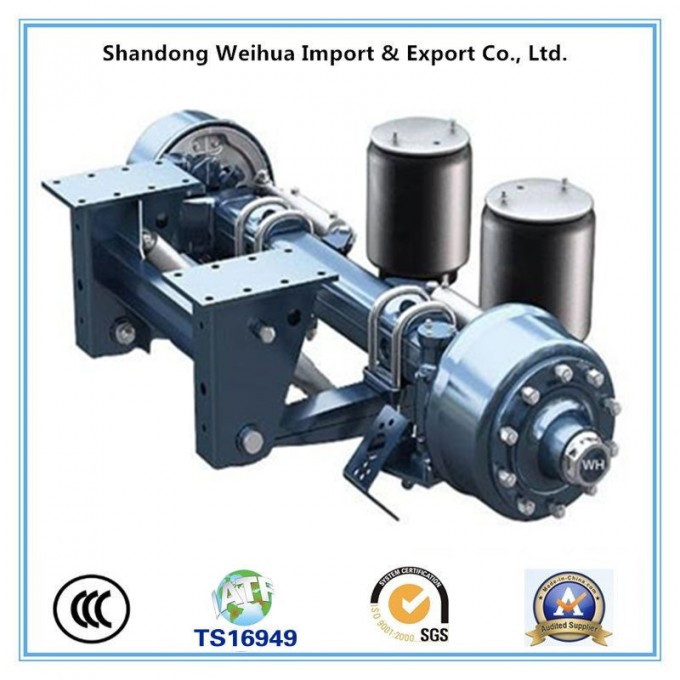

11ton American Type Air Suspension of Semi Trailer for Sale

1. Specification:

Model	Axle lift	Rated load (KG)	Axle Beam(mm)	Leaf spring(mm)	Air bag spec.	L1 (mm)	L2(mm)	H1 (mm)	H2 (mm)	H3 (mm)
WHGA11-1	NO	11000	Ø127	2-100 X38	350	500	380	296	206	230
WHGA11-2	NO	11000	Ø127	2-100 X38	350	500	380	296	206	335
WHGA11-3	NO	11000	Ø127	2-100 X38	350	500	380	296	442	335
WHGA11-4	NO	11000	Ø127	2-100 X38	350	500	380	276	210	257
WHGA11-5	YES	11000	Ø127	2-100 X38	350, 260	500	380	251	400	407
WHGA11-6	NO	11000	150(square)	2-100 X38	350	500	380	231	400	413
WHGA11-7	YES	11000	150(square)	2-100 X38	350, 260	500	380	231	400	413

2. Production feature:
-- Special heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
-- High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability.
-- High performance pmium non-asbestos brake linings, estend serbice life.
-- Easy for ABS installation.
-- Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety.
-- New tight fit hub cap habe Orings, high property for sealing.
--Grease lubricant is supplied by Mobil that lengthens the time of free maintenance.
--Full range of stud fixing such as ISO, TS16949, it can meet the requirements of various wheel rims.

3. Scope of our business:
3-1. Lowbed Semi trailer, tanker trailer, container semi trailer, stake semi trailer, side wall fence semi trailer, dumper /tipper semi trailer, heavy duty hidralic moudlar semi trailer, heavy duty fan blade transport semi trailer and so on.
3-2 Axles (German type axle, English type axle, American type axle, Spoke axle, ZM axle, Agriculture axle, Half axle, Axle without brake)
3-3. Suspension (Bogie suspension, One point suspension, Rigid suspension, Spoke suspension, Machinery suspension)
3-4. Landing gear
3-5. Fifth wheel (2'' 3.5'')
3-6. King pin (2'' 3.5'')
3-7. Other axles and related parts (Low bed axle, hub, rims, spring, drum...)

4. Company information:

Shandong Weihua import &Export Co., Ltd is aresearch, production and sales in one of the industry and trade enterprises. It is specialized in research, development, production of semi-trailer and special vehicles. The factory is located in the special vehicle production base -- Liangshan, China.
Our company's main products are as below:Low bed semi trailer (including the trailer that can be extended to 53m)Container trailer: Skeleton container trailers &flatbed container trailersSide wall semi trailerDump semi-trailerBulk cement tank trailerOil /fuel tank trailerVan /box semi trailersemi trailer accessories.At the same time, we also operate brands of heavy trucks, tractors, engineering machinery and agricultural machinery.
Our factory has 20 years of production experience. It owns complete R&D center, vehicle and parts inspection center, rollover test laboratory, collision test place. The trailer payload is from 20 tons to 300 tons. The production capacity is over 10000 units per year.
Our trailers are widely exported to Russia, Outer Mongolia, Vietnam, Philippines, the middle east, Africa (such as Sultan, Nigeria, Algeria), South America and so on.
The company always adhere to the quality first, customer supme principle for good service to every customer. Each of vehicle that we produced has ahigh quality and reliability. We always strive to know your business to ensure we provide you the high quality trailers and servicing more intimately. You can inquiry us for asolution to virtually and transport problems you may have. So, you can be assured of optimal operating efficiency, cost control and above all, reliability.
Warmly welcome the friends from all over the world to come for negotiation, cooperation and win-win.
FAQ:
Why us?
1- Since 1996, With 20yrs experience
2- 2Years Guarantee for all the the beam of trailers
3- Reliability, Safety and Economic Transport solutions.
4- Custom Production according to demand
5- Strict quality control, out-standing quality assurance
6- Stock Trailers and immediate delivery
7- After-sale service available, Email will be reply within 8hours.

Our Advantage
1- With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable customers.
2- An professional team which is experienced with international market and has strong technical capability to customized cost effective.
3- Sell well in the international markets, such as African market (Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market.
4- 2Years Guarantee for all the the beam of trailers, timely shipment

Quality Control
1- For Each trailer, we should do the testing and inspect the quality.
2- We give inspection certificate according to customer demand for every trailer which given by an independent third party certification company.
3- We provide out-standing quality assurance
4- No any quality complaints for 9years.

Perfect Service &Support
1- Whenever reliability, safety and economic is needed, there is aa solution. Weihua provides the best possible quality semi trailers to worldwide valuable customers.
2- With afull range of trailer spate parts support, spare parts supplying within 3days
3- Seriously consider customer's requirements, and welcome different cooperation mode.
4- Provide professional trailer drawing
5- Considerate after-sales service &product maintenance
