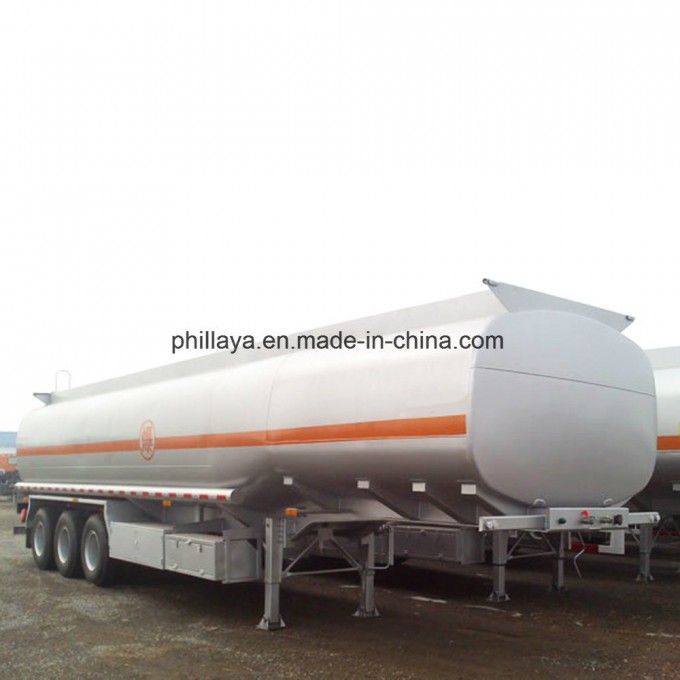

60000 Liters Three Axles Fuel Trailer Oil Tanker Truck

1. Advantage:
Axle FUWA or BPW, suspension could be air or steel kind. If air kind, first axle liftable;
Volume could be made as per your requirement;
Compartments also optional;
Special material for the head&end of tank;
Plenty of tools and spare parts in toolbox for you.

2. Specifications

Model
Fuel tank semi trailer
Dimension (mm)
Overall dimension: 12x2.5x3.8 m
King pin: size of 2''
Capacity
35cub metres, payload 32MT.
Tare weight: no more than 8T.
Chassis
Main beam: height of 400mm, material of Q345B, welded by automatic submerged-arc processes.
Constructed of original main beams electrically welded with corresponding extra strong cross members, material of Q345B.
TankTank body thickness: 5mm/Q235BDish end thickness: 5mm/Q235BBaffle: 5mm/Q235BDish end shape: OvalCompartment(piece): 4Axle
3 sets of 13T type, with double tyres formation.
Suspension
Independent stamping steel rigid suspension, with a set of double-axle leaf springs.
Tyre & wheel rim
Tyre size: 11R22.5, Triangle brand, 12 pcs per trailer.
Wheel size: 8.25*22.5, 12 pcs per trailer, assembled with tyres.
Landing gear
Heavy duty 28T landing gear.
Brake System
Dual line air brake system. T30/30 type brake chambers on each axle
Painting
Sand Blasting before painting, one coat of primer then two coats.
Welding
Long member beams be CO2 Arc welded by 80% penetration on external side and head.
Electric system
24 Electrical wiring & Lightings systems, LED lights.
Accessories and Fittings
1. 1set of spare tyre.
2. 1 set of fire extinguisher.
3. 1 set of standard tools in toolbox.


3. Photos for reference

4. Certificates of our trailers


5. Shipping reference (by container, bulk cargo ship or roro ship)

6. Mark:
This series Fuel Tanker semi trailers are mainly used in liquid, especially fuel, crude oil transportation.
The volume varies widely from 10 cube meters to 70 cube meters, we can manufacture it according to your needs.
The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
The tanker inside can be double or other numbers isolated compartments with discharging valves and pipes.
