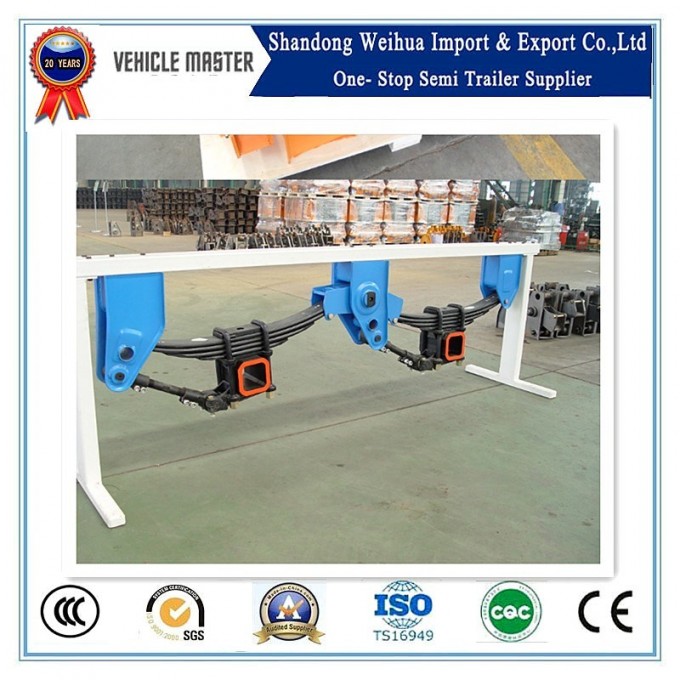

Hot Selling 11 Tons 2axle American Type Light Duty Suspension

2 Axle American Type Light Duty Suspension Features
*Reliable proven design.
*Australia ADR certificate approved.
*Good durability to make sure the longtime usage.
*High strength material for long lifetime and heavier loading ability.
*2-axle and 3-axle suspension are available.
*Different Loading Capacity for different requirements
*Bogie according to special needs
*Factory already passed the ISOand TS16949 standard authentication of international quality control system, and strictly managing the producing under these system.







Specification:

* front/middle/rear hanger

* sizeof leaf spring :75 x 13 x10 pcs

* suitable for round or square beam

* spring thickness:13mm

* with front, middle and rear brackets

* thickness: hangers 5mm thick, balance 8mm ( as required)

* material:Q345B

* colour: orange, black, blue or as required

* Package: as the following pictures showed by wooden pallet.



Suspension Drawing and Detail Technical data:

Model	A	L1	L2	L3	L4	L5	H	Loadcapacity
	mm	mm	mm	mm	mm	mm	mm	Kgs
WH11.2/P130/AR5/10	440	483	1310	483	1138	1138	130	11,000*2
WH11.2/P150/AR5/10	460	483	1310	483	1138	1138	150	11,000*2
WH11.2/P180/AR5/10	490	483	1310	483	1138	1138	180	11,000*2
WH11.2/P210/AR5/10	520	483	1310	483	1138	1138	210	11,000*2
WH11.2/P230/AR5/10	540	483	1310	483	1138	1138	230	11,000*2

Packing and Loading Pictures:
