Mechanical Suspension American Type of Truck Trailer for Sale

We have five types of suspension:
American type suspension
Germany type suspension
Casting type suspension
Rigid /Walking beam suspension
Air suspension

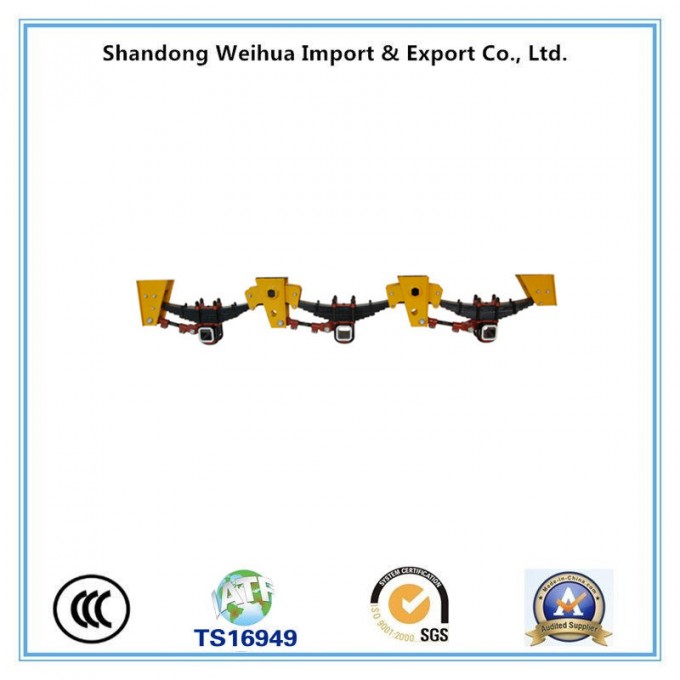

American typemechanical Suspension ( Both overslung type and underslung type)

1)Hanger thickness:4mm,4.5mm, 6mm, 8mm or 10mm
2) King pin: 50mm, 60mm, 70mm
3) Suspension height: 130-350mm
4) Color: black/ red/orange/ by customer
5) Material: Q235B
6) Spring width: 75mm, 90mm, 100mm, 120mm
7) Axle spacing: 1310mm, 1360mm
8) No. Of spring piece/spring quantity is optional
9) Axle load is optional
10) Size: design as your requirement
11) Max payload: 55T for complete suspension
12) Axle beam: square/ round
13) Fishing: painting or galvanizing
14) Packing details: wooden tray or other ways according to your requirements
importANT REMARK:we can produce fully according with your samples and drawings.

Suspensionmodel	HeightofTowingplate(mm)	A1(MM)	B1(MM)	A2(MM)	B2(MM)	A3(MM)	B3(MM)	H(MM)	Capacity(kg)
WH03-110	1110	399	369	390	360	381	351	115	16,000*3
WH03-130	1130	419	389	410	380	401	371	135	16,000*3
WH03-150	1150	439	409	430	400	421	391	155	16,000*3
WH03-180	1180	469	439	460	430	451	421	185	16,000*3
WH03-210	1210	499	469	490	460	481	451	215	16,000*3
WH03-230	1230	519	489	510	480	501	471	235	16,000*3
WH03-250	1250	539	509	530	500	521	491	255	16,000*3
WH03-270	1270	559	529	550	520	541	511	275	16,000*3
WH03-300	1300	589	559	580	550	571	541	305	16,000*3
WH03-320	1320	609	579	600	570	591	561	325	16,000*3
WH03-350	1350	639	609	630	600	621	591	355	16,000*3

Characteristics:
1. Special heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability.
3. High performance pmium non-asbestos brake linings, estend serbice life.
4. Easy for ABS installation.
5. Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety.
6. New tight fit hub cap habe Orings, high property for sealing.
7. Grease lubricant is supplied by Mobil that lengthens the time of free maintenance.
8. Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims.

Scope of our business:
1. Lowbed Semi trailer, tanker trailer, container semi trailer, stake semi trailer, side wall fence semi trailer, dumper /tipper semi trailer, heavy duty hidralic moudlar semi trailer, heavy duty fan blade transport semi trailer and so on.
2 Axles (German type axle, English type axle, American type axle, Spoke axle, ZM axle, Agriculture axle, Half axle, Axle without brake)
3. Suspension (Bogie suspension, One point suspension, Rigid suspension, Spoke suspension, Machinery suspension)
4. Landing gear
5. Fifth wheel (2'' 3.5'')
6. King pin (2'' 3.5'')
7. Other axles and related parts (Low bed axle, hub, rims, spring, drum...)
