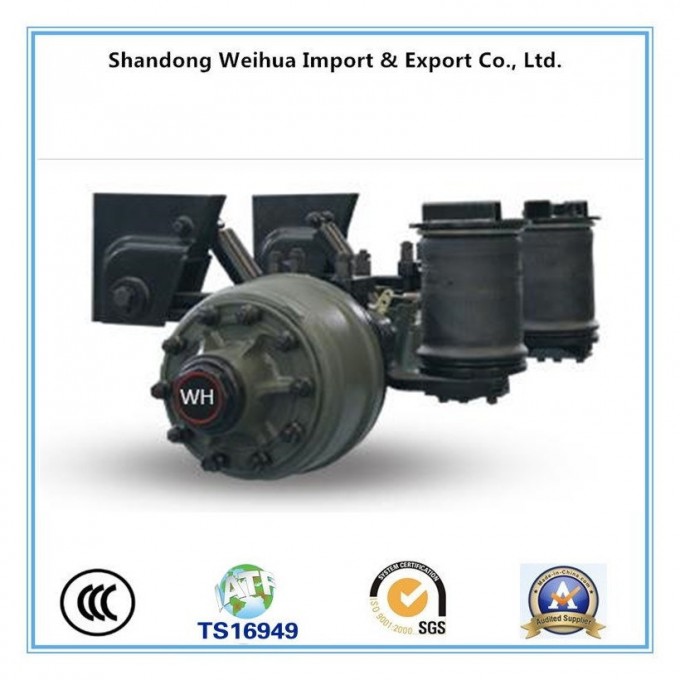

11ton Germany Type Suspension for Semi Trailer / Truck Trailer

1. Specification:

Model	Axlelift	Ratedload(KG)	AxleBeam(mm)	Leafspring(mm)	Airbagspec.	L1(mm)	L2(mm)	H1(mm)	H2(mm)	H3(mm)
WHMA9-1	NO	9000	120 (square)	1-100x50	350/300	500	380	268	210	318
WHMA9-2	NO	9000	120 (square)	1-100x50	350/300	500	380	268	426	318
WHMA9-3	YES	9000	120 (square)	1-100x50	350/300,260	500	380	268	210	318
WHMA9-4	YES	9000	120 (square)	1-100x50	350/300,260	500	380	268	426	318
WHMA9-5	NO	9000	Ø127	1-100x50	350/300	500	380	268	210	318
WHMA9-6	NO	9000	Ø127	1-100x50	350/300	500	380	268	426	318
WHMA9-7	YES	9000	Ø127	1-100x50	350/300,260	500	380	268	210	318
WHMA9-8	YES	9000	Ø127	1-100x50	350/300,260	500	380	268	426	318
WHMA11-1	YES	11000	150 (square)	2-100x40	350,260	550	385	268	444	423
WHMA11-2	NO	11000	150 (square)	2-100x40	350	550	385	268	444	423
WHMA11-3	YES	11000	Ø127	2-100x40	350,260	550	385	268	422	423
WHMA11-4	NO	11000	Ø127	2-100x40	350	550	385	268	422	423

2. Production feature:

-- Special heat-treat, low-alloy steel axle beam, it has the virtues of good synthetic performance, strong load ability and lower self weight.
-- High quality alloy solid inserted spindle, through wholly heat treatment, provide superior fatigue capability.
-- High performance pmium non-asbestos brake linings, extend service life.
-- Easy for ABS installation.
-- Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety.
-- New tight fit hub cap habe Orings, high property for sealing.
--Grease lubricant is supplied by Mobil that lengthens the time of free maintenance.
--Full range of stud fixing such as ISO, TS16949, it can meet the requirements of various wheel rims.

3.Scope of our business:
1. Lowbed Semi trailer, tanker trailer, container semi trailer, stake semi trailer, side wall fence semi trailer, dumper /tipper semi trailer, heavy duty hydralic modular semi trailer, heavy duty fan blade transport semi trailer and so on.
2 Axles (German type axle, English type axle, American type axle, Spoke axle, ZM axle, Agriculture axle, Half axle, Axle without brake)
3. Suspension (Bogie suspension, One point suspension, Rigid suspension, Spoke suspension, Machinery suspension)
4. Landing gear
5. Fifth wheel (2'' 3.5'')
6. King pin (2'' 3.5'')
7. Other axles and related parts (Low bed axle, hub, rims, spring, drum...)

Whyus?

1- Since 1996, with 20 years experience
2-2 years guaranteeforallthe beamoftrailers
3-Reliability, safetyand economic transportsolutions.
4-Custom productionaccordingtodemand
5-Strictqualitycontrol,out-standingqualityassurance
6-Stock trailersandimmediatedelivery
7-After-saleserviceavailable, emailwillbereplywithin8hours.

OurAdvantage

1-Withwellexperiencedsemitrailerproductioncompanytoofferhighqualityandcompetitivepricessemi
trailertoourworldwidevaluablecustomers.
2-Anprofessionalteamwhichisexperiencedwithinternationalmarket hasstrongtechnicalcapabilitytocustomizedcosteffective.
3-Sellwellintheinternationalmarkets,suchasAfricanmarket(Sudan,Angola,Zimbabwe,Liberia,Djibouti,Congo,Kenya,Ghanaect.),MiddleEast,SouthAsiaandSouth-Americamarket.
4-2 years guaranteeforallthe beamoftrailers,timelyshipment

QualityControl

1-For eachtrailer,weshoulddothetestingandinspectthequality.
2-Wegiveinspectioncertificateaccordingtocustomerdemandforeverytrailer givenbyanindependentthirdpartycertificationcompany.
3- We provide out-standing quality assurance
4-Noanyqualitycomplaintsfor9years.

PerfectService&Support

1-Wheneverreliability,safetyandeconomicisneeded,thereis asolution.Weihuaprovidesthebestpossiblequalitysemitrailerstoworldwidevaluablecustomers.
2-Withafullrangeoftrailerspatepartssupport,sparepartssupplyingwithin3days
3-Seriouslyconsidercustomer'srequirements,andwelcomedifferentcooperationmodes.
4-Provide professional trailer drawing
5- Considerate after-sales service & product maintenance

Advantage:

1.Creativedesignforyourownspecialtransportationprogram.
2.Hightensilesteelprovidesthestrongestperformanceofsemitrailer.
3.Automatic submerged are welding and straightening machines that make main beam.
4.Onecoatblastingplustwocoatspolyesterpainting.
5.StandardandBrandsofsemitrailerpart

Packing & Shipping

1. We willsparky waxfor the trailer before shipment against saltwater corrosion.
2. Regarding to the shipping method, you could choose which one is better for you, bycontainer vessel, Ro-Ro vesselor by bulk vessel.
3. We providelowest shipping freightbased on the long-term cooperation relationship with ship agency


Please feel free to contact and looking forward to your visiting factory.Weihua will provide you with an individual concept !
